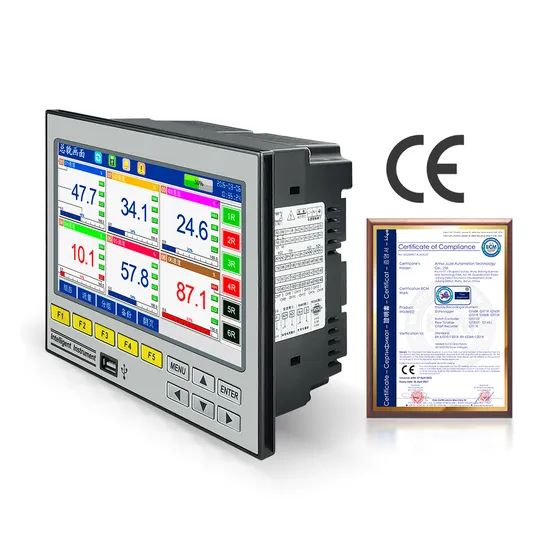

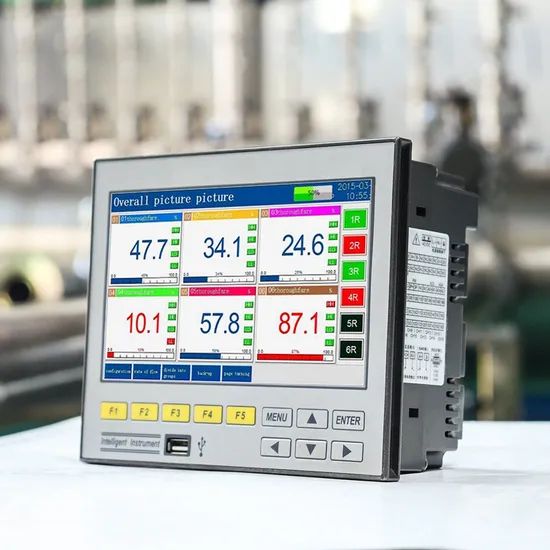

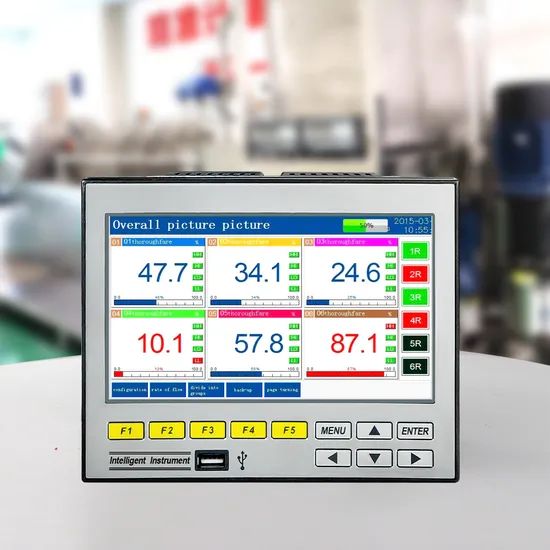

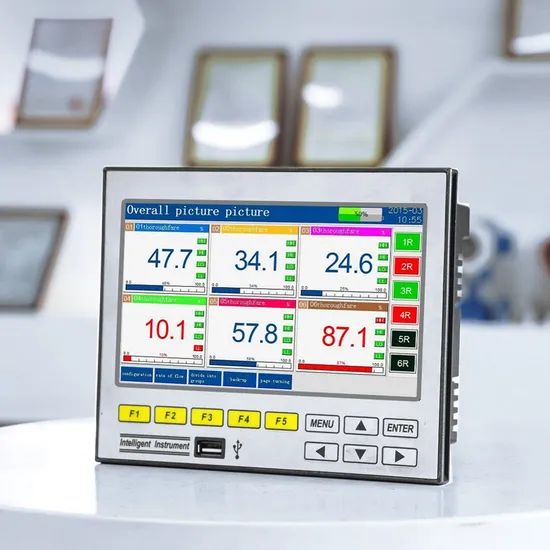

Factory Direct Temperature Data Loggers Thermal Resistor Graph Recorder Data Logger Universal with 6-Way Relay out
1-29 Piece
$38030-79 Piece
$36080 Piece
$350Product information
High-quality Factory Direct Temperature Data Loggers Thermal Resistor Graph Recorder Data Logger Universal with 6-Way Relay out supplied by Wuhu Jujie International Trade Co., LTD. Bulk wholesale pricing ranges from $350 to $380 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Measurement Range:
0-9999
Accuracy:
0.2%Fs
Channels:
1-16
Power Supply:
100~240VAC
Specification:
2Kg
Production Capacity:
5000 Set/Sets Per Month
Relay Out:
6 Channels
Feed:
6 Channels
Specifications
Measurement Range:
0-9999
Accuracy:
0.2%Fs
Channels:
1-16
Power Supply:
100~240VAC
Specification:
2Kg
Production Capacity:
5000 Set/Sets Per Month
Relay Out:
6 Channels
Feed:
6 Channels
SD Card Memory Size:
64 / 128 / 1922 / 248MB
Screen Size:
7-Inch
HS Code:
9026100000
Origin:
Anhui, China
Certification:
CE, ISO
Transport Package:
Carton Package/Wooden Cases
Customized:
Customized
Measuring Medium:
Date
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Model NO.:
GT71R
Model:
Gt71r
IP Rating:
IP65
Trademark:
JUJIE
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Type:
Paperless Logger
Output:
RS485
Output Signal:
RS485 Optional
Port Of Loading:
Wuhu, Shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-12-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW
Port Of Loading:
Wuhu, Shanghai
Certificates:
00, Calibration patent, CE, Electromagnetic flowmeter system, Flow difference data analysis system, Flow difference patent, Heat dissipation patent, ISO14001, ISO45001, ISO9001, MIC, Quantitative control system, SGS, Turbine flow meter system, Turbine patent, Ultrasonic patent, Water-cooling flow meter system
Product descriptions from the supplier
| Screen | 7-inch true-color TFT LCD (800m 480 dot matrix) |
| Accuracy | Real time display: ±0.2% F.S. Recall accuracy: ±0.2% F.S. (note: thermocouple should remove cold end error) |
| Processor | High performance arm Cortex-M3 32 bit RISC core can be used to collect, record, display and alarm multiple signals at the same time |
| Memory module | Large capacity parallel NAND FLASH flash chips are used to store historical data, and serial FRAM storage chips are used to store key parameters such as configuration parameters |
Input function |

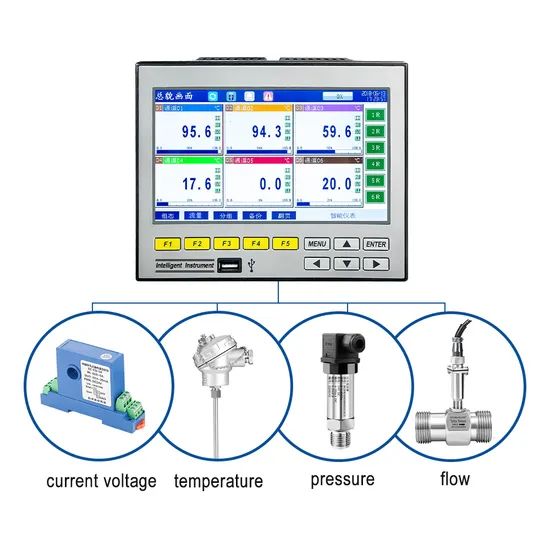

Input specification: fully isolated universal input, maximum support 16 analog input |
| Voltage input: 0-5V, 1-5V, 0-20mV, 0-100mV | |
| Resistor input: Res (0 ~ 400 Ω) | |
| Thermal resistance: PT100, Cu50, G53, Cu100, BA1, BA2 (three-wire resistance balance, lead resistance < 10 Ω) | |
| Thermocouple:S,B,K,T,R,E,N,J | |
| Radiation pyrometer:F1,F2 | |
| Tungsten rhenium: WRe3-25 WRe5-26 | |
| Current input: 0-10mAn 4-20mAn 0-20mA | |
output function |
Distribution output: up to 3 sets of transmitters are supported for isolated distribution 24VDC, each group of distribution ≤ 60mA, support other specifications of isolated distribution (e.g. 12VDC / 5VDC distribution output) |
| Transmission output: support up to 4 channels standard current output, load capacity 750 Ω (maximum), convenient display instrument or DCS / PLC acquisition, achieve long distance signal transmission | |
| Relay alarm output: up to 6 relay alarm output, contact capacity 1A@ 250VAC / 1A@ 30VDC (maximum contact capacity customizable), can be configured upper limit, lower limit alarm. | |
Communication printin |
Communication interface: providing RS232C and RS485 communication interfaces for users to choose from, supporting the use of RS232C and RS485at the same time, supporting the use of RS232C and RS232C at the same time, supporting Modbus RTU protocol, baud rates- (1200N48009600 / 19200 / 38400/ 57600) |
| Print interface: RS232C direct connection to micro printer, baud rate 1200 | |
Recording function |
Recording capacity: 64 / 128 / 1922 / 248MB (flash capacity optional); |
| Recording interval: 1 to 240 seconds, divided into 11 files:1 / 2, 4, 4, 8, 12, 24, 36, 60, 120, 180, 240 seconds. | |
Data transfer |
Data backup and storage: support USB 1.1 USB 2.0 USB disk, support 1G to 32GB U disk for data transfer, strong compatibility, compatible with most of the U disk on the market(industrial version recommended) |
| Power Supply Voltage | Power supply: 100 / 240VAC (rated 220VAC) 50 / 60HZ AC power supply, 24VDC (18VDC-36VDC) DC power supply, 12VDC (9VDC-18VDC) DC power supply (DC power supply to be indicated when ordering) |
defencive function |
Power off protection: built-in memory protection parameters and historical data, permanent storage after power off |
| Clock protection: integrated hardware clock, can also run accurately after power down | |
| Working environment [prohibited from working in flammable, corrosive] | Working temperature: 0 ºC 50 ºC (avoid direct sunlight) |
| Relative humidity: 0 / 85R.H (without condensation) | |
| Altitude: < 2000m (other than special specifications) | |
| Instrument net weight | Net weight: ≤ 1.5 kg |
