Factory Price Automatic EPS Expandable Polystyrene Foam Vacuum Forming Block Moulding Machine
1-2 Set
$36,0003-4 Set
$34,0005 Set
$30,000Product information
High-quality Factory Price Automatic EPS Expandable Polystyrene Foam Vacuum Forming Block Moulding Machine supplied by Hangzhou Epsole Technologies Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $36,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
150 Set / Year
Automation:
Automatic
Certification:
CE
Origin:
China
Computerized:
Computerized
Raw Material:
EPS
Trademark:
EPSOLE
Model NO.:
ESB200-800A/V
Specifications
Production Capacity:
150 Set / Year
Automation:
Automatic
Certification:
CE
Origin:
China
Computerized:
Computerized
Raw Material:
EPS
Trademark:
EPSOLE
Model NO.:
ESB200-800A/V
Trade Term:
FOB, CIF, CFR, EXW
Principle:
High-Pressure Air Type
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Port Of Loading:
Ningbo Port, Shanghai Port
Transport Package:
Ocean Shipping
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2014-04-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
16
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE Certificate
Product descriptions from the supplier

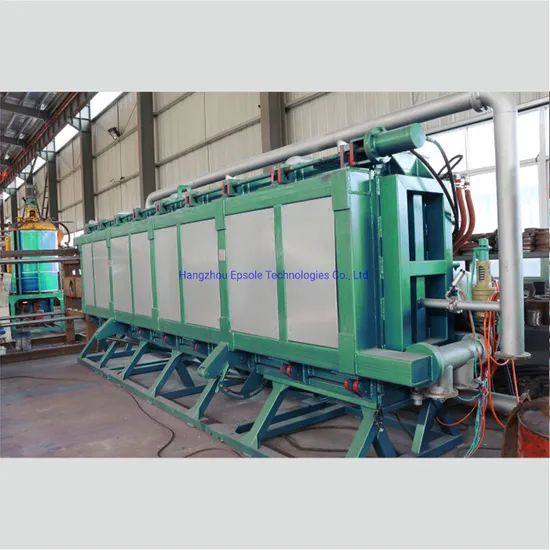

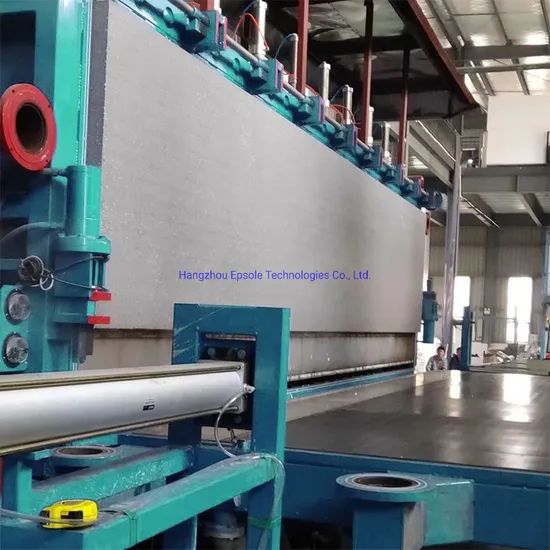

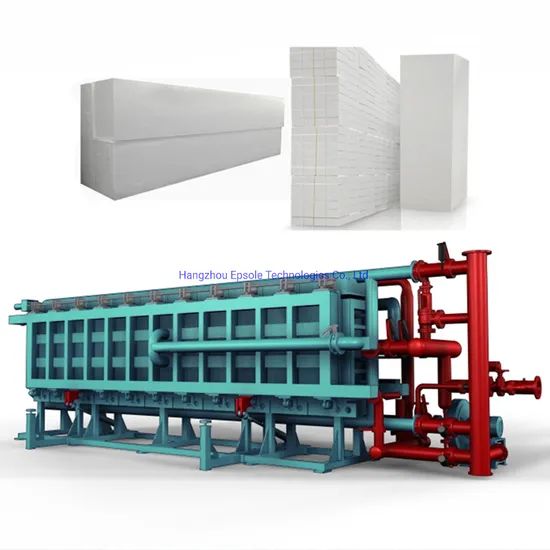

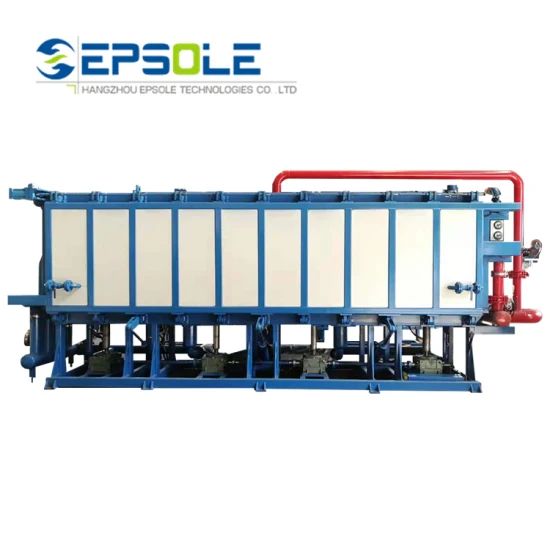

Our high-quality EPS block molding machine is designed to meet the demands of the modern industrial market. With its advanced technology and reliable performance, this machine offers exceptional efficiency and precision in producing EPS blocks for various applications.
The EPS block molding machine features a fully automatic operation system, which ensures consistent quality and yields high production rates.
The machine is equipped with a PLC control system, which allows for easy and convenient operation, as well as precise control of the production process.
One of the key highlights of this machine is its high energy efficiency. The machine is designed to minimize energy consumption, reducing operating costs and minimizing environmental impact.
Additionally, the machine is designed with safety in mind, featuring a range of safety devices and systems to ensure safe and reliable operation.
The machine is highly customizable, with a range of options available to meet specific customer needs. From different block sizes and shapes to customized control systems, our EPS block molding machine can be tailored to meet specific production requirements.
Our EPS block molding machine is ideal for a range of applications, including packaging, construction, and insulation.

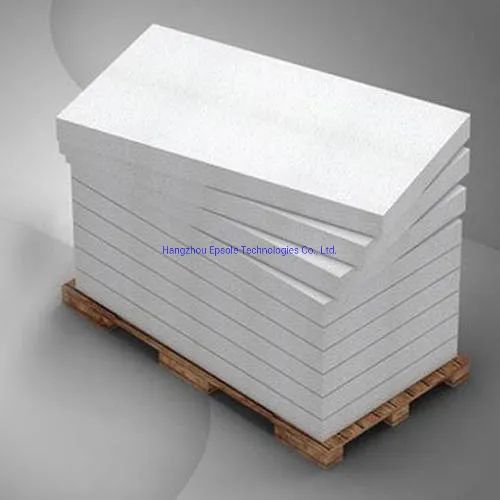

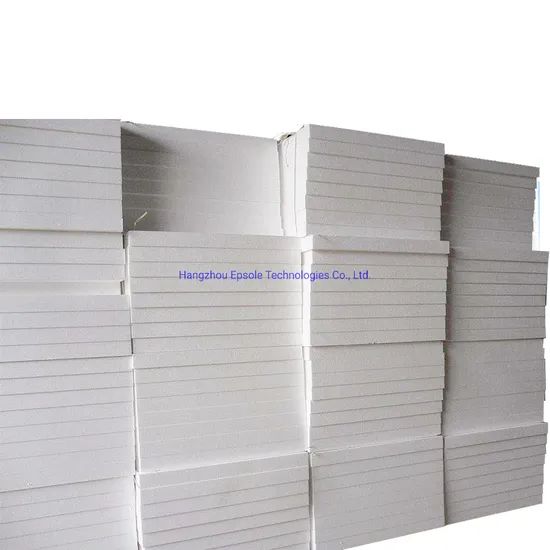

The machine produces high-quality EPS blocks that are lightweight, durable, and provide excellent thermal insulation properties.
In addition to its exceptional performance, our EPS block molding machine is also highly reliable and requires minimal maintenance. With its robust construction and advanced components, the machine is built to last and can provide years of trouble-free operation.
Overall, our EPS block molding machine is an ideal choice for businesses looking to improve their production efficiency and reduce operating costs.
With its advanced technology, energy efficiency, and customizable options, this machine is a reliable and high-performance solution for producing high-quality EPS blocks for a range of industrial applications.
| Item | ESB200V | ESB200A | ESB400V | ESB400A | ESB600V | ESB600A | |
| Mould Cavity size | 2040×1240×1030(mm) | 2040×1240×630(mm) | 4100×1240×1030(mm) | 4080×1240×630(mm) | 6100×1240×1030(mm) | 6100×1240×630(mm) | |
| Block size | 2000×1200×1000(mm) | 2000×1200×600(mm) | 4000×1200×1000(mm) | 4000×1200×600(mm) | 6000×1200×1000(mm) | 6000×1200×600(mm) | |
| Steam | Entry | DN100 | DN100 | DN150 | DN125 | DN150 | DN150 |
| Consumption | 30-50kg/cycle | 20-30kg/cycle | 60-90kg/cycle | 45-55kg/cycle | 130-150kg/cycle | 60-70kg/cycle | |
| Pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | |
| compressed Air | Entry | DN40 | DN40 | DN40 | DN40 | DN200 | DN40 |
| Consumption | 1.5-2m3/cycle | 1-1.5m3/cycle | 2-2.5m3m3/cycle | 1.5-2m3/cycle | 120-170m3/cycle | 120-170m3/cycle | |
| Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
| Cooling Water | Entry | DN40 | DN40 | DN40 | |||
| Consumption | 0.2-0.4m3/cycle | 0.6-0.8m3/cycle | 2.5-3m3/cycle | ||||
| Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | ||||
| Drainage | Vacuum Drain | 125mm | 125mm | 125mm | |||
| Steam Vent | 150mm | 125mm | 200mm | 200mm | 250mm | 200mm | |
| Condensate | 100mm | 125mm | 100mm | 150mm | 100mm | 150mm | |
| Blower Outlet | 125mm | 150mm | 150mm | ||||
| Throughput | 15kg/m3 | 5min/cycle | 5-12min/cycle | 7min/cycle | 7-18min/cycle | 8min/cycle | 8-18min/cycle |
| connected load | 20.5-24.5KW | 24.5-35.5KW | 13KW | 24.5-35.5KW | 13KW | ||
| Overall Dimension | (L×W×H) | 5700×4000×2850(mm) | 4000×2150×2120(mm) | 11000×4500×3000(mm) | 6040×2270×2250(mm) | 12600×3960×2906(mm) | 8100×2500×3100(mm) |
| Weight | 6000kg | 4200kg | 12000kg | 8500kg | 15000kg | 9500kg | |
| Room Height Required | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm |
Triple safety protection device to ensure safe and reliable production process - All procedures are controlled by HMI & PLC, all parameters can be revised in HMI with easy operation
- Single door opening with two seal layer insure no steam leakage.
- State standard Q235B Profile steel are used for block mould frame.
- State standard LY12 aluminum is used for steam chamber, thickness 5mm
- Yuken brand hydraulic controls block ejection, open & close door, lock & unlock door.
- Special pipe system reduce steam consumption with fast cycle time.
Pressure gauges-(ISO Standard)
Buttery fly valves-(ISO Standard_
1. Q: Where is your company located? How can I visit there?
A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.
2. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
3. Q: What's the MOQ?
A: Our MOQ is 1 Set.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
6. Q: What's the delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
7. Q: What is the payment terms?
A: T/T, L/C, D/P at sight
8. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.
9. Q: What certificate do you have?
A: We have TUV, CCC, CE (EN71, EN14765), SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.
