Factory Price Electrical Part Original Automotive Connector Terminal
Pieces
Negotiable
Product information
High-quality Factory Price Electrical Part Original Automotive Connector Terminal supplied by Changhong Plastics Group Imperial Plastics Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100000PCS/Month
Transport Package:
10PCS/Polybag
HS Code:
8536900000
Interface Type:
AC-AC
Trademark:
CHS
Brand:
Chs
Trade Term:
FOB, CIF, CFR, EXW
Type:
Filter Electric Connector
Specifications
Production Capacity:
100000PCS/Month
Transport Package:
10PCS/Polybag
HS Code:
8536900000
Interface Type:
AC-AC
Trademark:
CHS
Brand:
Chs
Trade Term:
FOB, CIF, CFR, EXW
Type:
Filter Electric Connector
Production Process:
Injection Molding
Character:
Insulation
Payment Term:
LC, T/T
Shape:
Rectangle
Connection Mode:
Screw-on
Contact Termination Form:
Screws Fixed
Port Of Loading:
Shanghai Port
Specification:
TBS-3A, 6A, 10A, 16A, 20A, 30A, 60A, 100A
Origin:
Wuhu China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-08-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
698
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, ISO9001:2015, ISO45001:2018
Product descriptions from the supplier
Material:
PE,Working Termperature:- 40ºC to 65ºC, short time is 80ºC.
PP,Working Termperature:- 30ºC to 90ºC, short time is 110ºC.
PA,Working Termperature:- 35ºC to 120ºC, short time is 140ºC.
Brass,Iron screw.
Voltage:250 - 450V
specification for U type temrinal blocks:
| Item NO. | L(mm) | W(mm) | H(mm) | A(mm) | B(mm) | Φ(mm) | Rated Voltage | Rated Current | Wire Range |
| TBS-3A | 90.3 | 15.5 | 11.5 | 6 | 7.7 | φ3.1 | 380V | 3A | 2.5-4.0mm² |
| TBS-6A | 110.5 | 15.5 | 12.4 | 6.5 | 9.5 | φ3.2 | 380V | 6A | 4.0-6.0mm² |
| TBS-10A | 116.7 | 20 | 14.9 | 8 | 10 | φ4 | 380V | 10A | 6.0-10.0mm² |
| TBS-16A | 136.8 | 21.5 | 16.7 | 10 | 11.7 | φ4.2 | 380V | 16A | 10.0-12.0mm² |
| TBS-20A | 153.5 | 24.5 | 17.4 | 11.5 | 13.2 | φ4.3 | 380V | 20A | 12.0-14.0mm² |
| TBS-30A | 164.6 | 25 | 18.8 | 12 | 14.1 | φ5.5 | 380V | 30A | 16mm² |
| TBS-60A | 187.6 | 29 | 23.5 | 12 | 16 | φ6.8 | 380V | 60A | 25mm² |
| TBS-80A | 205 | 33 | 27 | 15 | 17 | φ7.0 | 400V | 80A | 35mm² |
| TBS-100A | 250 | 46 | 31 | 22 | 21 | φ9.0 | 400V | 100A | 40mm² |
specification for H type temrinal blocks:
| Item NO. | L(mm) | W(mm) | H(mm) | A(mm) | B(mm) | Φ(mm) | Rated Voltage | Rated Current | Wire Range |
| TBS-3A | 90.3 | 15.5 | 12 | 6 | 7.8 | φ3.1 | 380V | 3A | 2.5-4.0mm² |
| TBS-6A | 111.4 | 15.5 | 13.5 | 6.5 | 9.6 | φ3.2 | 380V | 6A | 4.0-6.0mm² |
| TBS-10A | 116.4 | 20 | 15.3 | 8 | 10 | φ4 | 380V | 10A | 6.0-10.0mm² |
| TBS-16A | 133.8 | 22.7 | 16 | 10 | 11.5 | φ4.2 | 380V | 16A | 10.0-12.0mm² |
| TBS-20A | 152.2 | 24.6 | 16 | 11.5 | 13.2 | φ4.3 | 380V | 20A | 12.0-14.0mm² |
| TBS-30A | 162 | 25 | 19.3 | 12 | 13.9 | φ5.5 | 380V | 30A | 16mm² |
| TBS-60A | 184.6 | 28.6 | 23 | 12 | 15.8 | φ6.8 | 380V | 60A | 25mm² |

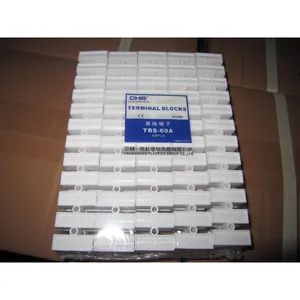

Packing details:
| NAME | ITEM | QTY/CTN | G.W. | N.W. | CTN SIZE |
| (KGS) | (KGS) | (CM) | |||
| TERMINAL BLOCKS | TBS-3A-4mm2 | 1000 | 19 | 18 | 41.5×21×24.5 |
| TBS-6A-6mm2 | 1000 | 24 | 23 | 42×25×28 | |
| TBS-10A-10mm2 | 500 | 18 | 17 | 39×28×24 | |
| TBS-16A-12mm2 | 500 | 26 | 25 | 43×30×27 | |
| TBS-20A-14mm2 | 500 | 27 | 26 | 43×30×27 | |
| TBS-30A-16mm2 | 300 | 25 | 24 | 54×28×22.5 | |
| TBS-60A-25mm2 | 200 | 24 | 23 | 41×32.5×24.5 | |
| TBS-80A-35mm2 | 100 | 16 | 15 | 55×21×28 | |
| TBS-100A-40mm2 | 50 | 18 | 17 | 54×25×20 |
why choose us:
30 years history specilized in wiring accessoies.
900 employees
exported to more then 100 countries/regions.
Date of Establishment: July 7, 1989. Registration Fund: RMB50, 500, 000
Floor Space: 150000m2 Building area: 230000m2 Employees: 1100(Mar, 15, 2012)
Main Product: cable ties, cable clips, terminal blocks,
insulated terminals, wire joints, tie mounts, spiral wrapping bands, wiring ducts, cable glands, and other wire accessories.
Approval Certificates:
In 1998, CHS was approved by ISO9001 International Quality System.
In 1999, Cable ties were certified by UL.
In 2000, Terminal blocks were awarded CE certificate.
In 2002, Cable glands got CE approval and passed IP 68 test by England UKAS Inspection Institution.
In 2004, Insulated terminals got the CE approval.
In 2005, Cable ties were awarded DNV certificate by Norway Ship Classification Society.
In 2006, CHS products passed SGS tests, conforming to the environment-protection standard of EU.
In 2007, CHS is chosen as "Chinese Famous Brand"
In 2008, Terminal blocks were certified by NF.
Wire ioints were certified by UL.
CHS was approved by ISO14001-Environmental Management system.
In 2009, CHS was named "Zhejiang Brand Product".
In 2010, CHS was named "Wenzhou Top Export Brand".
In 2010, CHS was named "Zhejiang Top Export Brand".
CHS was approved by OHSAS18001.
CHS was upgraded to group "Changhong Plastics Group".
CHS′s production base-Wuhu in Anhui now is put into operation formally
