Factory Price High Precision Ball Screw Slide

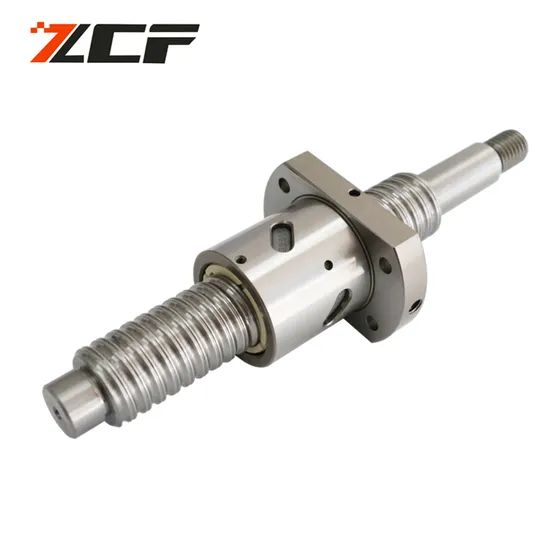

Factory Price High Precision Ball Screw Slide - Image 1

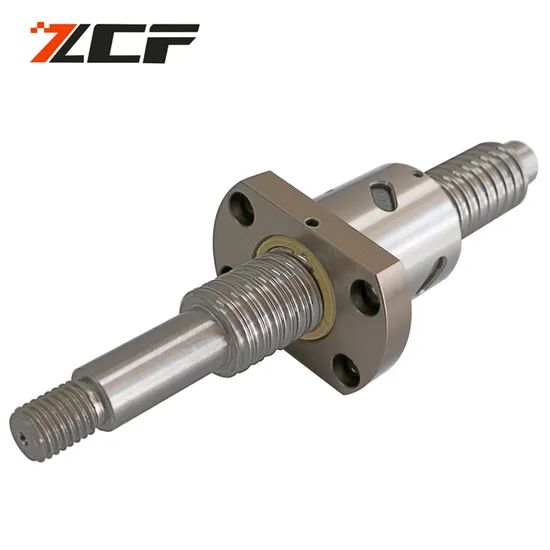

Factory Price High Precision Ball Screw Slide - Image 2

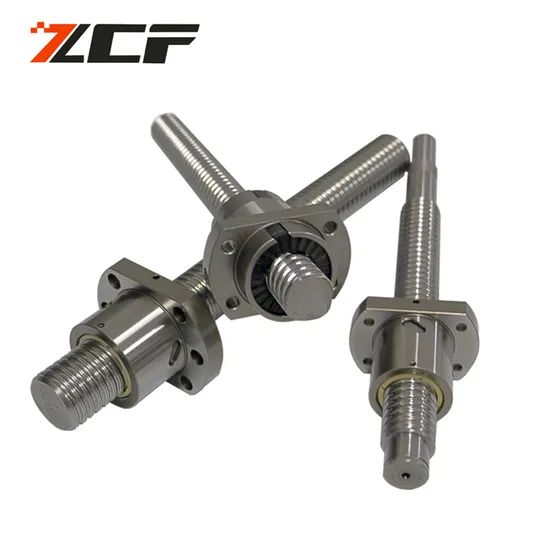

Factory Price High Precision Ball Screw Slide - Image 3

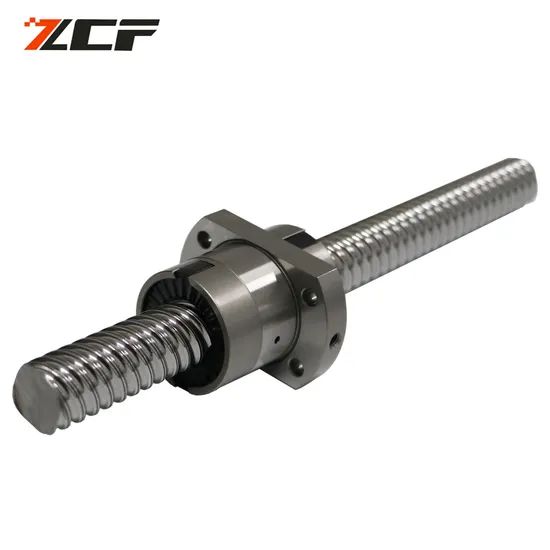

Factory Price High Precision Ball Screw Slide - Image 4

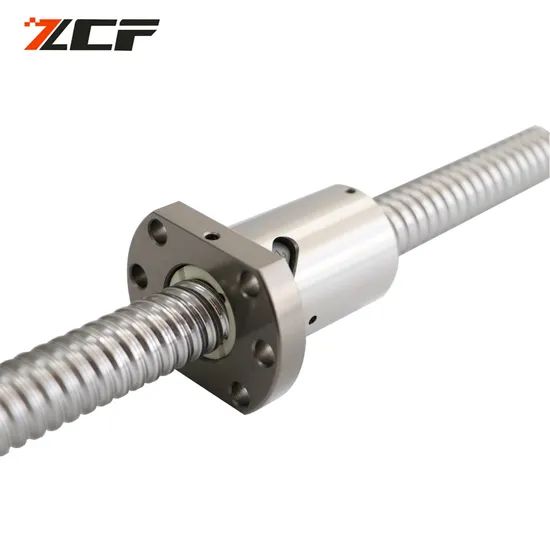

Factory Price High Precision Ball Screw Slide - Image 5

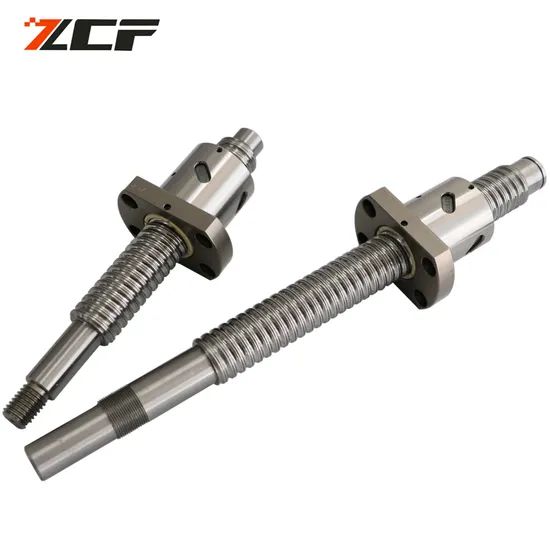

Factory Price High Precision Ball Screw Slide - Image 6
Factory Price High Precision Ball Screw Slide - Image 1
Factory Price High Precision Ball Screw Slide - Image 2
Factory Price High Precision Ball Screw Slide - Image 3
Factory Price High Precision Ball Screw Slide - Image 4
Factory Price High Precision Ball Screw Slide - Image 5
Factory Price High Precision Ball Screw Slide - Image 6
Share on

Pieces

Negotiable

Product information

High-quality Factory Price High Precision Ball Screw Slide supplied by Jiangsu Zcf Precision Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

C7:

0.05/300mm

Pitch:

04

Screw Diameter:

11-20mm

C0a:

1254

Diameter:

16

Rigidity:

26 Kgf/Um

Row:

4

Max Length:

4-6 M

Specifications

C7:

0.05/300mm

Pitch:

04

Screw Diameter:

11-20mm

C0a:

1254

Diameter:

16

Rigidity:

26 Kgf/Um

Row:

4

Max Length:

4-6 M

Rows Number:

4-Row

Specification:

4000*500*400 mm

Production Capacity:

500000 Meter Per Year

HS Code:

8479909090

Ca:

944

Accuracy:

C7

Precision:

C7

Origin:

China

Nut Type:

Circulator

Flange Type:

Double Edge Cut

Trade Term:

FOB, CIF, CFR

Model NO.:

FSI

Series:

Fsi

Ball Material:

Gcr15

Type:

Inner Loop

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

End Machining:

Optional

Nut Material:

S55c

Screw Material:

S55c

Port Of Loading:

Shanghai Port

Transport Package:

Wooden Case

Trademark:

ZCF

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Ball Screws; Bearing; Leadscrew; Linear Guides; Linear Robots

Year Established:

2022-09-28

Annual Revenue Amount:

Not specified

Numbers Of Employees:

5

Preferred Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR

Port Of Loading:

Shanghai Port

Certificates:

Patent

Product descriptions from the supplier


Product Description

HIGH QUALITY ROLLED BALL SCREW :

Factory Price High Precision Ball Screw Slide
Sketchs and dimensions

ROLLED BALL SCREW FSI SERIES SPECIFICATION
Factory Price High Precision Ball Screw Slide

Model no. d I Da Specification Ca(kgf) Coa(kgf) kgf/
μm
D A B L W H X Y Z Q n
FSI01605-4☆ 16 5 3.175 30 49 10 45 39 34 4.5 8 4.5 M6 1x4 1380 3052 33
FSI01610-3 10 3.175 34 58 10 57 45 34 5.5 9.5 5.5 M6 1x3 1103 2401 27
FSI02005-4☆ 20 5 3.175 34 57 11 51 45 40 5.5 9.5 5.5 M6 1x4 1551 3875 39
FSI02505-4☆ 25 5 3.175 40 63 11 51 51 46 5.5 9.5 5.5 M8 1x4 1724 4904 45
FSI02510-4 10 4.762 46 72 12 80 58 52 6.5 11 6.5 M6 1x4 2954 7295 51
FSI03205-4☆ 32 5 3.175 46 72 12 52 58 52 6.5 11 6.5 M8 1x4 1922 6343 52
FSI03210-4☆ 10 6.35 54 88 15 85 70 62 9 14 8.5 M8 1x4 4805 12208 62
FSI04005-4☆ 40 5 3.175 56 90 15 55 72 64 9 14 8.5 M8 1x4 2110 7988 59
FSI04010-4☆ 10 6.35 62 104 18 88 82 70 11 17.5 11 M8 1x4 5399 15500 72
FSI05010-4☆ 50 10 6.35 72 114 18 88 92 82 11 17.5 11 M8 1x4 6004 19614 83
FSI06310-4 63 10 6.35 85 131 22 93 107 95 14 20 13 M8 1x4 6719 25358 95
FSI08010-4 80 10 6.35 105 150 22 93 127 115 14 20 13 M8 1x4 7346 31953 109
FSI01604-4 16 4 2.381 30 49 10 45 39 34 4.5 8 4.5 M6 1x4 973 2406 32
FSI02004-4 20 4 2.381 34 57 11 46 45 40 5.5 9.5 5.5 M6 1x4 1066 2987 37
FSI0205T-4 5.08 3.175 34 57 11 51 45 40 5.5 9.5 5.5 M6 1x4 1550 3875 39
FSI02504-4 25 4 2.381 40 63 11 46 51 46 5.5 9.5 5.5 M6 1x4 1180 3795 43
FSI0255T-4 5.08 3.175 40 63 11 51 51 46 5.5 9.5 5.5 M8 1x4 1724 4903 45
FSI03204-4 32 4 2.381 46 72 12 47 58 52 6.5 11 6.5 M6 1x4 1296 4838 49

Detailed Photos

Factory Price High Precision Ball Screw Slide
Factory Price High Precision Ball Screw Slide
Factory Price High Precision Ball Screw Slide

Part no. definition

Factory Price High Precision Ball Screw SlideFactory Price High Precision Ball Screw Slide

Other series

FSU Series
Factory Price High Precision Ball Screw Slide

Model no. Specification
d I Da D A B L W H X Q n Ca(kgf) Coa(kgf) kgf/
μm
FSU01605-4☆ 16 5 3.175 28 48 10 45 38 40 5.5 M6 1x4 1380 3052 32
FSU01610-3 10 3.175 28 48 10 57 38 40 5.5 M6 1x3 1103 2401 26
FSU02005-4☆ 20 5 3.175 36 58 10 51 47 44 6.6 M6 1x4 1551 3875 39
FSU02505-4☆ 25 5 3.175 40 62 10 51 51 48 6.6 M6 1x4 1724 4904 45
FSU02510-4 10 4.762 40 62 12 80 51 48 6.6 M6 1x4 2954 7295 50
FSU03205-4☆ 32 5 3.175 50 80 12 52 65 62 9 M6 1x4 1922 6343 54
FSU03210-4☆ 10 6.35 50 80 12 85 65 62 9 M6 1x4 4805 12208 61
FSU04005-4☆ 40 5 3.175 63 93 14 55 78 70 9 M8 1x4 2110 7988 63
FSU04010-4☆ 10 6.35 63 93 14 88 78 70 9 M8 1x4 5399 15500 73
FSU05010-4☆ 50 10 6.35 75 110 16 88 93 85 11 M8 1x4 6004 19614 85
FSU06310-4 63 10 6.35 90 125 18 93 108 95 11 M8 1x4 6719 25358 99
FSU08010-4 80 10 6.35 105 145 20 93 125 110 13.5 M8 1x4 7346 31953 109
FSU01204-4 12 4 2.5 24 40 10 40 32 30 4.5   1x4 902 1884 26
FSU01604-4 16 4 2.381 28 48 10 40 38 40 5.5 M6 1x4 973 2406 32
FSU02004-4 20 4 2.381 36 58 10 42 47 44 6.6 M6 1x4 1066 2987 38
FSU02504-4 25 4 2.381 40 62 10 42 51 48 6.6 M6 1x4 1180 3795 43
FSU02506-4 6 3.969 40 62 10 54 51 48 6.6 M6 1x4 2318 6057 47
FSU02508-4 8 4.762 40 62 10 63 51 48 6.6 M6 1x4 2963 7313 49
FSU03204-4 32 4 2.381 50 80 12 44 65 62 9 M6 1x4 1296 4838 51
FSU03206-4 6 3.969 50 80 12 57 65 62 9 M6 1x4 2632 7979 57
FSU03208-4 8 4.762 50 80 12 65 65 62 9 M6 1x4 3387 9622 60
FSU04006-4 40 6 3.969 63 93 14 60 78 70 9 M6 1x4 2873 9913 66
FSU04008-4 8 4.762 63 93 14 67 78 70 9 M6 1x4 3712 11947 70
FSU06320-4 63 20 9.525 95 135 20 149 115 100 13.5 M8 1x4 11444 36653 112
FSU08020-4 80 20 9.525 125 165 25 154 145 130 13.5 M8 1x4 12911 47747 138
FSU10020-4 100 20 9.525 150 202 30 180 170 155 17.5 M8 1x4 14303 60698 162



FSY Series
Factory Price High Precision Ball Screw Slide
Model no. d I Da Specification Ca(kgf) Coa(kgf) kgf/
μm
D A E B L W H X Q n
FSY01616-3.6 16 16 2.778 32 53 10.1 10 45 42 34 4.5 M6 1.8x2 1073 2551 31
FSY02020-3.6 20 20 3.175 39 62 13 10 52 50 41 5.5 M6 1.8x2 1387 3515 37
FSY02525-3.6 25 25 3.969 47 74 15 12 64 60 49 6.6 M6 1.8x2 2074 5494 45
FSY03232-3.6 32 32 4.762 58 92 17 12 78 74 60 9 M6 1.8x2 3021 8690 58
FSY04040-3.6 40 40 6.35 73 114 19.5 15 99 93 75 11 M6 1.8x2 4831 14062 70
FSY05050-3.6 50 50 7.938 90 135 21.5 20 117 112 92 14 M6 1.8x2 7220 21974 86
Model no. d I Da Specification Ca(kgf) Coa(kgf) kgf/
μm
D A E B L W H X Q n
FSY01632-1.6 16 32 2.778 32 53 10.1 10 42.5 42 34 4.5 M6 0.8x2 493 1116 11
FSY02040-1.6 20 40 3.175 39 62 13 10 48 50 41 5.5 M6 0.8x2 653 1597 15
FSY02550-1.6 25 50 3.969 47 74 15 12 58 60 49 6.6 M6 0.8x2 976 2495 19
FSY03264-1.6 32 64 4.762 58 92 17 12 71 74 60 9 M6 0.8x2 1374 3571 22
FSY04080-1.6 40 80 6.35 73 114 19.5 15 90 93 75 11 M6 0.8x2 2273 6387 29
FSY050100-1.6 50 100 7.938 90 135 21.5 20 111 112 92 14 M6 0.8x2 3398 9980 35

Company Profile

Jiangsu ZCF Precision Technology Co.,Ltd.
is a professional manufacturer of linear guide, linear module and ball screw etc.she is located in Suzhou city,Jiangsu,China.The production base covers 33333 square meters and holds a building area of 16000 square meters at present. with over 10 years' effort of our whole team. and also trust and support from our respected customers. We are so lucky to become one famous brand in China, who make international standard products.we aim to serve customers world-widely.
