Factory Price Remote Control Intelligent High-Pressure Spray Cooling System

The spray system uses the high-pressure plunger pump to pressurize the filtered water through the high-pressure resistant pipeline and generate 5-10 μ m water droplets from the professional nozzle, which are distributed in the air. Through evaporation and heat absorption, when the temperature reaches more than 30 ºC, the atomization cooling can cool the small environment by 5-8 ºC in a few minutes to achieve the effect of small environment cooling.

The high-pressure mist cooling system consists of a synthetic host, stainless steel high-pressure pipelines, and nozzles; The synthesis host includes ABB motor, imported HK plunger pump, ultrafiltration water treatment system, PLC control system, water tank, etc; The system physically atomizes pure water into suspended particles below 10 μ m under a high pressure of 7.5MPa, and evaporates instantly under the action of a fan, thereby achieving a cooling effect of reducing the ambient temperature by 5-8 degrees Celsius. This technology has been widely applied in crowded outdoor waiting areas, parks, squares and other public environments, as well as breeding farms, with good cooling effects.

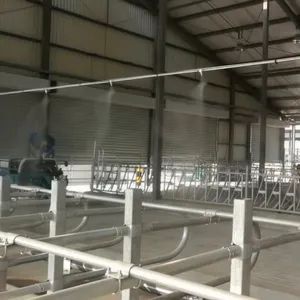

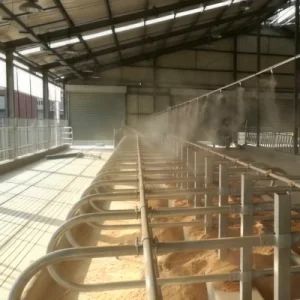

High pressure mist cooling system for cattle beds
Module	Image	Specification parameters

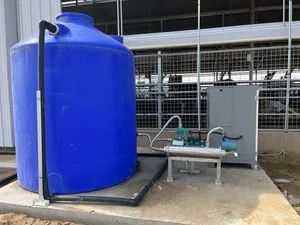

JG series fog cooling host		Core components: Italian HK pump, PLC, touch screen, ABB motor; Water tank capacity: 200L; Filtering system: sterile precision ultrafiltration water treatment technology 7.5kw/5.5kw/4kw/2.2kw
Stainless steel atomizing nozzle		SUS304, Aperture 0.15mm, flow rate: 0.05L/min
High pressure stainless steel pipe fittings		SUS304 material, food hygiene grade, DN20/DN16/DN10 pipe diameter. Wall thickness ≥ 2mm, pressure resistance ≥ 130 Kg/cm ²
Nozzle base		SUS304 material, food hygiene grade, welded with stainless steel at the same pipe fittings, with strong pressure resistance

Beijing Junguang Weiye Technology Co., Ltd. is the executive director unit of the Animal Husbandry Engineering Branch of the Chinese Society of Agricultural Engineering, and is a high-tech enterprise specialized in the design and construction of modern livestock farm, production and sales of breeding and manure treatment equipment. The company headquartered in Room 403, Building 9, No. 16 Chenguang East Road, Fangshan District, Beijing, the production base is located in Yixian Economic and Technological Development Zone, with an office area of 2700 square meters and a production workshop of 6500 square meters. We specializes in the production of dairy farm equipment: headlocks, barns,fans, cattle brushes, spray systems, manure scrapers, animal waste treatment systems, bedding material production systems and other livestock farm equipment.With the support of the government and customers, our breeding and manure treatment equipment sales network covers more than 10 provinces, municipalities and autonomous regions such as Shandong, Hebei, Henan, Shanxi, Heilongjiang, Inner Mongolia, Liaoning, Xinjiang, etc., and has won unanimous praise and trust from colleagues in the dairy farm industry with its low price and high quality.

The company focuses on the research and development and promotion of new products, with 24 national patented technologies, all products are in efficient, practical, durable, energy-saving and cost-saving research direction, the company will continue to improve product quality and service to meet the needs of the rapid development of dairy farm industry.
