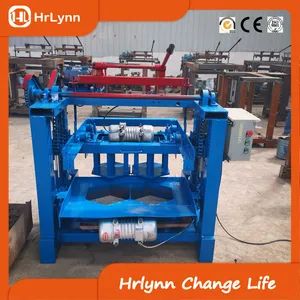

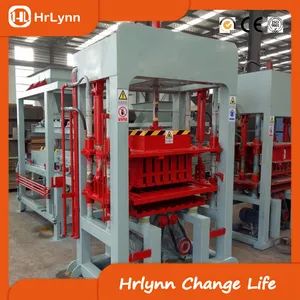

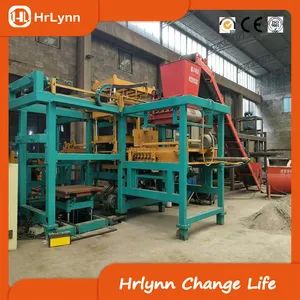

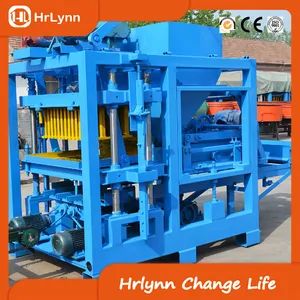

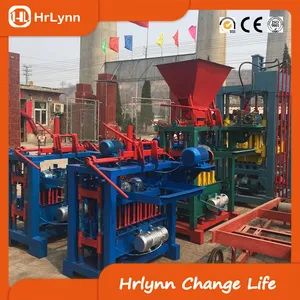

Factory Sells Advanced Automatic Brick Machine for Custom Concrete Blocks
Pieces
Negotiable
Product information
High-quality Factory Sells Advanced Automatic Brick Machine for Custom Concrete Blocks supplied by Qingdao Hrlynn Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Weight (Kg):
1500kg
Worker:
2-3 Person
HS Code:
3301240000
Voltage:
380V/220V/Customized
Production Capacity:
5000 Sets Per Year
Molding Cycle:
50s
Package Gross Weight:
750.000kg
Package Size:
780.00cm * 550.00cm * 660.00cm
Specifications
Weight (Kg):
1500kg
Worker:
2-3 Person
HS Code:
3301240000
Voltage:
380V/220V/Customized
Production Capacity:
5000 Sets Per Year
Molding Cycle:
50s
Package Gross Weight:
750.000kg
Package Size:
780.00cm * 550.00cm * 660.00cm
Pallet Size:
850*540*40
Specification:
850*550*30mm
Processing:
Brick Molding Machine
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Brick Raw Material:
Concrete
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Brick Size:
Customizable
Customized:
Customized
Key Selling Points:
Easy to Operate
Trade Term:
FOB, CIF, CFR, EXW
Raw Material:
Fly Ash Cement Sand
Model NO.:
HL-brick
Brick Type:
Hollow+Interlocking+Paver+Curbstone
Trademark:
Hrlynn
Type:
Hydraulic Shock
Payment Term:
LC, T/T, D/P
Machinery Test Report:
Provided
Automatic Grade:
Semiautomatic
Transport Package:
Standard Seaworthy Package
Payment Methods:
Support payments in USD
Port Of Loading:
qingdao port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-06-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
qingdao port
Certificates:
ISO
Product descriptions from the supplier
Product Description
Introduction
Introduction

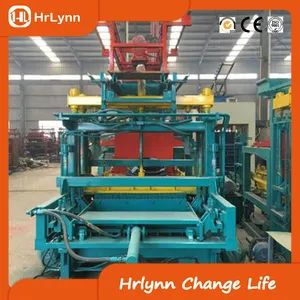

QT12-15 automatic block forming machine integrates cutting-edge domestic and global technologies, embodying the refined crystallization techniques and forward-thinking engineering from both China and Germany. Its user-focused design, rooted in two decades of manufacturing expertise and stringent operational standards, ensures superior quality, consistent performance, extended durability, strong output, and cost efficiency—hallmarks of the KAIDONG precision brick machine.
Products Details
1. Vibration system driven by four (Siemens) motors
Siemens motor system is adopted for main machine of brick making machine, and EU standard is adopted for special motor to ensure working stability.
The vibration chamber dimensions are tailored to the mold surface and specific brick design. A large chamber uses four-sided motor activation to maintain even vibration and efficiently transfer energy into the brick material. Unlike dual-motor setups, this four-directional system boosts vibration performance by 30–40%, resulting in higher brick density and greater structural strength.
2. Air bag vibration reduction system
It efficiently dampens vibrational noise, swiftly removes high-frequency oscillations from the machine due to leftover vibrational forces, thereby extending both machine and mold lifespan, and minimizing noise impact and disturbance for personnel.
3. High precision gear positioning system for mould
Precision positioning is achieved through four synchronized shafts (eight matched rack-and-pinion assemblies) that control the upper and lower mold movements. The gear racks are fabricated and finished using advanced German and Japanese precision equipment, maintaining perfect alignment across the front, back, left, and right edges of the mold during vertical motion—ensuring uniform cement brick height. Additionally, the friction between the upper and lower dies is minimized, significantly extending the mold’s operational lifespan.
4. High efficiency distribution system of rear crank arm
Inspired by German engineering, the feeding mechanism features dual crank arms, dual synchronized shafts, and a four-cylinder high-performance, precision-driven system to enhance operational stability and feeding consistency. This design boosts brick output while minimizing downtime and maintenance needs in the distribution unit.
5. PLC and touch screen are made of Siemens brand in Germany
Ensure the stability and long service life of the program.
6. Calyca brand valve of Taiwan or Yuken brand valve of Japan
Ensure the effective input and output of hydraulic system and long service life.
7. Mould
The dies are fabricated from domestically specified steel (meeting EU quality benchmarks). Through precise machining and high-temperature carburizing (exposed to 900 ºC followed by 200 ºC tempering), the hardness of the die achieves 55–63HRC (in contrast, standard steel typically reaches only 25–30HRC).
8. Strong multi axis lengthening and thickening vibration box
Based on the molding region (machine forming zone), select a 2 to 4 axis thickening and extending vibration unit to guarantee solid density in the final brick
9. Electric box switch system
The main control box adopts switches from brands such as France, Germany, or Switzerland to ensure stable operation and long service life.
Specification
|
QT12-15 Automatic Concrete Block Making Machine Technical Parameters
|
||||
|
1
|
Dimension of host machine
|
3870*2220*2850mm
|
||
|
2
|
Weight of host machine
|
12Tons
|
||
|
3
|
Molding area
|
1220*820mm
|
||
|
4
|
Water consumption
|
15Tons/Day
|
||
|
5
|
Workshop area
|
300square meter
|
||
|
6
|
Host machine power
|
66KW
|
||
|
7
|
Vibration force
|
100-120KN
|
||
|
8
|
Pallet size
|
1300*900*30/35mm
|
||
|
9
|
Voltage
|
220/380/415/440V(Customized)
|
||
|
10
|
Molding period
|
15-25Seconds
|
||
|
11
|
Vibration method
|
Hydraulic+Platform Vibration
|
||
|
12
|
Vibration frequency
|
2800- 5100Times/Minute
|
||
QT12-15 Block Making Machine
(1) Host unit dimensions: 3870×2220×2850mm
(2) Power consumption of main unit: 66KW
(3) Molding workspace: 1220×820mm
(4) Vibration output: 100–120KN
(5) Curing cycle: 15–25 seconds
(6) Pallet dimensions: 1300×900×30/35mm
(7) Total machine weight: 12 tons
(8) Drive system: Siemens
(9) Control system: Siemens
Concrete Mixer
(1) JS1000 dual-axis concrete mixing unit (2) Feed volume: 1600 liters (3) Discharge volume: 1000 liters (4) Mixing output: at least 50 cubic meters per hour (5) Largest aggregate dimension: up to 40/60 mm (6) Water delivery system: pump timer (7) Total mass: 8800 kg (8) Dimensions: 4000×2280×2650 mm
Stacker
(1)Model: KQ-12-S stacker (2)Power: 3KW (3)Mobile double pallet stack (4)Suitable for hollow block and pavers (5)Weight: 1.1Tons
Batching Machine
(1)PL1200 three hoppers (2)Hopper store capacity: 2500L*3 (3)Weight hopper capacity: 1200L (4)Production: 56m³/Hour (5)Batching accuracy: ±2% (6)General dimension: 8300*1950*3000mm (7)Weihgt: 3900KGs
