Factory Straight Side Unitized Frame Single Crank Power Press Machine for Mechanical Punching/Stamping Machine
1 Set
$39,000Product information
High-quality Factory Straight Side Unitized Frame Single Crank Power Press Machine for Mechanical Punching/Stamping Machine supplied by Wuxi Daya Technology Co., Ltd.. Bulk wholesale pricing is $39,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Punching Capacity:
110~630 Tons
Production Capacity:
200/Year
HS Code:
8462490000
Controlling Mode:
Artificial
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Type:
Closed Punch
Punch Shape:
Closed Punch
Specifications
Punching Capacity:
110~630 Tons
Production Capacity:
200/Year
HS Code:
8462490000
Controlling Mode:
Artificial
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Type:
Closed Punch
Punch Shape:
Closed Punch
Slider Drive Mechanism:
Crank Press
Core Component:
Crankshaft, Gearshaft, Motor, Sliderail
Colour:
Customizable
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Precision:
High Precision
Origin:
Jiangsu, China
Payment Term:
LC, T/T
Power Source:
Mechanical Drive
Condition:
New
Usage:
Pressing Metal Products
Test Report:
Provided
Trademark:
Qiao Sen
Specification:
STD
Model NO.:
STD
Slider Movement:
Single Action
Transport Package:
Standard Export Package
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-03-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
shanghai
Certificates:
CE Certificate of Press Machine, certificate of occupational health and safety management system certification, certificate of quality management system certification, Cooperation Brand, ISO Certificate of Press Machine, Patent, Patent2, Patent3, Patent4
Product descriptions from the supplier

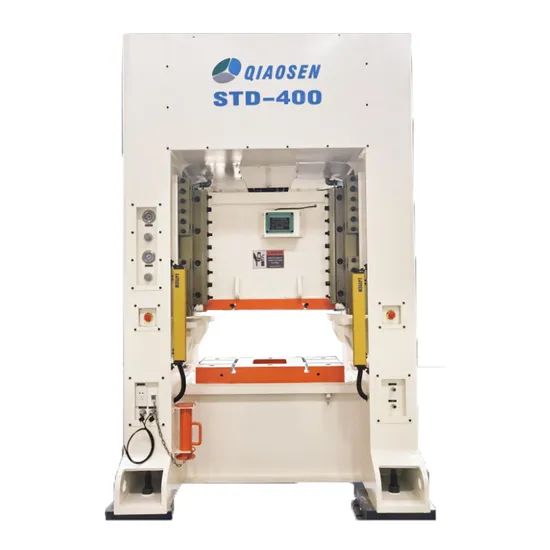

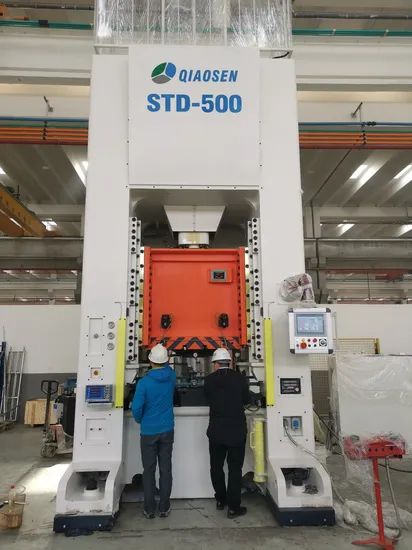

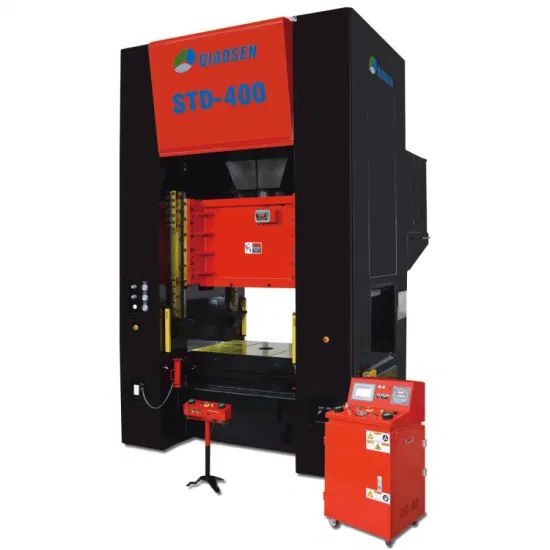

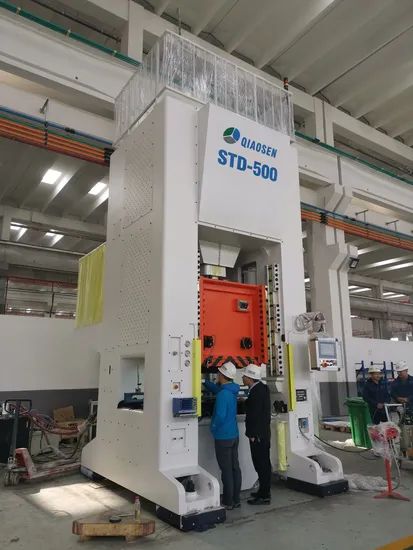

H-Frame Single Crank Presses (Unitized Frame) From 110 to 630 Tons
STD series is Straight Side Unitized Frame Single Crank(H-frame single point), this press are for general purpose stamping. Suitable for punching, forming, blanking, bending, drawing, and trimming. It is used for auto single stroke, hand in die operation, in die transfer, and robotic system applications.
STD series presses are produced by Qiaosen machinery, which built to meet or exceed JIS Class 1 accuracy standards . Qiaosen adopt high strength steel frames and Quenching&Grinding Process for Slide-Guide,which can make the press machine have minimizing deflection and high accuracy and provide increased tool life.
Forged 42CrMo alloy material crankshaft ,precision-machined gears and other drive train components are designed for smooth power transmission, quiet operation and long life. STD series presses are wet clutch system,It has longer service life of the clutch system. Adopting "8-Points Slide Guiding" ,its makes the presses has the characteristics higher accuracy and stronger stability and resistance to eccentric-load. Standard configuration "Re-Circulating Oil lubrication", which have better heat dissipation, faster speed, more energy efficient and more environmentally friendly.
Siemens main motor and siemens based control platform and user-friendly touch screen operation interface are standardized in all QIAOSEN's presses, it provides ease of operation and expandable capabilities. Easy to integration with other automation system. Other brands of control can be furnished upon request.
| Name | Unit | STD-110 | STD-160 | STD-200 | STD-250 | STD-300 | STD-400 | STD-500 | STD-630 | ||||||||
| Mode | S-type | H-type | S-type | H-type | S-type | H-type | S-type | H-type | S-type | H-type | S-type | H-type | S-type | H-type | S-type | H-type | |
| Press capacity | Ton | 110 | 160 | 200 | 250 | 300 | 400 | 500 | 630 | ||||||||
| Impact force location | mm | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 7 | 3.5 | 8 | 4 | 10 | 5 | 10 | 5 |
| slide strokes per minute | S.P.M | 30~60 | 60~90 | 20~50 | 40~70 | 25~50 | 40~80 | 20~45 | 30~60 | 20~40 | 30~60 | 20~40 | 30~60 | 20~40 | 30~60 | 20~40 | 30~60 |
| slide stroke length | mm | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 | 300 | 150 | 300 | 150 | 300 | 150 | 300 | 150 |
| Max mold height | mm | 350 | 300 | 450 | 400 | 450 | 400 | 450 | 400 | 550 | 450 | 550 | 450 | 600 | 650 | 650 | 550 |
| slide adjustment amount | mm | 80 | 100 | 120 | 120 | 150 | 150 | 150 | 150 | ||||||||
| slide Area | mm | 650*500 | 750*700 | 800*800 | 1000*900 | 1100*1000 | 1200*1000 | 1300*1200 | 1400*1200 | ||||||||
| Bolster Area | mm | 850*600 | 950*800 | 1000*900 | 1200*1000 | 1300*1100 | 1400*1100 | 1500*1300 | 1600*1300 | ||||||||
| Side opening | mm | 500*400 | 700*500 | 700*500 | 700*600 | 700*600 | 900*650 | 900*700 | 900*700 | ||||||||
| Main motor power | KW*P | 11*4 | 15*4 | 18.5*4 | 22*4 | 30*4 | 37*4 | 45*4 | 55*4 | ||||||||
| Air pressure | kg*cm² | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||
| Press accuracy grade | Grade | JIS 1 | JIS 1 | JIS 1 | JIS 1 | JIS 1 | JIS 1 | JIS 1 | JIS 1 | ||||||||
| Our company is ready to carry out research and improvement work at any time. Therefore, the size design characteristics specified in this catalogue can be changed without further notice. | |||||||||||||||||
| > | Hydraulic overload protection device | > | Air blowing device |
| > | Electric slider adjusting device | > | Mechanical shockproof feet |
| > | Variable frequency variable speed motor (adjustable speed) |
> | Mis-feeding detection device reserved interface |
| > | Electronic cam device | > | Maintenance tools and toolbox |
| > | Digital die height indicator | > | Main motor reversing device |
| > | Slider and stamping tools balance device | > | Light Curtain (Safety Guarding) |
| > | Rotating cam controller | > | Wet Clutch |
| > | Crankshaft angle indicator | > | Electric grease lubrication device |
| > | Electromagnetic counter | > | Touch screen (pre-break, pre-load) |
| > | Air source connector | > | Mobile electric control cabinet and console |
| > | Second degree falling protecting device | > | LED die lighting |
| > | Forced Thin Re-Circulating Oil Lubrication System Device | > | 8-Points Slide Guiding |
| > | Customization Per Customer Requirement | > | Foot Switch |
| > | Die Cushion | > | Electric Automatic Grease Lubrication Device |
| > | Quick Die Change System | > | Dry Clutch |
| > | Slide Knock Out Device | > | Anti-Vibration Isolator |
| > | Turnkey System with Coil Feedline and Automation System | > | Tonnage Monitor |
High strength steel frames
with small deformation
with small deformation
Slide rail adopt high frequency quenching technology,
its hardness could reach HRC45 degree or more.
Advantage: perfect wear resistance
its hardness could reach HRC45 degree or more.
Advantage: perfect wear resistance

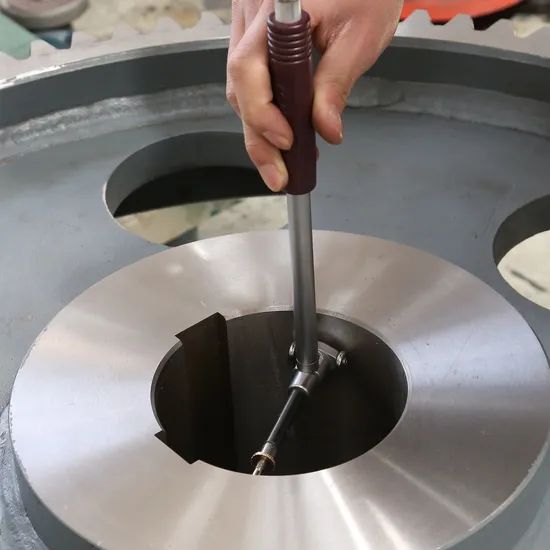

The gear shaft is made of high-strength alloy,
all tooth surfaces are treated with medium frequency
Advantage: small wear, high accuracy,long service life
all tooth surfaces are treated with medium frequency
Advantage: small wear, high accuracy,long service life
Crankshaft
Alloy 42 CrMo Material
Advantage: 1.3 times Stronger than 45 steel
Alloy 42 CrMo Material
Advantage: 1.3 times Stronger than 45 steel
Ball Seat
Japanese grade TM-3 sintered copper alloy
Advantage: less failure rate with sawtooth ball
Japanese grade TM-3 sintered copper alloy
Advantage: less failure rate with sawtooth ball
Features
Heavy one-piece steel frame,minimizing deflection,high accuracy.
Pneumatic wet clutch brake,longer service life.
8-points slide guiding, stronger stability and resistance to eccentric-load. Adopting Quenching&Grinding Process for Slide-Guide,which can make the press machine higher accuracy & low wear and provide increased tool life.
Forged 42CrMo alloy meaterial crankshaft, its strength is 1.3 times higher than that of #45 steel, and service life is longer.

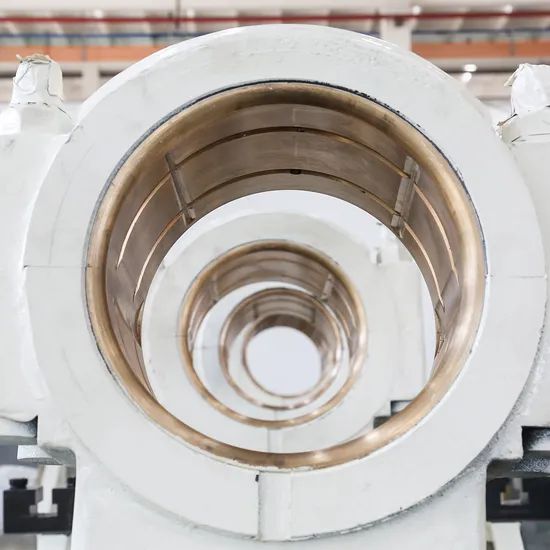

Copper sleeve is made of tin phosphorus bronze ZQSn10-1, which has a strength 1.5 times higher than that of ordinary BC6 brass.
Highly sensitive hydraulic overload protection device,effectively protect the service life of the presses and tools.
Forced thin re-circulating oil lubrication device, energy-saving, environmentally friendly, equipped with automatic alarm function, with better smoothness and heat dissipation, and better lubrication effect.
Built to JIS Class I accuracy standard.
Optional Die Cushion.
> Training:
Qiaosen provide complete training for our aboard customers through Internet so that operators, supervisors and maintenance team could know well of operation and maintenance as well as simply trouble shootings.
> Maintenance:
Qiaosen in-house maintenance department are responsible for internet inspection and suggestion immediately. If the remote guidance couldn't solve the issue, we will arrange the professional engineers to the door for maintenance by paid service.
