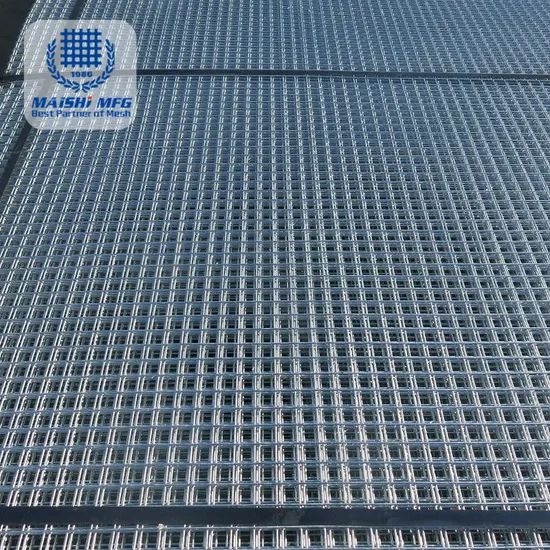

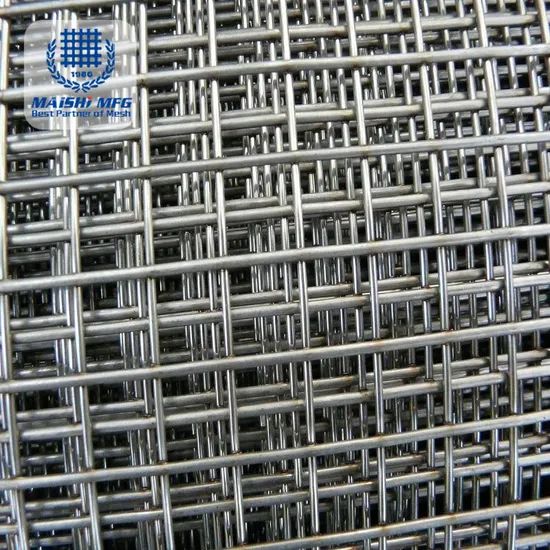

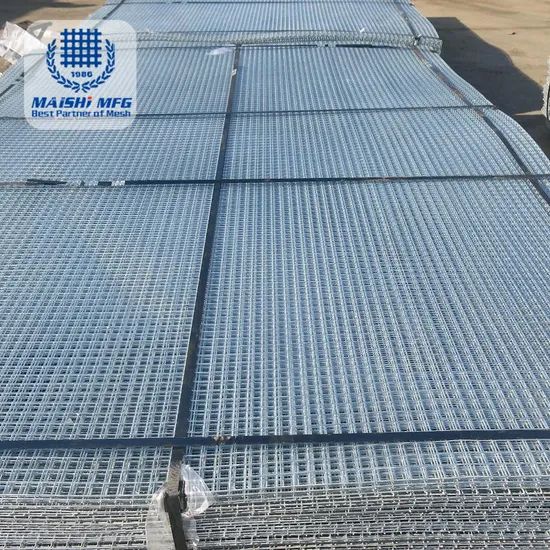

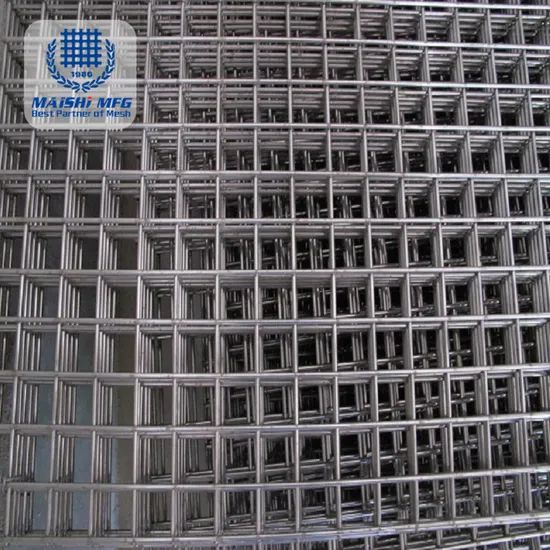

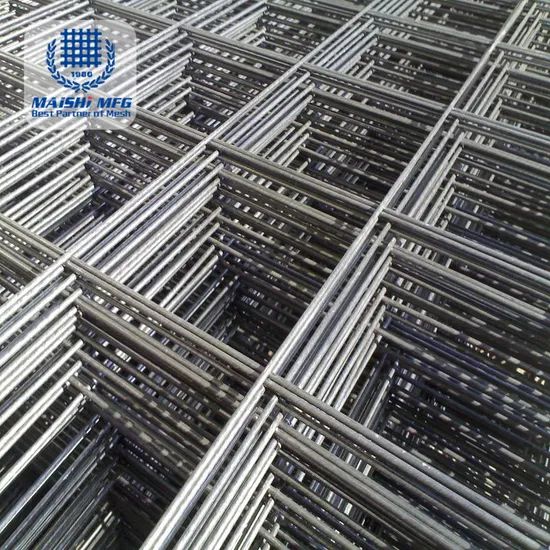

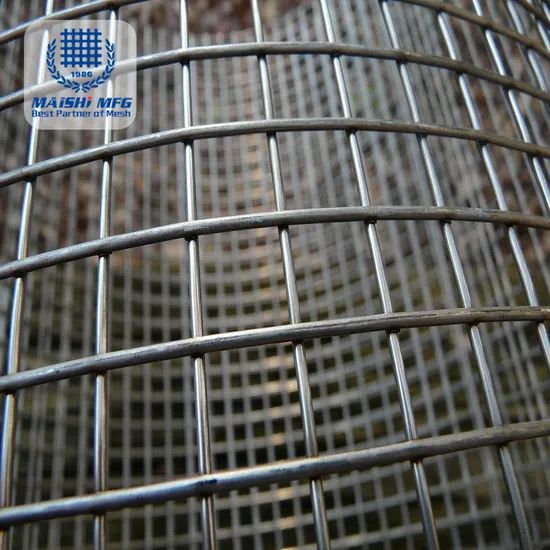

Factory Supply Galvanized Welded Wire Mesh Animal Cage

[Factory Supply Galvanized Welded Wire Mesh Animal Cage]

Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.

Machines used to produce the mesh must be with precise dimensional control. The product in considerable savings in time. labor and money.

Till now, we have 8 sets of large-scale automatic multiple spot welding machines, 7 sets of medium-sized multiple spot welding machines.
As for the production ability, we can produce 150-300 tons of welded wire mesh per month.(about 7-15 40' high containers)




As a leading welded wire mesh supplier and manufacturer,Hebei Maishi offers a full range of welded wire mesh for various applications. We supply the mesh from 1/2" to 6", customer requests can be customized. Welded wire mesh is generally constructed in rolls or flat panels designed by customers. Green plastic coating is widely used for fences and breeding. Custom wire openings are available upon request.

[ Production Process ]






[ Raw material ]----[ Testing ]----[ Straightening ]----[ Cutting ]----[ Welding ]----[ Inspection]----[ Finished Mesh ]----[ Packing ]----[ Loading]


[ Specifications ]

Roll or panel length can be negotiated, welcome to contact us for further information.
[ Quality Standard ]

Our products can meet below quality standards:
[ JG/T114-1997 ] National Standard
[ BS4483 ] British Standard
[ DIN488 ] German Standard
[ SIA16211 S550 ] Swiss Fabric Standard
[ NFA35-016 ] Franch Fabric Standard
[ onORM B4200/7 ] Australian Fabric Standard




[ Produce Knowledge ]
Normally the longitudinal wire and cross wire is the same, the edge wire is much thinner and the edge opening is small. Which makes it easier to weld sheets together.
If the mesh opening is 200mm, normally the edge opening is 100mm, then the whole opening will be 200mm when two sheets are welded together.
If no edge wire, the user has to tie two mesh sheets by wire.




Longitudinal wire dia. x longitudinal wire dia. x 0.00617 x mesh length x numbers of wire in width direction + cross wire dia. x cross wire dia. x 0.00617 x mesh width  x numbers of wire in length direction + edge wire dia. x edge wire dia. x 0.00617 x mesh length x 2=KG/sheet

[ Production ]
Our automatic welding machines can set up any mesh size in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure an even mesh size and accurate dimensions of panels.


[ Guarantee ]
1. We guarantee our customers will get the right material and sizes, enough weight,on-time delivery at our best service and price
2. The goods can be returned or compensated if the quality is not ok
3. There is no "cheat" and "misunderstanding" in Maishi


[ Payment term ]
T/T(30%T/T paid in advance and 70% paid before shipment or against copy of BL), irrevocable L/C at sight, can be negotiable.
Sample: free sample sent on request.

To serve you best we appreciate getting the following information :
1.Material: Electro-galvanized before or after welding
2. Opening size
3. Wire diameter
4. Roll or pallets, sizes
5. Quantity

At your service all the time and welcome your inquiry. You are the reason why we are here.
