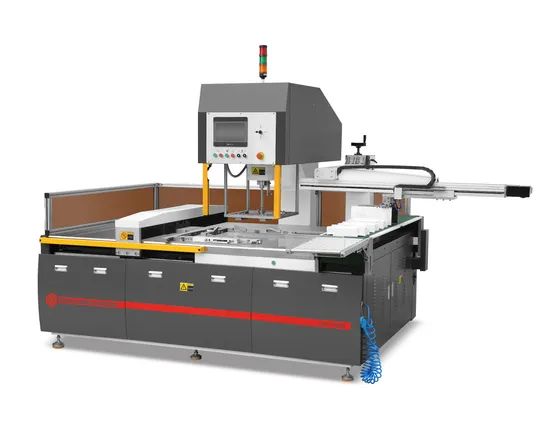

Fast Food Box Making Machine Origin Wenzhou HS Code 84439119 Trademark Qianding Model NO. HTQF-1080 Automatic Grade
1 Piece
$50,0001 Piece
$25,000Product information
High-quality Fast Food Box Making Machine Origin Wenzhou HS Code 84439119 Trademark Qianding Model NO. HTQF-1080 Automatic Grade supplied by Wenzhou Qianding Machinery technology Co., Ltd.. Bulk wholesale pricing ranges from $25,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
500 Sets/Year
HS Code:
84439119
Automatic Grade:
Automatic
Type:
Automatic Carton Making Machine
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CIF, CFR, EXW
Specification:
From 750mm to 2800mm
Model NO.:
HTQF-1080
Specifications
Production Capacity:
500 Sets/Year
HS Code:
84439119
Automatic Grade:
Automatic
Type:
Automatic Carton Making Machine
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CIF, CFR, EXW
Specification:
From 750mm to 2800mm
Model NO.:
HTQF-1080
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Ningbo Port, Shanghai Port
Detailed Properties:
Please See The Details Page Below
Trademark:
Qianding
Transport Package:
Strong Export Wooden Case.
Origin:
Wenzhou
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2017-06-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
45
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
SGS CE, Utility patents, etc
Product descriptions from the supplier
Introduction
The product is a preferable choice for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It saves labor, improve the product quality, and increase the production efficiency.
Feature:
1.Compraring to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convinient for operating.
2.Hidden type servo motor and ball screw ensures a precise pile positioning.
3.Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weights.
4.Stripping needles (rods) are quick and easy to chang to fit differnent products fromats and patterns.
5.Automatci lubricating system carries out regular lubrication, which greatlty extend the service life of the machine.
6.The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
7.Safety fence at operation side protects the safety of personnel when the machine is running.
Qianding Machines Loaded Into Container At the Ningbo Port.
The product is a preferable choice for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It saves labor, improve the product quality, and increase the production efficiency.
Feature:
1.Compraring to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convinient for operating.
2.Hidden type servo motor and ball screw ensures a precise pile positioning.
3.Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weights.
4.Stripping needles (rods) are quick and easy to chang to fit differnent products fromats and patterns.
5.Automatci lubricating system carries out regular lubrication, which greatlty extend the service life of the machine.
6.The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
7.Safety fence at operation side protects the safety of personnel when the machine is running.
| Machine technical parametrs | |
| Model | HTQF-1080 |
| Max sheet size (X) mm | 1080 |
| Max sheet size (Z) mm | 780 |
| Min sheet size (X) mm | 650 |
| Min sheet size (Z) mm | 450 |
| Max pile height mm | 100 |
| Min pile height mm | 40 |
| Work table height mm | 850 |
| Max product size to be punched out | 420*420 |
| Min. product size to be punched out | 30*30 |
| Stripping speed times/min | 15-22 |
| Max. force (bar) | 70 |
| Machine installation data | |
| Model | HTQF-1080 |
| Machine width mm | 2760 |
| Machine depth mm | 2070 |
| Machine height mm | 1960 |
| Net weight kg | 2000 |
| Air source Bar | 4-7 |
| Air consumption L/min | 2 |
| Power supply voltage | 360V-420V,50/60HZ |
| Power consumption A | 2 |
| Insurance current A | 10 |
| Input power | 3hPE |
| Power consumption | 3.5KW |
| Rotating mould technical parameters | |
| Model | HTQF-1080T |
| Trip | 0-180 degrees |
| Rotating speed | 10-80 degree/second |
| Air consumption | 1 L/min |
| Air source | 4-7 bar |
| Power supply voltage | 220V, 50HZ |
| Power consumption | 0.75KW |
| Manipulator arm technical parameters | |
| Model | HTQF-1400 (for 1080R) |
| Trip | 1400 mm |
| Clamping range | 30-180 mm |
| Clamping weight | 50 -1500 g |
| Empty running speed | 5-50 m/minute |
| Air source | 4-7 bar |
| Air consumption | 1 L/min |
| Power supply voltage | 220V, 50HZ |
| Power consumption | 0.4KW |
| Net weight | 200 kg |
| Electric configuration | |||
| Item | Model | Brand | Brand origin |
| DC power supply | NES-100-24 | Schneider | French |
| Relay | RXM2AB2BD(DC240V) | Schneider | French |
| AC contactor | LC1-0910 | Schneider | French |
| Thermal overload relay | 3UA59(6.3-10A) | Schneider | French |
| Button | XB2BA11C | Schneider | French |
| 4-position switch | XD2PA24CR | Schneider | French |
| Knob | XB2BD2C | Schneider | French |
| proximity switch | XS212BLNBL2C | Schneider | French |
| Servo motor | F-H08AF2 | Evta | China |
| Thermal overload relay | 3UA5240-1K | Siemens | Germany |
| Leakage protection airswitch of general power supply | BKN-D16-3 | GL | South Korea |
| Leakage protection airswitch of independent power supply | BKN-D6-1 | GL | South Korea |
| Touch screen | 10.4'' | Weinview | Taiwan |
| Micro-computerized controller | AFPXHC40-F | Panasonic | Japan |
Qianding Machines Loaded Into Container At the Ningbo Port.
