Fibber Laser: Automatic Solar Panel Single Head Laser

Fibber Laser: Automatic Solar Panel Single Head Laser - Image 1
Fibber Laser: Automatic Solar Panel Single Head Laser - Image 2
Fibber Laser: Automatic Solar Panel Single Head Laser - Image 3
Fibber Laser: Automatic Solar Panel Single Head Laser - Image 1
Fibber Laser: Automatic Solar Panel Single Head Laser - Image 2
Fibber Laser: Automatic Solar Panel Single Head Laser - Image 3

PC

Negotiable


Product information

High-quality Fibber Laser: Automatic Solar Panel Single Head Laser supplied by YiLi Pv Tech Factory Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

Specification:

1100mm*850mm*1450mm

Machine Power Consumption:

1kw

Input:

220VAC/50Hz

Trade Term:

FOB, CIF, CFR, EXW

Origin:

Jiangsu, China

Payment Term:

LC, D/P, PayPal, Western Union, Small-amount payment

Port Of Loading:

Shanghai Port

Model NO.:

Single head laser

Specifications

Specification:

1100mm*850mm*1450mm

Machine Power Consumption:

1kw

Input:

220VAC/50Hz

Trade Term:

FOB, CIF, CFR, EXW

Origin:

Jiangsu, China

Payment Term:

LC, D/P, PayPal, Western Union, Small-amount payment

Port Of Loading:

Shanghai Port

Model NO.:

Single head laser

Transport Package:

Wooden Box

Trademark:

Yilipv

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Not specified

Year Established:

2014-04-22

Annual Revenue Amount:

Not specified

Numbers Of Employees:

56

Preferred Payment Term:

LC, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Shanghai Port

Product descriptions from the supplier

Product Description

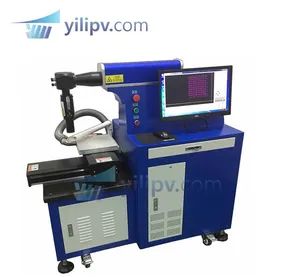

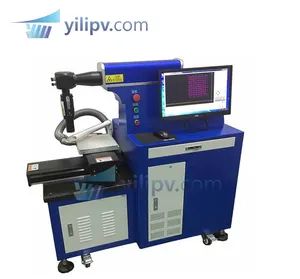

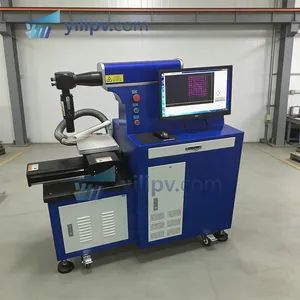

Fibber Laser: Automatic Solar Panel Single Head Laser




High efficiency: producing capacity can reach 2000 full cells/hour
Accuracy positioning: Solar cell full automatic positioning, positioning accuracy ≤ ±0.1mm
High automation level: Solar cell automatic loading and unloading, automatic positioning, automatic scribing, automatic boxing.

Product Parameters
Fiber laser

1064nm fiber laser

Beam quality

1.3

Workbench lengh

400mm*300mm

Max Speed

600mm/s

Simulate running speed

600mm/s

Scribe accuracy

≤0.05mm

Cooling system

Air cooling

Line width

≤0.03mm

Scribing structure

Single station dicing

Scribe table top

Glass surface

Scribing efficiency

Single time straight cutting 1000pcs/hour

Number of trays

Single

Compressed Air

0.6-0.8Mpa

Input

220VAC/50HZ

Machine power consumption

1KW

Machine size

1100mm*850mm*1450mm

Weight

400KG

FAQ

Fibber Laser: Automatic Solar Panel Single Head Laser

Packaging & Shipping

Fibber Laser: Automatic Solar Panel Single Head Laser

Company Profile

Fibber Laser: Automatic Solar Panel Single Head LaserYiLi Pv Tech Ltd adheres to the principle of quality first, customer first. We take quality and the company's reputation as the life of our enterprise. We are willing to wholeheartedly serve our customers with excellent products and a thoughtful service system before, during, and after-sales.
We sincerely welcome customers to contact and negotiate cooperation details with our company and service. We have our own independent finishing and roughing workshop to ensure the precision and quality of parts processing. Our experienced production and assembly team is the guarantee to ensure production progress and good after-sales service.
YiLi PV Tech Ltd. was established in 2008 and is one of China's pioneer manufacturers of photovoltaic module production equipment. We are a comprehensive high-tech enterprise with integrated R&D, sales and marketing, manufacturing, installation, and after-sales service.
Our company has more than 100 employees, including 23 people in the R&D department, more than 35 on-site installers, more than 24 people for after-sales, nearly 40 employees in the workshop, five employees in the overseas sales and marketing department, and six employees in the domestic sales department.
Our company provides a turnkey solution for a fully packaged production line and equipment for solar module manufacturers. The leading equipment includes, but is not limited to, a photovoltaic module automatic production line, multi-layer and multi-cavity laminating machine, robot typesetting machine, frame integrated machine, auxiliary equipment, and other series.
Our products and equipment are exported to the United States, Mexico, South Korea, Turkey, India, Jordan, and over twenty other countries and regions.
Customized Design and Products to Accommodate Your Needs.
According to customer's needs, we design and develop products that are compatible with all central solar cell and panel production techniques, including,but not limited to: Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, Topcon and other different production processes and needs. Applicable solar module types: Conventional solar modules, Half-cut solar modules, MBB solar modules, Shingled solar modules, Double-glass solar modules, Flexible solar modules, Back-contact solar modules, and Lightweight solar modules.
YiLi Pv after-sales team introduction:
YiLi Pv focuses on overseas markets and has established after-sales offices in the United States and Ahmedabad, India. Our company directly employs six experienced Indian after-sales engineers to provide local after-sales services for our machines exported to India. In southern India, we can reach the customer's factory within 6 hours to deal with complex machine problems; in northern India, we can reach the customer's factory within 12 hours.

Our Advantages

Fibber Laser: Automatic Solar Panel Single Head LaserFibber Laser: Automatic Solar Panel Single Head Laser
