Fiber Optic Gyro Compass Origin China IP Rating IP55 Certification ISO Payment Terms: T/T Port: Ningbo, China Accuracy Grade 0.5°
1 Piece
$5,6001 Piece
$6,600Product information
High-quality Fiber Optic Gyro Compass Origin China IP Rating IP55 Certification ISO Payment Terms: T/T Port: Ningbo, China Accuracy Grade 0.5° supplied by Kehang (Tianjin) Technology Co., Ltd. Bulk wholesale pricing ranges from $5,600 to $6,600 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Accuracy Grade:
0.5°
Origin:
China
Output Signal Type:
Digital Output
Trade Term:
FOB
Type:
Fiber Optic Gyro Compass
IP Rating:
IP55
Certification:
ISO
Port::
Ningbo, China
Specifications
Accuracy Grade:
0.5°
Origin:
China
Output Signal Type:
Digital Output
Trade Term:
FOB
Type:
Fiber Optic Gyro Compass
IP Rating:
IP55
Certification:
ISO
Port::
Ningbo, China
Customized:
Non-Customized
Measuring Shaft Quantities:
Single
Transport Package::
Sponge and Box
Payment Terms::
T/T
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Product descriptions from the supplier
Product Description
Highly cost-effective fiber optic gyro compass

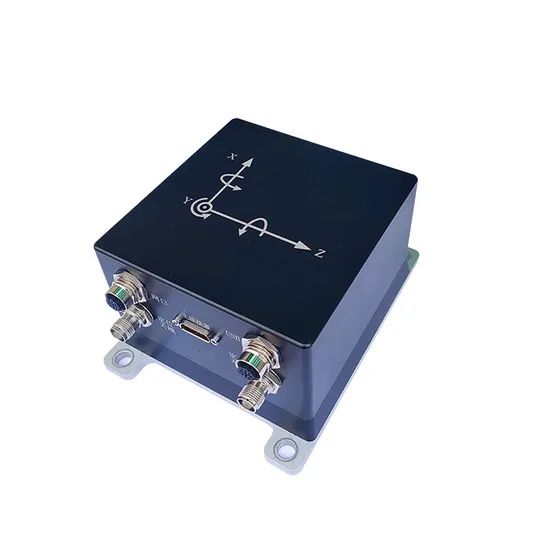

KH-C601 is a high-performance compass/inertial/satellite integrated navigation system. It is equipped with a three-axis high-precision fiber optic gyroscope, a three-axis high-precision accelerometer, a high-precision barometer, and a BD/GPS/GLONASS/GALILEO quad-mode receiver. It can measure the speed, position, and attitude of the carrier, and output compensated angular rate, acceleration, barometric pressure, temperature, and other information.
Introduction to KH-C601 Fiber Optic Gyrocompass
1. The product supports two working modes: gyrocompass and inertial navigation, which can be configured by the user;
2. The compass mode works autonomously, without the assistance of external information;
3. Supports static alignment and alignment under shaking conditions;
4. Supports operation in a wide temperature range from -40 degrees Celsius to 60 degrees Celsius;
5. 1KHz high sampling rate, 1KHz compensation computation, 1KHz navigation computation, 5Hz Kalman filtering;
6. Equipped with data storage function, it can simultaneously store the raw data from the receiver, IMU raw data, and base station differential data for NovAtel IE post-processing, and can also store navigation data and external information;
7. Rich interfaces (RS232, RS422, Can, Ethernet port).
- Performance indicators of fiber optic gyro compass
- Inertial device accuracy indicators:
| gyroscope | |
| Range | ±500°/s |
| Zero-bias stability | Under static testing at room temperature, the second-mean value data of the gyroscope is smoothed over ten seconds, with a standard deviation of ≤0.08°/h |
| Zero bias repeatability | Seven sets of zero bias data were repeatedly measured at room temperature. The standard deviation of these seven sets of zero bias data is ≤0.08°/h. |
| Bandwidth | 100Hz |
| accelerometer | |
| Range | ±4g (customizable) |
| Zero bias stability | Static test at room temperature, second-mean data, standard deviation ≤20ug. |
| Zero bias repeatability | Measure the zero bias data seven times at room temperature. The standard deviation of the seven zero bias measurements should be ≤20ug. |
| Bandwidth | 100Hz |
| Meteorological | |
| Altitude accuracy | Under meteorological conditions of calm and stable air, and at room temperature, it is less than 10cm (1σ, typical value) |
| Output frequency | 5Hz |
Performance indicators of GNSS receiver:
| Channel | 1408 channel |
| BDS B1I, B2I, B3I, B1C, B2a; GPS L1C/A, L1C, L2P (W), L2C, L5; GLONASS L1, L2;Galileo E1, E5a, E5b; QZSS L1, L2, L5 | |
| ngle point positioning (RMS) | Horizontal: 1.5m; Vertical: 3.0m |
| DGPS(RMS) | Horizontal: 0.4m; Vertical: 0.8m |
| RTK(RMS) | Horizontal: 1cm + 1ppm; Vertical: 1.5cm + 1ppm |
| Directional accuracy (RMS) | 0.2 degrees/1m baseline |
| Time accuracy (RMS) | 20ns |
| Speed accuracy (RMS) | 0.03m/s |
| Cold start | <20s |
| Differential data | RTCM 2.X/3.X CMR |
| Data update rate | 20Hz |
| Power consumption | 600mW (typical) |
- Compass performance indicators:
| Attitude | Pitch | 0.05° (RMS, dynamic), 0.02° (RMS, static) |
| Roll | 0.05° (RMS, dynamic), 0.02° (RMS, static) | |
| Measurement range | Pitch: ±90°, Roll: ±180° | |
| Heading | Heading | 0.5° (RMS, dynamic), 0.25° (RMS, static) |
| Measurement range | ±180° | |
| Gyroscope self-alignment time | After being powered on for 10 minutes, the heading error is less than 0.5 degrees 3.5 Electrical parameters and structure: |
- Electrical parameters and structure:
| Operating voltage | 12V~28V DC, (system calibration voltage is 20V) |
| Power supply ripple | <50mV |
| Maximum power consumption | System power consumption at room temperature is 11W, and the maximum power consumption at both high and low temperatures is 15W |
| Operating temperature | -40ºC~+60ºC |
| Storage temperature | -50ºC~+100ºC |
| Overall dimensions | (157mm)X(122mm)X(81mm) |
| Weight | ≤1260g |
