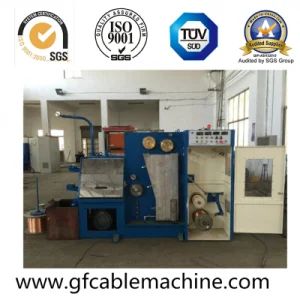

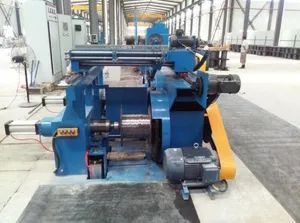

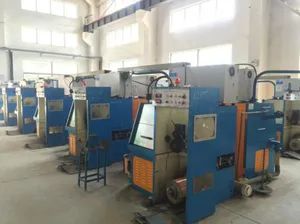

Fine Copper Wire Drawing Machine
Set
Negotiable
Product information
High-quality Fine Copper Wire Drawing Machine supplied by Dongguan Wirecan Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Outlet Diameter:
0.07mm-0.25mm
Max.Inlet Wire Dia.:
0.5mm-1.0mm
Production Capacity:
10sets/Year
Max.Line Speed(Mpm):
2000
Max. Number Of Block:
24
Block Dia.:
600mm
HS Code:
8463102000
Metal Material:
Aluminum
Specifications
Outlet Diameter:
0.07mm-0.25mm
Max.Inlet Wire Dia.:
0.5mm-1.0mm
Production Capacity:
10sets/Year
Max.Line Speed(Mpm):
2000
Max. Number Of Block:
24
Block Dia.:
600mm
HS Code:
8463102000
Metal Material:
Aluminum
Origin:
China
Service:
Engineer Is Available Overseas
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GF-22DT
Certification:
ISO
Condition:
New
Transport Package:
Plastic Film+Wooden Package
Port Of Loading:
Shenzhen Port
Payment Term:
To be discussed
Frame:
Welded by Steel Plate
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2015-10-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
| Machine type | GF-22DT | GF-24DT | GF-14DT | GF-17ZDT |
| Control system | Traditional analog type/digital control with production record | |||
| Outlet diameter | φ0.1-φ0.32mm | φ0.08-φ0.25mm | φ0.25-φ0.7mm | φ0.3-φ0.75mm |
| Inlet diameter | φ0.6-φ1.2mm | φ0.5-φ1.0mm | φ0.8-φ1.6mm | φ0.8-φ2.00mm |
| Max line speed | 2000mpm/max | 2000mpm/max | 1200mpm/max | 1400mpm/max |
| Dies NO. | 22 | 24 | 14 | 17 |
| Slip ratio of m/c | 15%+8% | 13%+8% | 15%+8% | 15%+8% |
| Frame | Iron plate welding annealing treatment | |||
| Drawing capstan | Tungsten | |||
| Max capstan diameter | φ242.85mm | φ242.5mm | φ316mm | φ250mm |
| Fix speed capstan diameter | φ199mm | φ199mm | φ268mm | φ250mm |
| Spooler bobbin size | O.D.φ380mm/max | O.D.φ400mm-φ630mm | ||
| Bobbin loading&unloading type | Shaft type | |||
| Max loading capacity | 50KG/MAX | 500KG/MAX | ||
| Annealingtype | DC 3-phase | |||
| Main motor power | 11KW | 11KW | 15kw | 15KW |
| Take up power | 3.7KW | 3.7KW | 3.7kw | 11KW |
| Max anneal current | DC300A | DC300A | DC600A | DC800A |
| Max anneal voltage | DC50V | DC50V | DC50V | DC50V |
| Annealing motor power | 16KVA | 16KVA | 30KVA | 40KVA |
| Steam quantity | 8kg/h | 8kg/h | 10kg/h | 10kg/h |
| Cooling water capacity | 150L/min | 150L/min | 250L/min | 250L/min |
| Capacity of compressed air | 0.4~0.6Mpa,15L/min | 0.4~0.6Mpa,15L/min | 0.4~0.6Mpa,20L/min | 0.4~0.6Mpa,20L/min |
| Power source | 380V 50/60HZ | |||
| Machine size | 2100×1600×1700 | 2100×1600×1700 | 2600×1600×1900 | 3020L×1688W×2015H |
| Machine weight | 3000KG | 3000KG | 3200KG | 4000KG |
