Fire Protection Pressure Reducing Valve
Piece
Negotiable
Product information
High-quality Fire Protection Pressure Reducing Valve supplied by SINCO FIRE AND SECURITY CO., LIMITED. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Model NO.:
200X
Production Capacity:
3000 Sets Per Month
HS Code:
8481804090
Trademark:
Blank
Material:
Cast Iron/Ductile Iron/Stainless Steel
Specification:
DN50-DN600
Structure:
Diaphragm
Coating:
Epoxy Resin Coated to 300 Microns Inside & Outside
Specifications
Model NO.:
200X
Production Capacity:
3000 Sets Per Month
HS Code:
8481804090
Trademark:
Blank
Material:
Cast Iron/Ductile Iron/Stainless Steel
Specification:
DN50-DN600
Structure:
Diaphragm
Coating:
Epoxy Resin Coated to 300 Microns Inside & Outside
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Connection:
Flange
Origin:
Fujian
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Pressure Rate:
Pn10/16/25
Valve Seat:
Single-Seat
Transport Package:
Wooden Case
Port Of Loading:
Xiamen, Ningbo, Guangzhou
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-03-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
Xiamen, Ningbo, Guangzhou
Certificates:
CE Certificate, Fire Extinguisher Ball CE Certificate, Fire Pump ISO, ISO Certificate, Other Certificates
Product descriptions from the supplier

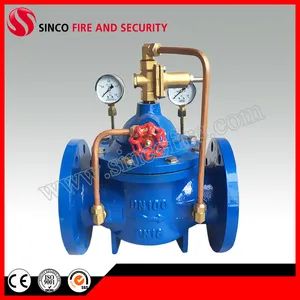

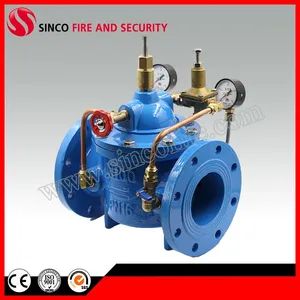

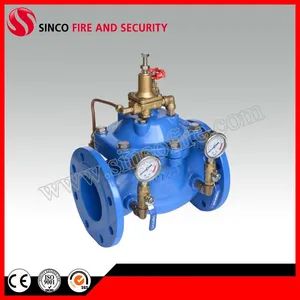

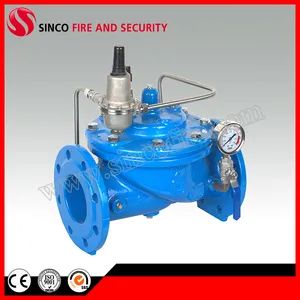

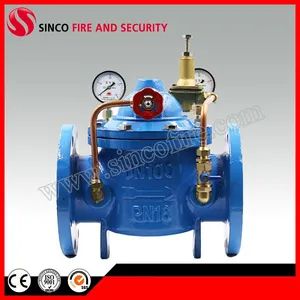

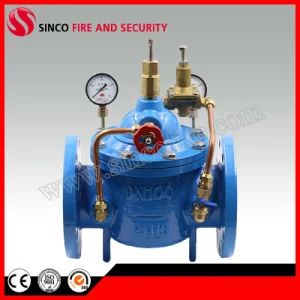

Fire Protection Pressure Reducing Valve
IntroductionThe pressure-reducing valve is adjusted to reduce the inlet pressure to a desired outlet pressure and rely on the energy of the medium itself to keep the outlet pressure automatically stable. From fluid mechanics point of view, pressure reducing valve is a throttling element, local resistance to change that by changing the throttling area, change the kinetic energy of the flow velocity and fluid, different pressure loss, so as to achieve the goal of decompression. Then the control and adjustment system can be adjusted to balance the pressure fluctuation of the valve and the spring force, so that the pressure of the valve remains constant within a certain margin of error. It is widely used in high rise buildings, water pressure of the city water supply pipe, and other occasions, so as to ensure the proper service water pressure and flow of water points in the water supply system.
Specification
| No.. | Part | Material |
| 1 | Body | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
| 2 | Seat | 410 S.S. / SS 304 / SS 316 |
| 3 | Stem | 410 S.S. / SS 304 / SS 316 |
| 4 | O-ring washer | Cast Iron |
| 5 | O-ring | NBR |
| 6 | O-ring | NBR |
| 7 | Disc | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
| 8 | Diaphragm | Rubber |
| 9 | Diaphragm Washer | Cast Iron |
| 10 | Screw | Bronze |
| 11 | Spring | Spring steel |
| 12 | Cover | Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT) |
| 13 | Ball Valve | Bronze |
| 14 | Ball valve | Bronze |
| 15 | Pressure show | |
| 16 | Pilot valve | Bronze |
| 17 | Hang ring | Steel |
| 18 | Pilot socket | Bronze |
| 19 | Needle valve | Bronze |
| 20 | Ball valve | Bronze |
| 21 | Pressure show | |
| 22 | Stud | Steel |
| 23 | Screw | Steel |
| DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| L | 203 | 235 | 285 | 360 | 400 | 455 | 585 | 650 | 800 | 860 | 915 | 980 | 1075 | 1230 | |
| PN10 | D | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 390 | 440 | 500 | 565 | 615 | 670 | 780 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 725 | |
| PN16 | D | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 405 | 460 | 520 | 580 | 640 | 705 | 840 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 | |
| PN25 | D | 160 | 180 | 195 | 230 | 270 | 300 | 360 | 425 | 485 | 550 | 610 | 660 | 730 | 840 |
| D1 | 125 | 145 | 160 | 190 | 220 | 250 | 310 | 370 | 430 | 490 | 550 | 600 | 660 | 770 | |
| H | 395 | 405 | 430 | 510 | 560 | 585 | 675 | 730 | 760 | 840 | 910 | 1030 | 1135 | 1270 | |
Photoes
