Flange Hex Bolt Making Machines, Cold Heading Machine, Thread Rolling Machine
Piece
Negotiable
Product information
High-quality Flange Hex Bolt Making Machines, Cold Heading Machine, Thread Rolling Machine supplied by Xuchang Huarui Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Forging Tolerance:
+/-0.2mm
Model NO.:
10B3S 13B3S 17B3S 19B3S 24B3S 30B3S 33B3S 36B3S
Standard:
ANSI
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Trademark:
Huarui
Material:
Iron
Specifications
Forging Tolerance:
+/-0.2mm
Model NO.:
10B3S 13B3S 17B3S 19B3S 24B3S 30B3S 33B3S 36B3S
Standard:
ANSI
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Trademark:
Huarui
Material:
Iron
Payment Term:
LC, T/T, D/P, Western Union, Small-amount payment, Money Gram
Application:
Machinery Parts
Machining:
Machining Center
Transport Package:
Plywood
Molding Technics:
Pressure Casting
Port Of Loading:
Qingdao port, or as your request
Surface Treatment:
Zinc Plating
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-05-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Qingdao port, or as your request
Certificates:
CE certificate----nail making production line (1), CE certificate---nail making production line (2), CE certificate--Tire recycling production line
Product descriptions from the supplier

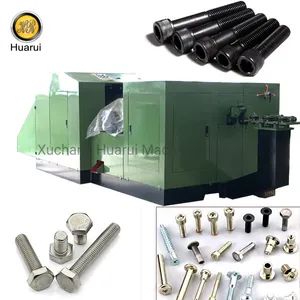

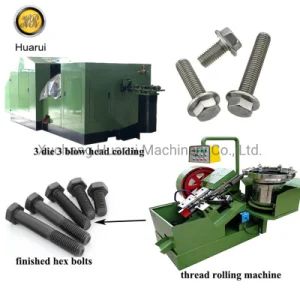

Hex Bolt /TC / Flange bolt forming Machines
Our factory has been specialized in producing screw bolt making machines for nearly 30 years, and we provide 2 years warranties to all of our machines. We also got CE certificate. We have 3 die 3 blow, 4 die 4 blow bolt making machines.

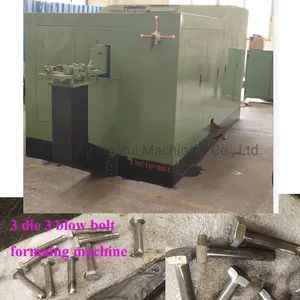

1. 3 Die 3 Blow hex bolt making machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Technical data sheet
| Model No. | HRBF17B3S | HRBF17B3SL | HRBF17B3SXL | HRBF17B3SUL | HRBF19B3S | HRBF19B3SL | HRBF19B3SXL | HRBF19B3SUL |
| Forging station | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Max. Cut-off Dia. | 13mm | 13mm | 13mm | 13mm | 17mm | 17mm | 17mm | 17mm |
| Max. Cut-off length | 105mm | 180mm | 230mm | 350mm | 140mm | 185mm | 240mm | 400mm |
| Max. Kick-out length | 90mm | 175mm | 225mm | 325mm | 120mm | 180mm | 225mm | 325mm |
| Max. P.K.O length | 20mm | 30mm | 36mm | 60mm | 26mm | 30mm | 35mm | 60mm |
| Cut-off quill(DxL) | 40x66mm | 40x80mm | 40x80mm | 40x80mm | 46x80mm | 46x80mm | 60x100mm | 65x100mm |
| Main Die hole (DxL) | 70x95mm | 80x185mm | 80x240mm | 80x330mm | 93x135mm | 93x190mm | 93x240mm | 93x350mm |
| Dies pitch | 93mm | 93mm | 93mm | 93mm | 114mm | 114mm | 114mm | 114mm |
| Punch hole (DxL) | 50x102mm | 50x130mm | 50x190mm | 50x200mm | 60x120mm | 60x170mm | 60x200mm | 60x250mm |
| Ram stroke | 160mm | 250mm | 360mm | 460mm | 200mm | 270mm | 360mm | 500mm |
| Forging power | 70Ton | 70Ton | 80Ton | 80Ton | 90Ton | 90Ton | 100Ton | 100Ton |
| Max product size | 3/8 M10x75mm | M10x150mm | M10x200mm | M10x300mm | 1/2 M12x100mm | M12x150mm | M12x200mm | M12x300mm |
| Max out-put | 210pcs/min | 175pcs/min | 110pcs/min | 80pcs/min | 170pcs/min | 125pcs/min | 100pcs/min | 80pcs/min |
| Main motor | 20HP | 30HP | 40HP | 40HP | 40HP | 50HP | 50HP | 50HP |
| Approximate weight | 12.5T | 17T | 21T | 26.5T | 20T | 23T | 27T | 33T |

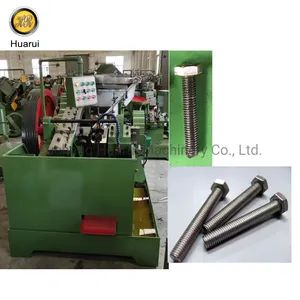

Full automatic thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.
The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.
The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
Technical data sheet
| Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Motor (kw) | Capacity (pcs/min) | Weight (Ton) | Overall size (m) |
| HR3-20A | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
| HR3-20B | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
| HR4-25A | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| HR4-25B | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| HR4-40A | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| HR4-40B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| HR5-55A | M5 | 55 | 3+0.37 | 170 | 1.2 | 1.6*1.35*1.7 |
| HR5-55B | M5 | 55 | 3+0.37 | 170 | 1.2 | 1.6*1.35*1.7 |
| HR5-65A | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| HR5-65B | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| HR6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| HR6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| HR6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
| HR8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
| HR8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.4*1.7*1.3 |
| HR8-120B | M8 | 120 | 7.5+0.37 | 100 | 2.1 | 2.4*1.7*1.3 |
| HR10-120B | M10 | 120 | 7.5 | 80 | 2.35 | 2.4*1.95*1.4 |
| HR12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
| HR12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
| HR12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
| HR16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
| HR16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |
| HR16-220B | M16 | 220 | 15 | 45 | 4.8 | 3.7*1.9*1.7 |

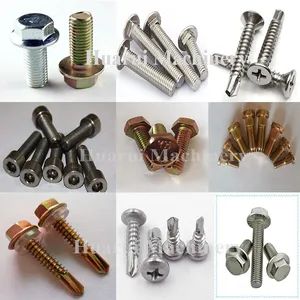

Finished product and other products can be made
Loading photos
Photos taken with customers
Contact person: Angela
