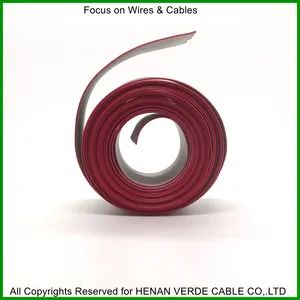

Flat Data Signal Video Audio Ribbon Cable for Electronic Board Inner Connection
200-1999 Meters
$12000-9999 Meters
$0.110000 Meters
$0.08Product information
High-quality Flat Data Signal Video Audio Ribbon Cable for Electronic Board Inner Connection supplied by Henan Verde Cable Co., Ltd.. Bulk wholesale pricing ranges from $0.08 to $1 per Meters with a minimum order of 200 Meters. Inquiry for latest prices.
Customized P:
10p 12p 14p 15p ....20p 24p 25p 30p
Produceing Experience:
15 Years
Production Capacity:
500km Per Month
HS Code:
8544492100
Size:
AWG 28 26 24 AWG23 22, 20, 18
Transport Package:
Coil, Carton
Application:
Computer, Electronic Board Inner Connection
Conductor Material:
Copper
Specifications
Customized P:
10p 12p 14p 15p ....20p 24p 25p 30p
Produceing Experience:
15 Years
Production Capacity:
500km Per Month
HS Code:
8544492100
Size:
AWG 28 26 24 AWG23 22, 20, 18
Transport Package:
Coil, Carton
Application:
Computer, Electronic Board Inner Connection
Conductor Material:
Copper
Trade Term:
FOB, EXW, CFR, CIF
Range Of Application:
Flame Retardant Flexible
Material Shape:
Flat Wire
Origin:
Henan
Certification:
ISO9001, CCC, RoHS
Payment Term:
LC, T/T, Western Union
Export:
Malyasia, Phillippines, UAE, Russia, Europe
Sheath Material:
Non Sheath
Insulation Material:
PVC
Specification:
SGS
Customized:
Yes
OEM:
Yes
Model NO.:
flat cable
Port Of Loading:
qingdao, shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-01-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
qingdao, shanghai
Certificates:
CE certificate
Product descriptions from the supplier
Description:
Tinned copper (REACH) PVC insulated gray grey with red flat signal cable
Application:
Flat signal cable is suitable for use as a data transmission cable between moving parts and the main board, board-to-board and miniaturized electrical equipment. At present, it is widely used in the connection between the print head of various printers and the main board.
Structure of flat ribbon cable:
Conductor:Tinned copper
Insulation:(REACH) PVC
Shape: flat
Core number: 8, 9, 10, 12, 14, 15, 16, 20, 24, 26, 30, 34, 40, 50, 60, 64
Size: AWG28 AWG26 AWG24 AWG30
Color: Gray with black, gray with Red, color can be customized according to the requirement of the customer.
Technical Data of flat signal cable:
Rated voltage: 300V
Maximum use temperature: 105ºC
Maximum conductor resistance at 20ºC: 25Ω/km
Standard: UL 2651 Style or Customize as per the customers' special required standard
Packing: 152.5m/roll or 305meter per roll
Specification of flat signal cable:
Feature of flat signal cable:
1. Small size and light weight, it is the only solution to meet the miniaturization and mobile requirements of the equipment;
2. It can be moved, bent and twisted without damaging the wires, and can meet different shapes and special package sizes;
3. The gray cable has excellent electrical properties, dielectric properties and heat resistance;
4. The gray cable has higher assembly reliability and quality.
Packing ways for PVC cable for your choince.
Our workshop:
Tinned copper (REACH) PVC insulated gray grey with red flat signal cable
Application:
Flat signal cable is suitable for use as a data transmission cable between moving parts and the main board, board-to-board and miniaturized electrical equipment. At present, it is widely used in the connection between the print head of various printers and the main board.
Structure of flat ribbon cable:
Conductor:Tinned copper
Insulation:(REACH) PVC
Shape: flat
Core number: 8, 9, 10, 12, 14, 15, 16, 20, 24, 26, 30, 34, 40, 50, 60, 64
Size: AWG28 AWG26 AWG24 AWG30
Color: Gray with black, gray with Red, color can be customized according to the requirement of the customer.
Technical Data of flat signal cable:
Rated voltage: 300V
Maximum use temperature: 105ºC
Maximum conductor resistance at 20ºC: 25Ω/km
Standard: UL 2651 Style or Customize as per the customers' special required standard
Packing: 152.5m/roll or 305meter per roll
Specification of flat signal cable:
| UL Specification | Maximum use temperature | Maximum operating voltage | Number of conductors | Conductor | Finished outer diameter | ||
| Size | Wire number/wire diameter | Thickness mm±0.05 |
Width Wmm±0.2 |
||||
| AWG | No./mm±0.05 | ||||||
| 2651 | 105ºC | 300V | 8 | 28 | 7/0.127 | 0.90 | 10.16 |
| 9 | 28 | 7/0.127 | 0.90 | 11.43 | |||
| 10 | 28 | 7/0.127 | 0.90 | 12.70 | |||
| 12 | 28 | 7/0.127 | 0.90 | 15.24 | |||
| 14 | 28 | 7/0.127 | 0.90 | 17.78 | |||
| 16 | 28 | 7/0.127 | 0.90 | 20.32 | |||
| 20 | 28 | 7/0.127 | 0.90 | 25.40 | |||
| 26 | 28 | 7/0.127 | 0.90 | 33.02 | |||
| 30 | 28 | 7/0.127 | 0.90 | 38.10 | |||
| 34 | 28 | 7/0.127 | 0.90 | 43.18 | |||
| 40 | 28 | 7/0.127 | 0.90 | 50.80 | |||
| 50 | 28 | 7/0.127 | 0.90 | 63.50 | |||
| 60 | 28 | 7/0.127 | 0.90 | 76.20 | |||
| 64 | 28 | 7/0.127 | 0.90 | 81.28 | |||
Feature of flat signal cable:
1. Small size and light weight, it is the only solution to meet the miniaturization and mobile requirements of the equipment;
2. It can be moved, bent and twisted without damaging the wires, and can meet different shapes and special package sizes;
3. The gray cable has excellent electrical properties, dielectric properties and heat resistance;
4. The gray cable has higher assembly reliability and quality.
Packing ways for PVC cable for your choince.
Our workshop:
Q&A:
1. Q:How to choose the sheath type of cable?
A.:There are four commonly used sheath types, PUR, PVC, TPE, TPEE.
The PUR sheath has good elasticity, softness, good mechanical properties, good resilience, and is not easy to deform. The price of PVC sheath is cheap, if you do not have high requirements for the resilience of the wire, you can choose PVC sheath. The TPE sheath is super soft, and the temperature range is -40ºC~+80ºC, but its disadvantage is that it is not resistant to oil and its mechanical properties are not as good as PUR. Its price is lower than PUR and higher than PVC. TPEE has good temperature resistance. The temperature range is -40ºC to +100ºC. It has good resilience and mechanical properties, but it is not soft enough and the price is higher than PUR.
2. Q.:Are you a factory or trading company?
A: We are a factory, and we establised in 2007.
3. Q: What kind of electric wire and cable do you produce?
A: We produces various kinds of Electric wire and Power cable: PVC Cable, XLPE Cable, Control Cable, Flexible Cable, Spiral Cable, Signal Cable, Data Cable(Cat6, Cat5e,Patch cord),Teflon wire and High temperature Wire Cable, Rubber Cable, Elevator cable, Crane cable, Solar cable and different industrial Cables, Conductor (AAC, ACSR, AAAC, Bare copper conductor and Stay wire)
4. Q: Is sample supplied if requested?
A: Yes!
5. Q: What certificates do you have?
A: We have been qualified with IEC, CCC, CE, RoHS.
6. Q.:Which markets do you mainly involve in?
A: Our products have been exported mainly to Philippines, Singapore, Indonesia, Malaysia, Pakistan, Vietnam, UAE, Saudi Arabia, USA, UK, Russia, Poland, France, Hungary, Australia, Kenya, Nigeria, South Africa, Zambia, Angola, Tanzania, Mexico, Guatemala, Nicaragua.
If you want to know more about us and our products,pls contact us.
sending email or telephon us:
Linda Lee
Vice General Manager
HENAN VERDE CABLE Co,.Ltd
Focus on Wires and Cables
