Flexo Printing Machine for Paper, Paper Bag
1 set
$89,0001 set
$123,000Product information
High-quality Flexo Printing Machine for Paper, Paper Bag supplied by HERZPACK (SHANGHAI) MACHINERY CO., LTD.. Bulk wholesale pricing ranges from $89,000 to $123,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Tension Control Tolerance:
+/-2kg
Tension Control Range:
10-60kg
Production Capacity:
100set/Year
Maximum Unwinder Diameter:
1500mm
Maximum Rewinder Diameter:
1500mm
Printing Speed:
150m/mim
Max Speed:
200m/Min
Substrate:
35~350GSM Paper
Specifications
Tension Control Tolerance:
+/-2kg
Tension Control Range:
10-60kg
Production Capacity:
100set/Year
Maximum Unwinder Diameter:
1500mm
Maximum Rewinder Diameter:
1500mm
Printing Speed:
150m/mim
Max Speed:
200m/Min
Substrate:
35~350GSM Paper
Power Requirement:
380 VAC +/-10% 3pH 50Hz
HS Code:
8443170090
Automatic Grade:
Automatic
Origin:
China
Trade Term:
FOB, EXW, CIF, DDP, CPT, FCA
Model NO.:
HERZ-FP
Trademark:
HERZPACK
Type:
Ink Jet
Embossing Structure:
Platen Press
Application:
Pre Printed Carton
Port Of Loading:
Shanghai
Payment Term:
T/T, PayPal, Western Union
Dryer:
UV& IR
Structure:
Unit Type
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-02-14
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CIF, DDP, CPT, FCA
Port Of Loading:
Shanghai
Certificates:
CE certificate, ISO, Patent certificate, SGS
Product descriptions from the supplier

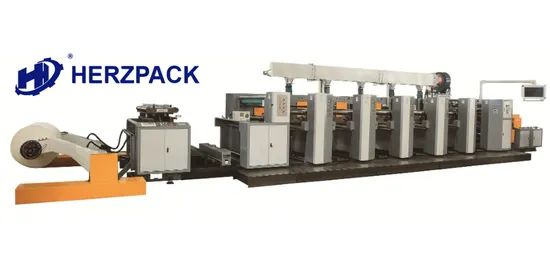

Unit type Flexo printing machine
Product Description:
1. From 1 color to 13 colors to meet different customer needs.
2. Printing thickness from 20g to 100g, 100g to 200g, 200g to 400g
3. SC series cast wall panels for enhanced stability

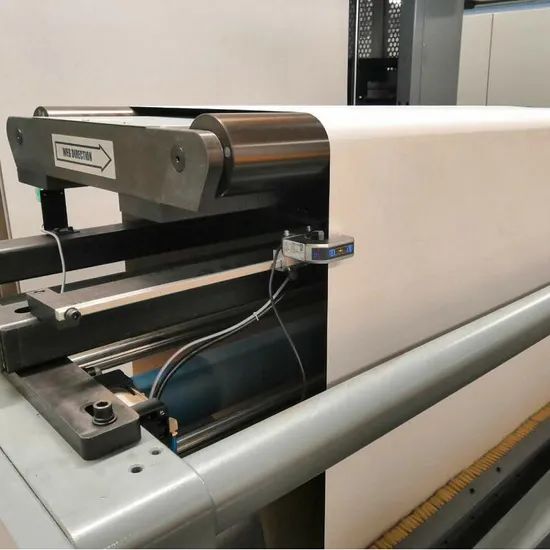

4. Standard supporting automatic deviation correction, providing continuous printing material control
5. Print unit pull-out design for quick installation and replacement of color components
6. High-speed drying ability, infrared and hair dryer
7. Horizontal and vertical registration capabilities to meet the needs of high quality printing
8. Stable tension control system
9. Standard configuration stroboscopic detection system to detect printing color and registration effect from
time to time
10. Easy to use console
11. Unlimited expansion space for super strong processing capability - non-stop rewinding, automatic
overprinting, material dusting, corona, double-sided printing, line cutting, cutting, etc.
Applications
1.Use water-based inks to achieve environmentally friendly printing standards;
2.High production efficiency, more suitable for large-scale long-running activities;
3.Can be used with various types of bag making machines; automated production, reducing labor costs;
4.Save printing paper and ink.
Machine Specifications:
Can customize products according to customer requirements

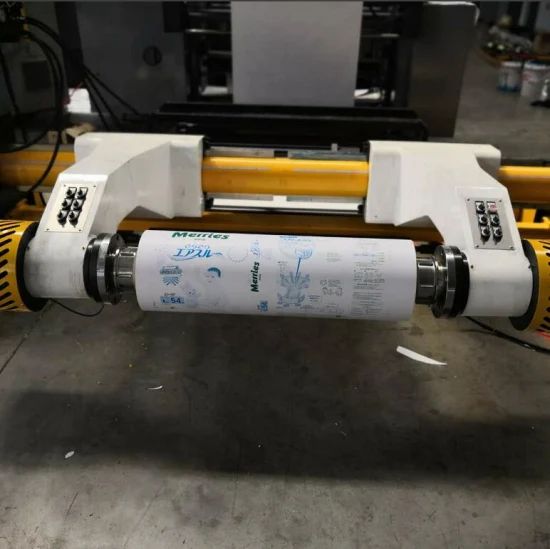

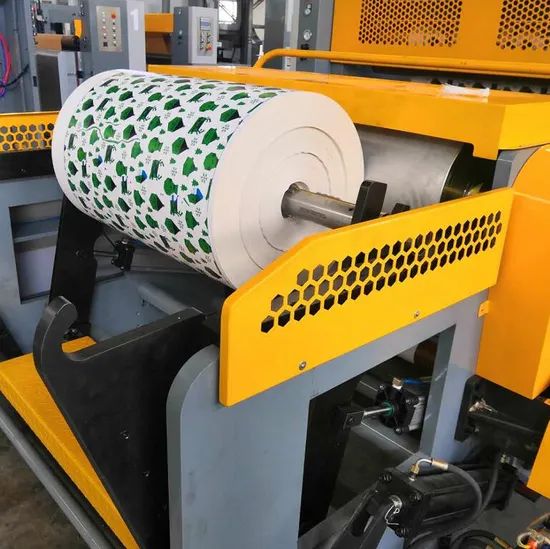

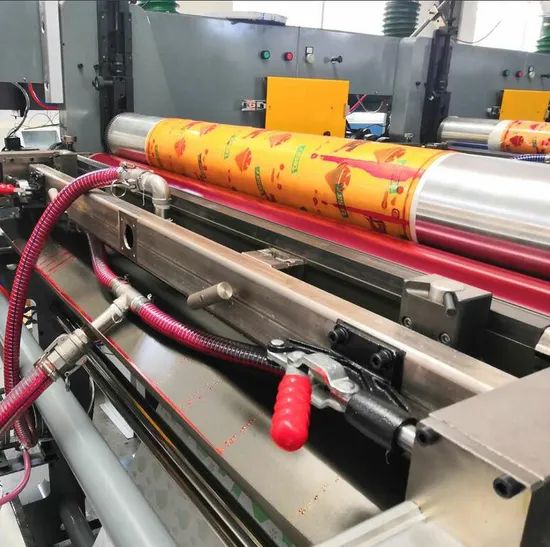

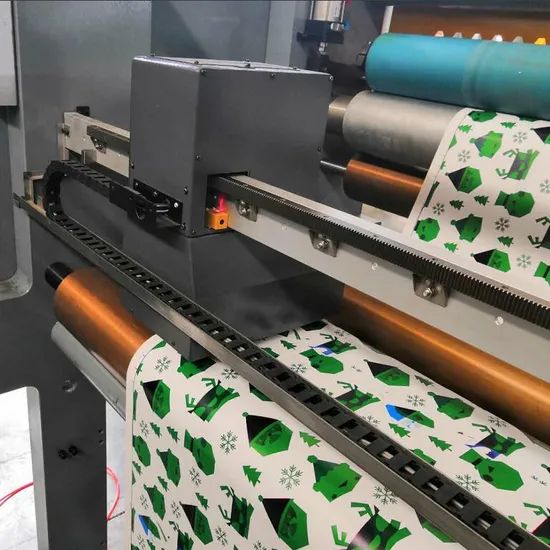

Machine detail
Product Description:
1. From 1 color to 13 colors to meet different customer needs.
2. Printing thickness from 20g to 100g, 100g to 200g, 200g to 400g
3. SC series cast wall panels for enhanced stability
4. Standard supporting automatic deviation correction, providing continuous printing material control
5. Print unit pull-out design for quick installation and replacement of color components
6. High-speed drying ability, infrared and hair dryer
7. Horizontal and vertical registration capabilities to meet the needs of high quality printing
8. Stable tension control system
9. Standard configuration stroboscopic detection system to detect printing color and registration effect from
time to time
10. Easy to use console
11. Unlimited expansion space for super strong processing capability - non-stop rewinding, automatic
overprinting, material dusting, corona, double-sided printing, line cutting, cutting, etc.
Applications
1.Use water-based inks to achieve environmentally friendly printing standards;
2.High production efficiency, more suitable for large-scale long-running activities;
3.Can be used with various types of bag making machines; automated production, reducing labor costs;
4.Save printing paper and ink.
Machine Specifications:
| Wide Web Series | 830 | 1000 | 1100 | 1270 |
| Max.Web Width | 850mm | 1015mm | 1115mm | 1285mm |
| Max. Printing Width | 830mm | 1000mm | 1100mm | 1270mm |
| Printing Repeat | 279.4~710mm | 279.4~710mm | 279.4~710mm | 381~1191mm |
| Max. Unwind Diameter | 1524mm | |||
| Max. Rewind Diameter | 1524mm | |||
| Gear | 1/8CP | |||
| Max. Speed | 152m/min | |||
| Power | 15~18KW | 20~30KW | 20~30KW | 20~30KW |
| System | Automatic | |||
| Air Pressure | 100PSI(0.6Mpa) | |||
| Power Requirement | 380V 3PH 50HZ | |||
| Substrate | 20~100gsm/100~200gsm/200~400g | |||
Machine detail
Contact us:
Arvin Dai
Oversea sales manager
Herzpack(Shanghai)Machinery Co.,Ltd.
No.53, 1001, Lane 2039 Longhao Road, Jinshan,Shanghai, China
;
