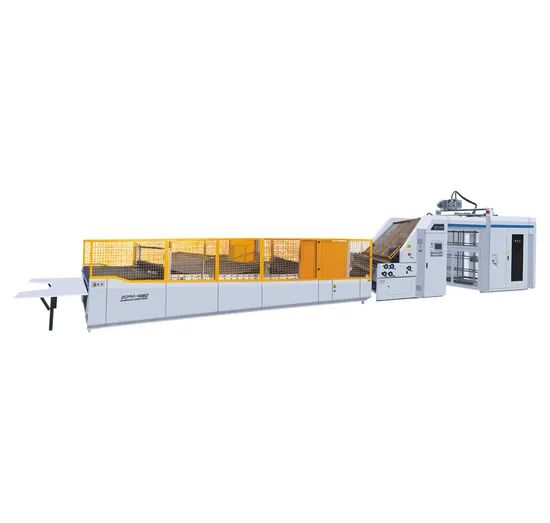

Flute Laminating Machine Corrugated Cardboard Laminator for Box Making with CE Shield
1 Piece
$30,0001 Piece
$69,000Product information
High-quality Flute Laminating Machine Corrugated Cardboard Laminator for Box Making with CE Shield supplied by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $69,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
14800*2300*2400mm
Top Sheet Thickness:
150-800g
Maximum Paper:
1500*1500mm
Working Speed:
160m/Min
Accuracy:
1mm
Production Capacity:
20
Total Power:
20kw
Minimum Paper:
360*380mm
Specifications
Specification:
14800*2300*2400mm
Top Sheet Thickness:
150-800g
Maximum Paper:
1500*1500mm
Working Speed:
160m/Min
Accuracy:
1mm
Production Capacity:
20
Total Power:
20kw
Minimum Paper:
360*380mm
Automatic Grade:
Automatic
Type:
Automatic Carton Making Machine
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Innovo
Payment Term:
LC, T/T
After Sales Service Provided:
Online Support & Free Parts
Bottom Sheet Thickness:
Paper Thickness ≤10mm
Port Of Loading:
Shanghai Port, Ningbo Port
Transport Package:
Wood Package
Model NO.:
with CE shield ZGFM1500
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-11-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
89
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Ningbo Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
Product Description
1.1Performance characteristics:
A .Cardboard laminate with corrugated or cardboard laminate with cardboard.
B.Automatic detection of topand bottom paper, automatic servo correction technology. Make the toppaper automatically track and fit the bottom paper, and the accuracy is high.
C.The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
D.The multifunctional rack of the bottom paper are suitable for curved corrugated.
E.Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity.
F.Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
G.One -click adjustment of the whole machine (just enter the paper size).
H.Automatic paper collection and manual paper collection can be converted at any time.
I.Video monitoring (optional).
1.2 Structure:

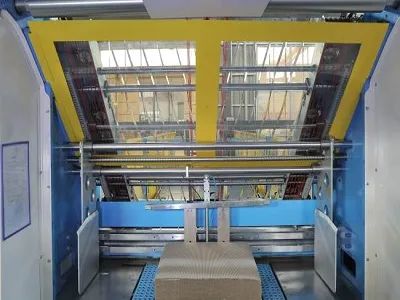

A. Top sheet Feeder: It can send stacks of 120-800gsm paper from above.
B. Bottom sheet feeder: It can send 0.5~10mm Corrugated/paperboard from below.

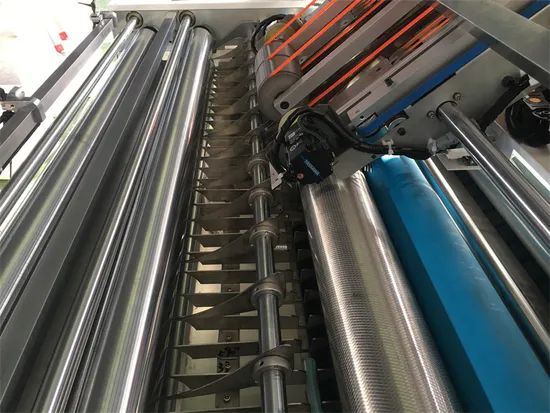

C. Gluing mechanism: The glued water can be applied to the fed paper. Glue roller is stainless steel.
D. Calibration structure-Fits the two papers according to the set tolerances.
E. Pressing Conveyor: Presses the attached paper and conveys it to the delivery section.
The frames of this series of products are all processed at one time by a large-scale machining center, which ensures the accuracy of each station and ensures more stable operation of the equipment
1.3 Principles:
The top sheet is sent out by the upper feeder and sent to the start detector of the positioning device. Then the bottom sheet is sent out; after the bottom paper is coated with glue, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the top and bottom sheet, servo compensation device on both sides of the paper adjusts the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.
1.4 Applicable materials for laminating:
Paste paper --- 150 ~ 800g/m thin paper, cardboard.
Bottom paper---≤10mm corrugated ≥300gsmpaperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
Structural features:
Adopting the world's leading transmission control system, input paper size and system will auto-tuning
Computerized high-speed laminating, up to 12,000 pieces per hour.
Stream-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.
Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker
Use multiple sets of sensors to detect the advance position of the bottom line, and make the servo motor on both sides of the top paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.
Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.
ZGFM high speed laminating machine can be connected with automatic flip flop stacker to save labor.
Parameters
| Model | ZGFM1500 | ZGFM1700 | ZGFM1900 | ZGFM1900 |
| Max size | 1500*1500mm | 1700*1700mm | 1900*1900mm | 2200*2200mm |
| Min size | 360*380mm | 360*400mm | 500*500mm | 500*500mm |
| Top Paper | 150-800g | 150-800g | 150-800g | 150-800g |
| Bottom paper |
≤10mmABCDEF corrugated board ≥300gsm cardboard |
≤10mm ABCDEF corrugated board ≥300gsm cardboard |
≤10mmABCDEFcorrugated board ≥300gsm cardboard |
≤10mmABCDEFcorrugated board ≥300gsm cardboard |
|
Max laminating speed |
160m/min | 160m/min | 160m/min | 160m/min |
| Power | 20kw | 20kw | 22KW | 22KW |
| Stick accuracy | ±1mm | ±1mm | ±1mm | ±1mm |

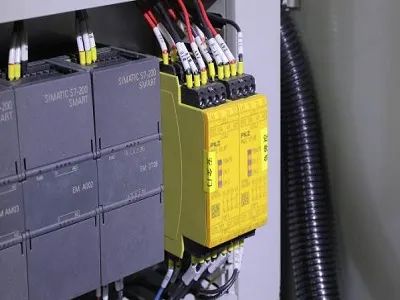

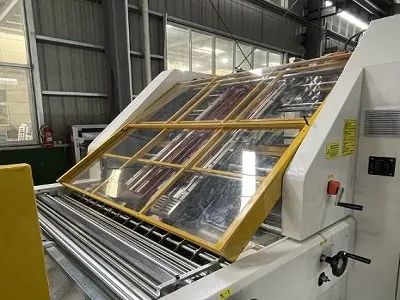

EXTRA SAFETY GUARD AND SAFETY RELAY:
FEATURES
1.BOTTOM SHEET FEEDING
Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
2.TOP SHEET FEEDING MECHANISM
Both paper lifting and feeding nozzle of high speed auto dedicated feeder can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump, ensure top feeding paper run fast and smoothly.
3.ELECTRICAL SYSTEM
Designed and adopt U.S.A Parker motion controller together with Yaskawa Servo system and inverter, Siemens PLC to ensure machine run at max. speed and accuracy as premium performance and running stability.
4.PRE-STACK PART
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.
5.Transmission System

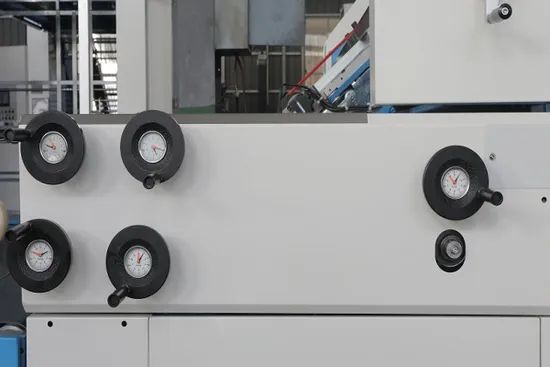

Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.
6. POSITIONING SYSTEM & GLUE ROLLER
Photocell together with Parker Dynamic module and Yaskawa Servo system ensure the accuracy of orientation of top and bottom paper. Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min. glue quantity.
7. TOUCH SCREEN OPERATION SYSTEM
It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot.
OPTIONS:
1.LEADING EDGE FEEDING SYSTEM
Lead edge ensure thick corrugated board like 5 or 7 layers run smoothly even under very curing condition.
2.SHAFTLESS SERVO FEEDER
Shaftless servo feeder is utilized for extra long sheet at flexible motion.
3. AUTOMATIC LUBRICATION SYSTEM
Automatic lubrication pump for all main bearing ensure machine strong endurance even under heavy duty working condition.
FAQ
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have stock product to sell?----Maybe, It depends on which machine you like.
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What's the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.2/5
0 Reviews
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. is a company based in China that offers FOB trade terms. The company specializes in a wide range of machinery including the 3 in 1 Automatic Paperboard Flute Laminating Machine for Making Corrugated Carton Box, 430 Jewelry Box Making Machine, 430 Rigid Box Making Machine, Automatic Cardboard and Corrugated Paper Die Cutting and Creasing Machine, Automatic Chopstick Bag Pasting Machine (ZD-120), Automatic Flatbed Printer 4 Color Offset Printing Machine for Paper Sheet, Fully Automatic Flute Laminating Paperboard Making Machine for Corrugated Box Production Line, Glue Binding Machine with Round Shape, Heat Shrink Packaging Machine for PVC, PP, POF, PE Shrink Film, Digital Display Single Worm Wheel Single Hydraulic Paper Cutter, Double Loop Wire Hole Punching & Binding Machine (ZX-M450), Double Sided Tape Applicator Machine/Paper Taping Machine, Factory Rigid Box Making Machine, Semi Auto Paper Gift Box Forming Machine, Semi Automatic Double Wire Binding Machine (DWB520), Semi-Auto Rigid Box Forming Machine, Semi-Auto Rigid Box Making Machine/Box Making Machine/Box Production Line, Semi-Automatic Rigid Box Making Machine/Paper Box Making Machine/Box Maker, Tda 430 Semi-Automatic Rigid Box Making Machine/Corrugated Box Making Machine, Tda Economy Semi-Auto Rigid Box Making Machine, Tda Semi Auto Rigid Gift Box Making Machine, Tda430 Semi-Auto Rigid Box Making Machine, Xf-PS Vertical Plane Silk Screen Printing Machine/Silk Screen Printer, Zc-400 Glue Back Notebook Spine Binding Machine, Zx-Mini2sb Two Color Semi Auto Mini Pad Printer, Zx1740e Single Color Offset Printing Machine, Zx447 Automatic Paper Printer Press 4 Color Offset Printing Machine with Numbering, Zx8703 Double Head Wire Stapler Flat and Horseback Dual-Purpose, Zxdz-62A Paper Stitching and Folding Machine, Ry-480-4c-IR Innovo Flexo Label Printing Machine, Innovo-56b Offset Press 2 Color Offset Printing Machine with Np System, Innovo Full Automatic Binding Machine (BGZD-6108), Innovo-360 Plateless Digital Ribbon Printing Machine/Digital Hot Foil Stamping Machine, Js White Glue Gluing Machine, Manual Book Cover Case Forming Making Folding Machine, Manual Saddle Stitching Stapler (DQ404C-02), Microcomputer Single Hydraulic Single Worm Wheel Paper Cutter (QZK203DW), Notebook Case / Hard Copy Laptop Making Machine, Notebook Case / Hard Copy Laptop Making Machine Cover Adhesive Closure Machine, Paper Slitting and Rewinding Machine Fqfj, Plastic Disposable Glove Making Machine, Qj-100 Angle Cutter for Cutting Corners on Paper, Rjs Hot Glue Machine/Jelly Glue Gluing Machine, Rjs Paper Manual Glue Machine/Sheet Gluing Machine/Paper Gluer, Rjs1000 Manual Cardboard Glue Machine/Corrugated Board Gluing Machine/Paper Gluer, Small Tabletop Wire Stapler (ZX-666), Sticky Memo Pad Gluing Machine, Sticky Pad Gluing Machine, and Corrugated Cardboard Flute Laminating Machine with Stacker Zgfms.
Company Verification
0/4
Profile Completeness
67%
Avg. Product Score
0/5
Responsiveness
0%
Certification
CE, ISO14001, ISO45001:2018, ISO9001:2015
