Foif Total Station Rts010A Robotic Total Station Geophysical Survey
1-4 PC
$9,8005 PC
$9,600Product information
High-quality Foif Total Station Rts010A Robotic Total Station Geophysical Survey supplied by Shanghai Magcach Technology Co., Ltd.. Bulk wholesale pricing ranges from $9,600 to $9,800 per PC with a minimum order of 1 PC. Inquiry for latest prices.
Vertical Lines:
1
Horizontal Line:
1
After Sales Service:
1 Year
Warranty:
1 Year
Angular Surveying Accuracy:
1"
Minimum Focus:
1.0m
Production Capacity:
100000 Per Year
Reflectorless Measure Distance:
1000m
Specifications
Vertical Lines:
1
Horizontal Line:
1
After Sales Service:
1 Year
Warranty:
1 Year
Angular Surveying Accuracy:
1"
Minimum Focus:
1.0m
Production Capacity:
100000 Per Year
Reflectorless Measure Distance:
1000m
Relfector Plate Distance:
1200m
Accuracy:
2mm
Prism Measurement Distance:
5000m
Specification:
55*32*41cm
HS Code:
9015800090
Origin:
China
Compensator Type:
Double Axis
Trade Term:
FOB, EXW
Trademark:
FOIF
Transport Package:
Plastic Case Internal and Carton External
Model NO.:
RTS010A
Port Of Loading:
Shanghai Port
Payment Term:
T/T
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-03-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier

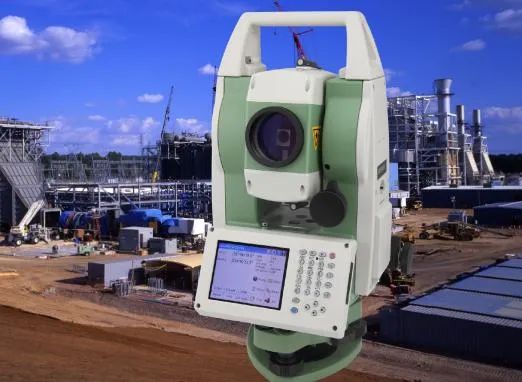

FOIF Total Station RTS010A Robotic Total StationGeophysical Survey Prism Reflective Total Station
Product Description
FOIF RTS010A surveying robotic system, it has efficient motor driver, ATR automatic target aiming function.This equipment offers the best solution for the deformation monitoring, section survey, etc.Product features:"ATR automatic target aiming.Servo motor driver;"
High performance CPU,VGA color touch screen;
Newest WINCE7.0 operating system;
| Telescope | |
| Field of view | 1°30' |
| Minimum focus | 1.0m |
| Image | Erect |
| Magnification | 30x |
| Resolution ratio | 3" |
| Angle Measurement | |
| Measuring method | absolute coding |
| Detection Method | diameter |
| angular surveying accuracy | 1" |
| Least Display | 0.1 " |
| Distance measurement | |
| Non-prism accuracy | 2mm+2³10-6²D |
| reflector plate accuracy | 2mm+2³10-6²D |
| Prism accuracy | 1mm+1³10-6²D |
| Reflectorless measure distance | 1000m |
| Relfector plate distance | 1200m |
| Prism measurement distance | 5000m |
| Accurate measurement time | <0.7s |
| Compensator | |
| Compensator type | double axis |
| Compensate range | ≥±3' |
| Spirit level | |
| bubble tube spirit level | 30″/2mm |
| round spirit level | 8′/2mm |
| laser centralizer | |
| Laser type | 635nm semiconductor laser |
| Accuracy | ±1mm/1.5m |
| Facula | ≤2.5mm/0.5~2m |
| ATR | |
| Working range | 5~700m |
| Position accuracy | ±1mm@100m |
| position time | 3~4s |
| Slow motlon screw | |
| Slow motlon screw | 1 horizonal,1 vertical |
| Motor driver | |
| Servo position accuracy (standard deviation) | 3" |
| Largest rotational speed | 35°/s |
| Low speed micro-rotating control minimum | 1" |
| Display type | |
| Display type | 3.5 inch 320³240 touch screen |
| keyboard | back lighting + auto sensitization |
| Power | |
| Battery | 7.4V 5.8Ah Li battery |
| Working time | 5~8h |
Company Profile:
Shanghai Magcach Technology Co., LTD is a company to provide professional surveying instruments and surveying service,and with rich experience in export trade business . Our company mainly line in all kinds brand survey instruments ,such as GNSS RTK GPS,Total Station, Auto/digital level, Optical /electronic theodolite, Laser distance meter, Handheld GPS,Surveying accessories, Surveying software, etc.
And we keep good cooperation with surveying accessory manufacturer. The Company's employees graduated from engineering.
We not only supply the Survey Instruments and accessories to our products ,we also supply the after sale and the technic Support. We will take the responsibility on the quality of our products .
Packing :
Payment Support :
Delivery&transport:
FAQ:
1. How long we guarantee quality?
Our main products like Auto level, Theodolite, Total Station,Gnss rtk have one year warranty, And we sure the products will be free from maintenance within warranty period If it is not man-made damage,and accessories with 6 month warranty
2.What can you buy from us?
Auto/digital level, Theodolite, Total Station,Gnss rtk,Laser level,Laser distance meter, Echo sounder and surveying accessories like tripods,ranging pole,prism,bipod,staff ,etc
3.What repair service can we provide if products get problem?
For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;
For big issues in one year warranty like EDM board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10-14 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. And the big issues out of one year warranty, the customer should be responsible for all the cost.
4,What payment term we support?
TT, Western union,Money Gram,Pay in cash
5, How will we prepare before shipment?
All products will have been strictly quality checked in factory before sending out.Usually, we will send out the products within 3-5 working days after the payment confirmed and the buyer are responsible for the tax and/or duty charged by their country.
