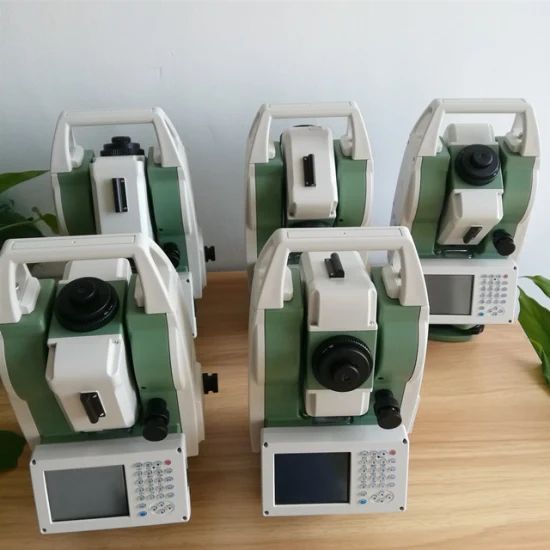

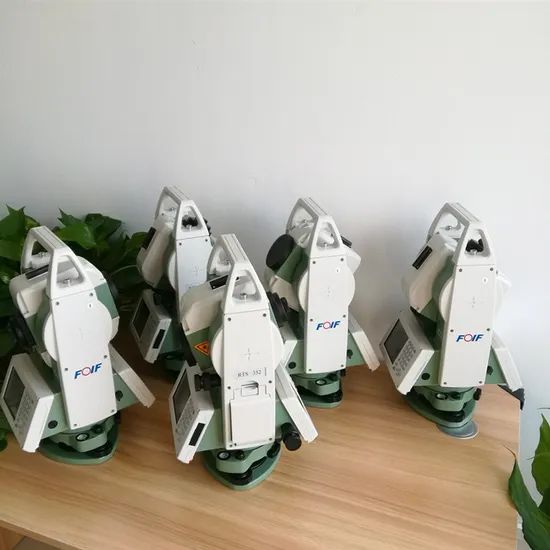

Foif Total Station Rts352 with Bluetooth Origin China Accuracy 2mm Bluetooth Yes Trademark FOIF Warranty 1 Year Model NO. RTS352
1-4 PC
$2,2005 PC
$2,000Product information
High-quality Foif Total Station Rts352 with Bluetooth Origin China Accuracy 2mm Bluetooth Yes Trademark FOIF Warranty 1 Year Model NO. RTS352 supplied by Shanghai Magcach Technology Co., Ltd.. Bulk wholesale pricing ranges from $2,000 to $2,200 per PC with a minimum order of 1 PC. Inquiry for latest prices.
Vertical Lines:
1
Horizontal Line:
1
After Sales Service:
1 Year
Warranty:
1 Year
Production Capacity:
100000 Per Year
Dimensions(Wxdxh):
185X220X360mm
Accuracy:
2mm
Memory:
4GB Internal Memory
Specifications
Vertical Lines:
1
Horizontal Line:
1
After Sales Service:
1 Year
Warranty:
1 Year
Production Capacity:
100000 Per Year
Dimensions(Wxdxh):
185X220X360mm
Accuracy:
2mm
Memory:
4GB Internal Memory
Specification:
55*32*41cm
HS Code:
9015800090
Keyboard:
Alphanumerical Illuminated Key Board, Both Sides
Origin:
China
Trade Term:
FOB, EXW
Trademark:
FOIF
Onboard Software:
Foif Field Genius, Carson Survce, Foif Survey
Transport Package:
Plastic Case Internal and Carton External
Model NO.:
RTS352
Port Of Loading:
Shanghai Port
Payment Term:
T/T
Bluetooth:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-03-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier
China Brand FOIF Total Station Rts 352 Windows Ce/ Fieldgenius Software (RTS352/355-R500/R1000)
Basic Information for the FOIF RTK352 Total Station
|
Model NO.
|
Rts352 |
|
Sensors
|
Built-in Temperature and Pressure Sensors |
|
Screen
|
Color-Display/Touch Screen |
|
Onboard Software
|
Foif Field Genius,Carson Survce,Foif Survey |
|
Optional Item
|
Guild-Light System
|
| Water and Dust Resistance |
IP54
|
|
Specification
|
185*220*360mm |
|
HS Code
|
9015800090
|
Windows CE total station RTS350, 3.5" colour TFT LCD touch screen, FieldGenius on-board software,Guild-light System Optional Total Station (RTS352)
1 Compact design with Windows CE 7.0 operating system
2 3.5" colour TFT LCD (320x240 dots) touch screen, transflective sunlight readable display
3 Professional onboard software: FOIF FieldGenius or CARLSON SurvCE
4 Long reflectorless measuring distance 600m / 1000m (R10)
5 Illuminated keyboard with light sensor, turn on in dark surroundings automatically
6 Multiple data interface: USB, mini USB, RS-232C and Bluetooth
7 Smart battery managing system, display battery in real-time
8 Guide light system for fast stake out measurements
Features:
1 Dual Axis Compensator
2 Dual colour touch screen
3 Bluetooth,USB, mini USB, RS-232C
4 (x2) Batteries with over 10 hours of working time
5 Professional onboard software: FOIF FieldGenius or Carlson SurvCE

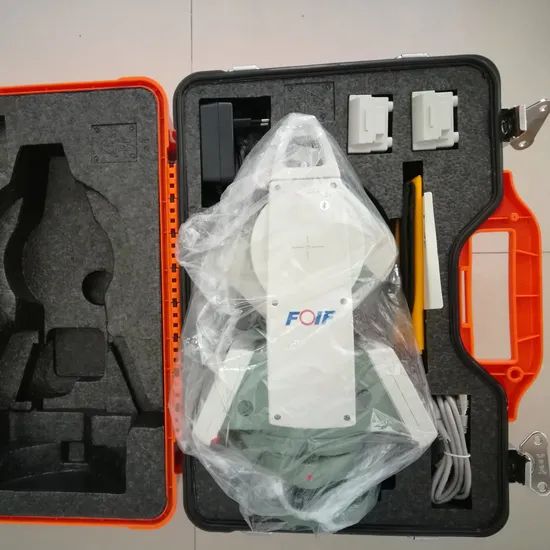

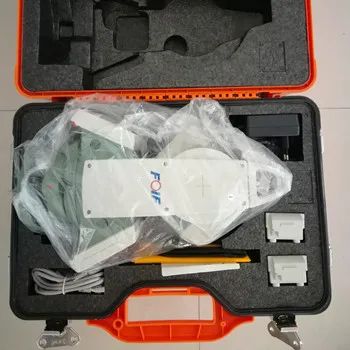

Standard Accessories:
Instrument
Batteries (x2)
Battery charger
Communication cable USB to mini USB
Communication cable RS-232C to USB
Reflective sheets 30×30 mm (x4)
Reflective sheet 60×60 mm (x1)
Tool kit
Rain protection bag
Instruction manual
Carrying case
Available models:
RTS352 , 2" Precision and 600m reflectorless
RTS352-R10, 2" Precision and 1000m reflectorless
| Technical data | |
| Telescope | |
| Length/Image | 156mm/Erect |
| Objective aperture | φ45mm |
| Magnification | 30X |
| Field of view | 1°30' |
| Shortest focus distance | 1.0m |
| Angle measurement | |
| Reading system | Absolute encoder |
| Angle unit | 360°/400gon/6400mil, selectable |
| Display resolution | 0.1″/0.5″/1″(or 0.02mgon/0.1mgon/0.2mgon) |
| Accuracy | 2" |
| Distance measurement(R600) | |
| Display resolution(m/inch selectable) | 0.1mm/1mm |
| Laser class Prism | Class 1 |
| Reflectorless/Reflective sheet | Class 3R |
| Measurement range (Good condition ) | |
| Reflectorless | 1 to 600m |
| Reflective sheet/RP60 | 1 to 800m |
| Single prism | 1 to 5000m |
| Accuracy | |
| Prism | 2mm+2ppm |
| Reflective sheet/RP60 | 3mm+2ppm |
| Reflectorless | 1-150m:3mm+2ppm; >300m:10mm+5ppm 150-300m:5mm+3ppm; |
| Measuring time | Initial:2s |
| Prism | typ.1.0-1.5s |
| Reflective sheet/RP60 | typ.1.5s |
| Reflectorless | typ.1.5-5s, max. 20s |
| Distance measurement(R1000) | |
| Laser class | |
| Prism standard mode/Prism long mode | Class1/Class 2 |
| Reflective sheet | Class 2 |
| Reflectorless standard mode | Class 2 |
| Reflectorless long mode | Class 3R |
| Measurement range (Good condition) | |
| Single prism | 1 to 5000m |
| Reflective sheet/RP60 | 1 to 800m |
| Reflectorless | 1 to 1000m |
| Accuracy | |
| Prism | 2mm+2ppm |
| Reflective sheet/RP60 | 3mm+2ppm |
| Reflectorless | 1-150m: 3mm+2ppm ;
150-300m: 5mm+3ppm;
300-500m:10mm+5ppm; >500m: 20mm+10ppm ; |
| Level vial sensitivity | |
| Plate level vial | 30″/2mm |
| Circular level vial | 8′/2mm |
| Compensator | Dual axis compensator |
| Working range | ±3′ |
| Setting accuracy | 1″ |
| Laser plummet(Standard) | |
| Accuracy | ±1.0mm/1.5m |
| Laser class | Class 2/IEC60825-1 |
| Laser brightness | Adjustable |
| Laser wave length | 635nm |
| Optical plummet(Factory optional) | |
| Accuracy | ±0.8mm/1.5m |
| Image | Erect |
| Magnification | 3 x |
| Focus range | 0.5m to ∞ |
| Display | 3.5" colour TFT LCD (320 x 240 dots) touch screen
transflective sunlight readable display
|
| Power | |
| Battery | 3400mAh Li-ion Rechargeable |
| Output voltage | 7.4V DC |
| Continuous operation time
(Single distance measurement every 30 seconds)
|
8 hours |
| Charger | FDJ6-LI(100V /240V ) |
| Charging time(at +20ºC) | Approx. 4 hours |
| Application programs | |
| Data collection/Stake out/Resection/REM/MLM/Point to line | |
| AREA/Z coordinate/OFFset/3D Road/Traverse adjustment | |
| Tape measurement/section/Axis positioning measurement | |
| Others | |
| CPU | ARM Cortex A8 |
| Memory | 4GB internal memory |
| Sensors | Built-in temperature and pressure sensors |
| Keyboard | Alphanumerical illuminated key board, both sides |
| Guide Light System | Factory optional |
| Weight(including batteries) | 5.5kg |
| Dimensions(WxDxH) | 185x220x360mm |
| Operating temperature | -20ºC to +50ºC |
| Storage temperature | -40ºC to +70ºC |
| Interface | USB host/USB slave/RS-232C/Bluetooth(Optional) |
| Water and dust protection | IP55(IEC60529) |
| Data transfer&processing software | FOIF Geomatics Office(FGO) |
| Data collectorData collector | F58, fully rugged PDA(Optional) |
