YLS32 3150kN 25MPa 800mm Hydraulic Press MACTECH 15D 1Y Origin China Condition New Model NO. YLS32 Trademark MACTECH HS Code 8462619090
Piece
Negotiable
Product information
High-quality YLS32 3150kN 25MPa 800mm Hydraulic Press MACTECH 15D 1Y Origin China Condition New Model NO. YLS32 Trademark MACTECH HS Code 8462619090 supplied by Ningbo MacTech Machinery Co.,Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max Distance Between Slider To The Table:
1250mm
Main Cylinder Maxpressure:
25 MPa
Knock Out Cylinder Stroke:
300 mm
Production Capacity:
300piece/Year
Main Cylinder Nominal Force:
3150kN
Min Distance Between Slider To The Table:
450 mm
Knock Out Cylinder Force:
630kN
Slider Max Travel:
800 mm
Specifications
Max Distance Between Slider To The Table:
1250mm
Main Cylinder Maxpressure:
25 MPa
Knock Out Cylinder Stroke:
300 mm
Production Capacity:
300piece/Year
Main Cylinder Nominal Force:
3150kN
Min Distance Between Slider To The Table:
450 mm
Knock Out Cylinder Force:
630kN
Slider Max Travel:
800 mm
HS Code:
8462619090
Origin:
China
Customized:
Customized
After Sales Service:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, CIP, CPT, Others, FCA
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Trademark:
MACTECH
Condition:
New
Transport Package:
Standard Exporting Wooden Box
Model NO.:
YLS32
Port Of Loading:
shanghai port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
shanghai port
Certificates:
CQC, IQNet, Patent certificate, Patent certificate1
Product descriptions from the supplier
Layout design
Main Parameter
Frame structure
The frame structurefeatures a three-beam and four-pillar configuration, including an upper beam, a lower beam, a sliding member, four pillars, and a locking nut. The upper and lower beams are secured via pillars and locking nuts to form a load-bearing structure, activated after initial tightening under excess pressure. Finite element analysis is applied to the primary fuselage components. The entire system's design leverages computer-aided optimization. The device delivers superior strength and excellent stiffness, all while maintaining an aesthetically pleasing form.
The top beam, base beam, and slider feature a steel plate welding design. The steel components are crafted from premium Q355 grade material sourced from a reputable Chinese manufacturer and joined using mixed gas shielded arc welding. All weld joints undergo polishing and are free from common imperfections like undercutting, slag deposits, cracks, and flow marks; post-welding annealing is performed to relieve internal stresses, followed by shot blasting and application of rust-resistant primer coating. Subsequently, the beams are processed through large-scale gantry milling or floor milling operations using boring and milling machines. The slider’s base is constructed from a single solid steel sheet to guarantee robust structural integrity and load-bearing capacity. "T"-shaped cutouts are provided on both the slider and worktable surface to securely attach molds
Hydraulic cylinder
The primary cylinder features a single-piston design. It is positioned within the central bore of the upper beam, with the piston rod's lower end linked to the slider, and a fill valve located in the large opening at the back of the master cylinder.
The hydraulic cylinder's barrel is constructed from 45# steel to ensure robust strength and structural stability. The piston rod housing undergoes rolling followed by precision grinding to enhance surface finish and minimize inner wall taper and ovality, thereby fulfilling the exacting tolerances needed for international seal materials.
The primary piston cylinder is fabricated from 45 steel forgings. Following heat treatment, the piston rod undergoes hard chromium plating, achieving a hardness range of HRC42 to HRC46. The piston face is precision-ground to enhance surface finish and maintain the required accuracy for imported seal materials.
The piston cylinder's piston head features a copper-finned configuration with a unified, performance-enhanced layout to eliminate the possibility of a discrete piston rod assembly.
Production process of hydraulic presses

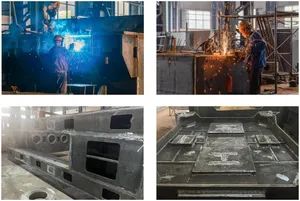

Welding :
Every weld on our machine tools is performed by hand. Prior to welding, all joint surfaces are beveled to ensure complete fusion and enhance weld integrity. Following welding, we carry out manual grinding to guarantee a flawless surface for painting.

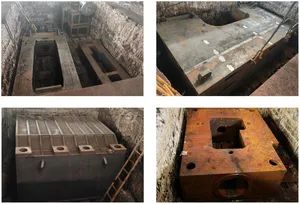

Heating :
Following welding, the frame and slider require tempering and heat treatment to prevent deformation under normal operational conditions.

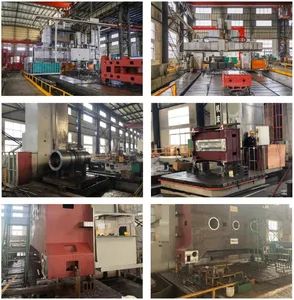

Machining :
Every component is manufactured in-house, ranging from big slides and worktables to tiny fittings. Cylinders are produced through forging, and the cylinder seals come from reputable suppliers like NOK, guaranteeing zero oil seepage over time. Our facility is equipped with large gantry mills, CNC boring and milling systems, vertical machining centers, and other state-of-the-art machinery.

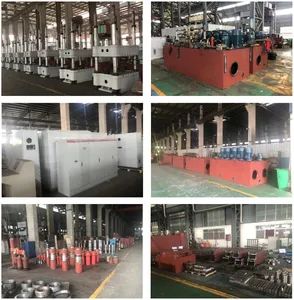

Assembly
Each machine tool component's exactness is guaranteed by the precision machining center. Yet, the ultimate quality of the final product hinges on the skill and diligence of the assembly team. A detailed assembly procedure is strictly followed, and quality checks are conducted at every stage to catch critical defects before final assembly.
Main Parameter
| Model Specification |
Unit | YLS32-315 | |
| Main cylinder nominal force | KN | 3150 | |
| Knock-out cylinder force | KN | 630 | |
| Main cylinder max pressure | Mpa | 25 | |
| slider max travel | mm | 800 | |
| Knock-out cylinder stroke | mm | 300 | |
| Distance between slider to the table | max | mm | 1250 |
| Min | mm | 450 | |
| slider working speed | Fast | mm/s | 100 |
| Slow | mm/s | 6-12 | |
| Return | mm/s | 60 | |
| Table area | LR×FB | mm | 1260×1350 |
| Motor Power | KW | 22 | |
Key components
| NO | NAME | MANUFACTURER | NOTED |
| 1 | Cartridge integrated valve | TaiFeng ( Made in China) | |
| 2 | Pilot solenoid valve | TaiFeng ( Made in China) | |
| 3 | High pressure pump | QiDong brand pump | ★ |
| 4 | Motor | CE motor | ★ |
| 5 | Limited sensores | OMRON | |
| 6 | Button switch | International Famous Brand | |
| 7 | Pressure gauge | Wuxi made | |
| 8 | AC contactor | SIEMENS or | |
| 9 | Transformer | Omron / NOK/Siemens | |
| 10 | brake | ||
| 11 | Relay | ||
| 13 | SEALS | ||
| 14 | PLC | Mitisubishi | |
| 18 | Light curtain | LNTECH |
The frame structurefeatures a three-beam and four-pillar configuration, including an upper beam, a lower beam, a sliding member, four pillars, and a locking nut. The upper and lower beams are secured via pillars and locking nuts to form a load-bearing structure, activated after initial tightening under excess pressure. Finite element analysis is applied to the primary fuselage components. The entire system's design leverages computer-aided optimization. The device delivers superior strength and excellent stiffness, all while maintaining an aesthetically pleasing form.
The top beam, base beam, and slider feature a steel plate welding design. The steel components are crafted from premium Q355 grade material sourced from a reputable Chinese manufacturer and joined using mixed gas shielded arc welding. All weld joints undergo polishing and are free from common imperfections like undercutting, slag deposits, cracks, and flow marks; post-welding annealing is performed to relieve internal stresses, followed by shot blasting and application of rust-resistant primer coating. Subsequently, the beams are processed through large-scale gantry milling or floor milling operations using boring and milling machines. The slider’s base is constructed from a single solid steel sheet to guarantee robust structural integrity and load-bearing capacity. "T"-shaped cutouts are provided on both the slider and worktable surface to securely attach molds
Hydraulic cylinder
The primary cylinder features a single-piston design. It is positioned within the central bore of the upper beam, with the piston rod's lower end linked to the slider, and a fill valve located in the large opening at the back of the master cylinder.
The hydraulic cylinder's barrel is constructed from 45# steel to ensure robust strength and structural stability. The piston rod housing undergoes rolling followed by precision grinding to enhance surface finish and minimize inner wall taper and ovality, thereby fulfilling the exacting tolerances needed for international seal materials.
The primary piston cylinder is fabricated from 45 steel forgings. Following heat treatment, the piston rod undergoes hard chromium plating, achieving a hardness range of HRC42 to HRC46. The piston face is precision-ground to enhance surface finish and maintain the required accuracy for imported seal materials.
The piston cylinder's piston head features a copper-finned configuration with a unified, performance-enhanced layout to eliminate the possibility of a discrete piston rod assembly.
Production process of hydraulic presses
Welding :
Every weld on our machine tools is performed by hand. Prior to welding, all joint surfaces are beveled to ensure complete fusion and enhance weld integrity. Following welding, we carry out manual grinding to guarantee a flawless surface for painting.
Heating :
Following welding, the frame and slider require tempering and heat treatment to prevent deformation under normal operational conditions.
Machining :
Every component is manufactured in-house, ranging from big slides and worktables to tiny fittings. Cylinders are produced through forging, and the cylinder seals come from reputable suppliers like NOK, guaranteeing zero oil seepage over time. Our facility is equipped with large gantry mills, CNC boring and milling systems, vertical machining centers, and other state-of-the-art machinery.
Assembly
Each machine tool component's exactness is guaranteed by the precision machining center. Yet, the ultimate quality of the final product hinges on the skill and diligence of the assembly team. A detailed assembly procedure is strictly followed, and quality checks are conducted at every stage to catch critical defects before final assembly.
