Full Automatic High Speed High Quality Window Pasting Machine
Piece
Negotiable
Product information
High-quality Full Automatic High Speed High Quality Window Pasting Machine supplied by Zhejiang Huayue Packing Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
500 Unit/Year
Speed:
8000PCS/Hour
Size:
8200X2100X1900 mm
HS Code:
8441100000
Automatic Grade:
Automatic
Gluing Mode:
Automatic Paper Paste Gluing Machine
Origin:
China
Driven Type:
Electric
Specifications
Production Capacity:
500 Unit/Year
Speed:
8000PCS/Hour
Size:
8200X2100X1900 mm
HS Code:
8441100000
Automatic Grade:
Automatic
Gluing Mode:
Automatic Paper Paste Gluing Machine
Origin:
China
Driven Type:
Electric
Transport Package:
Export Standard Wooden Case
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
HPM
Glue Type:
Hot Melt Adhesive
Payment Term:
LC, T/T, D/P
Application:
Machinery & Hardware, Food, Commodity, Beverage
Port Of Loading:
Ningbo Port, Shanghai Port
Chain:
One Chain
Packaging Material:
Paper
Function:
Shaped Window& Flat Window
Model NO.:
TC1100
Specification:
TC1100
Packaging:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1997-03-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
168
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier

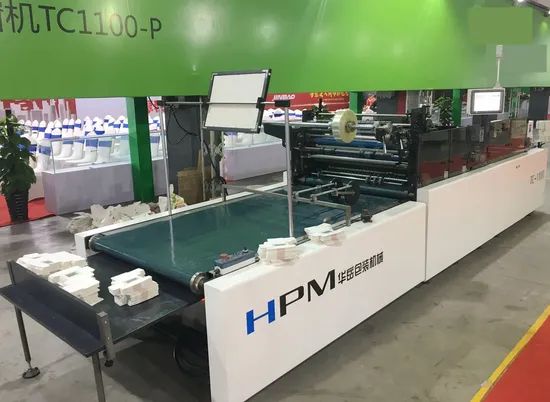

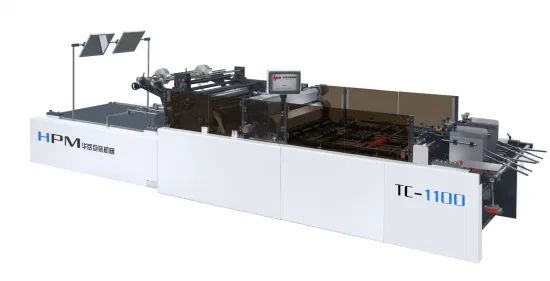

Window Patching Machine TC1100
The newTC1100 from Huayue is designed to apply window from roll as well as cut film by pick and place in one working step. It's designed to do roll film window pasting and corner window pasting by pick&place device two jobs at one time .
The high quality used material allows a constant gentle transport of the material by the machine and to get a high output and less waste. Many control and setup functions guaranty a perfect result, even by running with high speed. In the design of the machine was worked specifically on the user-friendliness.
The machine is equipped with a feeder, chain register, vacuum conveyor, shingling belt, facon glue unit, hot glue unit, pick&place film cut cylinder from roll. All functions and set ups are displayed on a wide touch screen.The machine can be designed according to the special product demand of customers.
Machine component :
Including feeder, main body, shingling belt, electrical cabinets, glue system, pick and place, etc.
Compressed air supply:30 m³/H
Min pressure:0.6Mpa
Voltage:380V
Working temperature:0ºC-35ºC
Technical details:
Local Features:

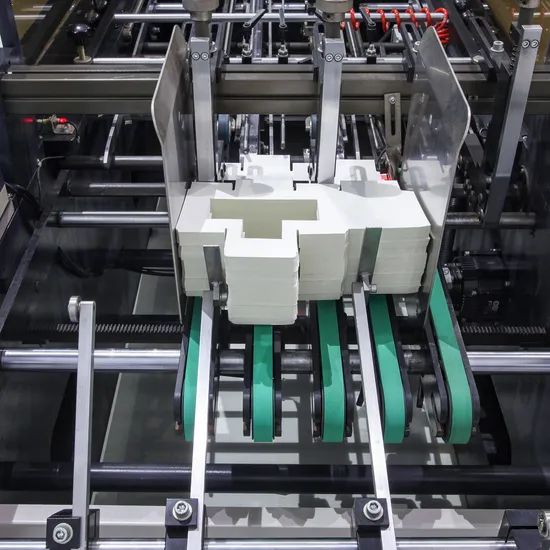

1.Time belt feeder system
With carton lifting device of feed system, according to the different thickness, different specifications of the carton all can be adjusted to ensure the carton repaid and stable into the conveyor belt. By servo control system.
2. Patent for cold glue exchange system
Repaid replacement of cold glue offset plate can be adapt to the rapid adjustment of different products, the switch only needs to replace the product can be offset plate. The cold glue roller adopts the servo control system, can adjust the offset position before and after by the computer, fast and accurate.
3.Patent for gluing system with carried device
The glue roller is adjustable in height or adjustable to adapt the rapid replacement products. Lift the lifting device can't enter in the carton, o prevent contact with the conveyor belt.
4.Patent for glue system can be independent extraction and cleaning.
String of glue system is height adjustable and convenient for cleaning, the system is provided with a transverse guide which can be drawn out for cleaning, saving time.
5. Hot glue system
Hot glue system for cartonshaped filmhas a higher positioning accuracy requirement, with high speed glue guns, photoelectric detection, make sure the shaped film and the carton fixed, prevent with the movement by the carton, high precision for the film
PERSISTENCE INNOVATION COMPETITIVE PRODUCTS
The newTC1100 from Huayue is designed to apply window from roll as well as cut film by pick and place in one working step. It's designed to do roll film window pasting and corner window pasting by pick&place device two jobs at one time .
The high quality used material allows a constant gentle transport of the material by the machine and to get a high output and less waste. Many control and setup functions guaranty a perfect result, even by running with high speed. In the design of the machine was worked specifically on the user-friendliness.
The machine is equipped with a feeder, chain register, vacuum conveyor, shingling belt, facon glue unit, hot glue unit, pick&place film cut cylinder from roll. All functions and set ups are displayed on a wide touch screen.The machine can be designed according to the special product demand of customers.
Machine component :
Including feeder, main body, shingling belt, electrical cabinets, glue system, pick and place, etc.
Compressed air supply:30 m³/H
Min pressure:0.6Mpa
Voltage:380V
Working temperature:0ºC-35ºC
Technical details:
| Model | TC1100 |
| Max. paste carton size | 910X1050 mm |
| Min. paste carton size | 120X150 mm |
| Max. thickness paste carton(E corrugated paper ) | 6 mm |
| Max. thickness paste carton(cardboard paper ) | 200~500g/m² |
| Length of the film(shaped film) | 50~480 mm |
| Width of the film(shaped film) | 70~720 mm |
| Thickness of the film(shaped film) | 0.15mm-0.4mm |
| Length of the film(roll film) | 60~480 mm |
| Width of the film(roll film) | 30~900 mm |
| Thickness of the film(roll film) | 0.03-0.2mm |
| Max. Production speed for shaped film (big size) | ≤2000sheet/h |
| Max. Production speed for shaped film (small size) | ≤4000sheet/h |
| Max. Production speed for roll film (big size) | ≤4000sheet/h |
| Max. Production speed for roll film (small size) | ≤8000sheet/h |
| The tolerance for shaped film | ±0.5mm |
| The tolerance for roll film | ±1mm |
| Machine size (L*W*H) | 8200X2100X1900 mm |
| Machine Net Weight | 5800 kg |
Local Features:
1.Time belt feeder system
With carton lifting device of feed system, according to the different thickness, different specifications of the carton all can be adjusted to ensure the carton repaid and stable into the conveyor belt. By servo control system.
2. Patent for cold glue exchange system
Repaid replacement of cold glue offset plate can be adapt to the rapid adjustment of different products, the switch only needs to replace the product can be offset plate. The cold glue roller adopts the servo control system, can adjust the offset position before and after by the computer, fast and accurate.
3.Patent for gluing system with carried device
The glue roller is adjustable in height or adjustable to adapt the rapid replacement products. Lift the lifting device can't enter in the carton, o prevent contact with the conveyor belt.
4.Patent for glue system can be independent extraction and cleaning.
String of glue system is height adjustable and convenient for cleaning, the system is provided with a transverse guide which can be drawn out for cleaning, saving time.
5. Hot glue system
Hot glue system for cartonshaped filmhas a higher positioning accuracy requirement, with high speed glue guns, photoelectric detection, make sure the shaped film and the carton fixed, prevent with the movement by the carton, high precision for the film
6.Patent film frame system
Patent film frame system can be adjusted on all sides, easy adjustment, ensure the high precision.
Patent film frame system can be adjusted on all sides, easy adjustment, ensure the high precision.
7.Patent for shaped film pick and place system
The first patented shaped film pick and place system in China, especial for thick film, film cut and design, with high speed and precision, using high accuracy reducer; servo control system.

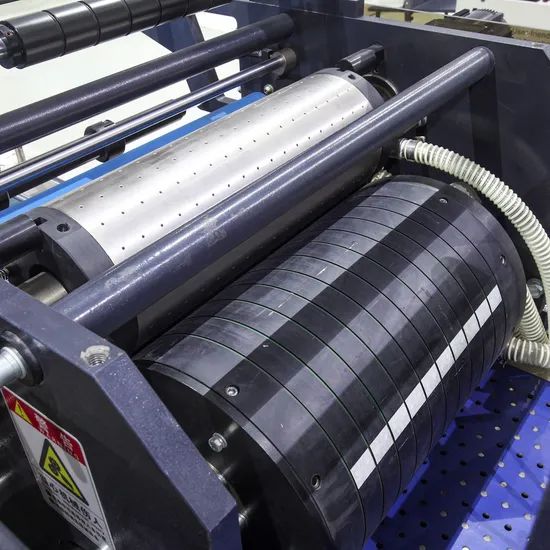

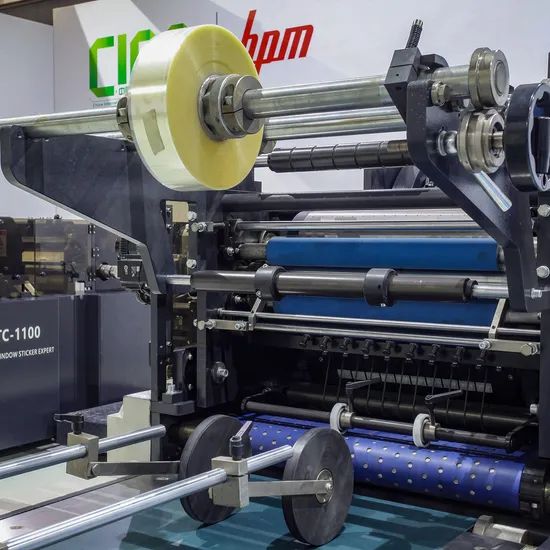

8.Roll film systerm
With roll film system, offer more possibilities to solve different types of films, this can do multi window patching at the same time. Adopts servo control system, can adjust the film location and length by computer, reduce error, the speed go fast.
With roll film system, offer more possibilities to solve different types of films, this can do multi window patching at the same time. Adopts servo control system, can adjust the film location and length by computer, reduce error, the speed go fast.
9.Delivery system
Delivery system was convenient and efficient, lengthened of the workbench, for the glue drying provides more time and improve the quality of finished product.
PERSISTENCE INNOVATION COMPETITIVE PRODUCTS
- More than27 yearshistory for producing paper cutting machine, window patching machine and auxiliary equipment.
- Main drafterfor National Paper Cutting Machine and Knife Grinding Machine Standard.
- PassedISO9001Quality Management System,ISO14001Environment Management System andCE Certification.
- Strategic Coorperation with USAC&PCompany.
- Products were listed into 2010National Torch Plan Program.
- As National High-tech Enterprises in 2009.
