Full Automatic Inline Screen Printer for 850mm Length PCB Printing Machine
1-4 Piece
$1,9995 Piece
$1,888Product information
High-quality Full Automatic Inline Screen Printer for 850mm Length PCB Printing Machine supplied by Shenzhen Jaguar Automation Equipment Co., Ltd.. Bulk wholesale pricing ranges from $1,888 to $1,999 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Printing Accuracy:
+ - 0.025
Repeat Position Accuracy:
+ - 0.08mm
Stencil Separation Speed:
0.1~20mm/Sec Programmable
Warranty:
12 Months
Package Gross Weight:
1400.000kg
Package Size:
176.00cm * 158.00cm * 154.00cm
Dimensions:
2220(W) X 1220(D) X1500(H)mm (Excluding The Height
PCB Size/Max:
400X340mm
Specifications
Printing Accuracy:
+ - 0.025
Repeat Position Accuracy:
+ - 0.08mm
Stencil Separation Speed:
0.1~20mm/Sec Programmable
Warranty:
12 Months
Package Gross Weight:
1400.000kg
Package Size:
176.00cm * 158.00cm * 154.00cm
Dimensions:
2220(W) X 1220(D) X1500(H)mm (Excluding The Height
PCB Size/Max:
400X340mm
Production Capacity:
500 Sets/Year
HS Code:
851419
Weight:
Approx:1300kg
Automatic Grade:
Automatic
Certification:
CCC, ISO, CE
Specification:
CE
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Driven Type:
Electric
Trade Term:
FOB, EXW
Model NO.:
JAGUAR F850
Trademark:
Jaguar
Port Of Loading:
Shenzhen
Origin:
Shenzhen, China
Payment Methods:
Support payments in USD
Payment Term:
T/T
Installation:
Vertical
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-04-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen
Certificates:
Automatic Loader CE Certificates, Business license, Copyright certificate of welding temperature control information system, reflow oven machine CE Certificates, Screen Printing CE Certificates, SGS Audited Supplier, Shenzhen Intelligent Equipment Industry Association Vice President units, SMT PCB Conveyor CE Certificates, Tax Registration Certificate, The copyright certificate of the intelligent adjustment system of welding parameters, Utility model patent certificate-Double chain, Utility model patent certificate-Mesh belt and chain, Wave soldering CE Certificates
Product descriptions from the supplier

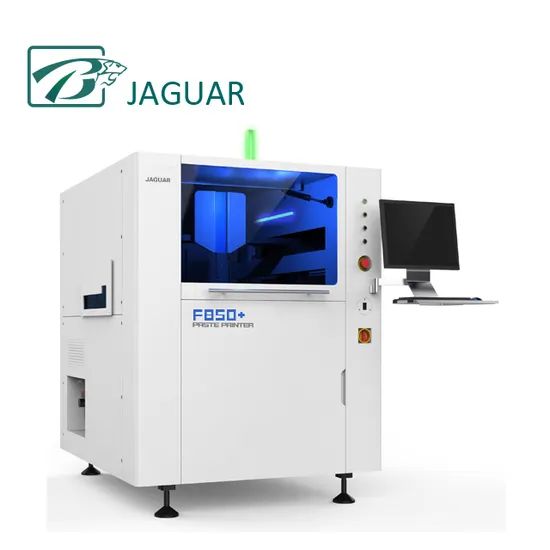

Full Auto Inline Screen Printer F850
Specification
* The following data is measured under environment temperature of 25 ºC and humidity of 60%.
| Items | Parameter | ||
| Repeat Position Accuracy | ±0.01mm | ||
| Printing Accuracy | ±0.025mm(Absolute Guarantees) | ||
| Cycle Time | <11s (Excluding Printing & Cleaning) | ||
| Products Changeover | <5Min | ||
| Screen Stencil Size/Min | 737mm X 737mm(Note: Cleaning Adhesive tape shall be replaced for 737mm stencil) | ||
| Screen Stencil Size/Max | 1100mm X 900mm | ||
| Screen Stencil Thickness | 20mm ~ 40mm | ||
| PCB Size/Min | 100X80mm | ||
| PCB Size/Max | 850X500mm | ||
| PCB Thickness | 0.8~6mm | ||
| PCB Warpage Ratio | <1%(Based on diagonal length) | ||
| Bottom of Board Size | 13mm(standard configuration), 25mm(optional configuration) | ||
| Edge of Board Size | 3mm | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Transport Speed | 100-1500mm/sec Programmable | ||
| Board Location | Support System | Magnetic pin/ Side support block/ Flexible automatic pin(optional) | |
| Clamping System | Elastic side clamping/Vacuum nozzle/Elastic Z-direction tabletting(optional) | ||
| Print head | Programmable integrated motor driven and pneumatic control print head | ||
| Squeegee Speed | 10~200mm/sec | ||
| Squeegee Pressure | 0~0.5MPa with adjustable pressure reducing meter valve | ||
| Squeegee Angle | 60°(Standard)/ 55°/ 45° | ||
| Squeegee Type | Steel squeegee (standard), rubber squeegee, customizable other types of squeegee. | ||
| Stencil Separation Speed | 0.1~20mm/sec Programmable | ||
| Cleaning Methods | Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods) | ||
| Table Adjustment Range | X: ±4mm;Y:±6mm;θ:±2° | ||
| Type of Image Fiducial Mark | Standard geometry shape of fiducial mark, bonding pad / stencil hole | ||
| Camera System | Single digital camera with upward/downward vision system | ||
| Air Pressure | 4~6Kg/cm2 | ||
| Air Consumption | Approx 0.07m3 /min | ||
| Control Method | PC Control | ||
| Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW | ||
| Machine Dimensions | 1740mm(W) x 1560mm(D) x 1510(H)mm (excluding the height of indicating lighthouse) | ||
| Weight | Approx:1300Kg | ||
| Operation Temperature | -20°C ~ +45°C | ||
| Operation Humidity | 30%~60% | ||
Product Functions:
F850 is a high accuracy extra dimension solder paste printer designed for high precision screen printing or stencil printing in SMT industry.
2. Product Features:
a) Wide compatibility for PCB dimensions from 100mm x 80mm to 850mm x 500mm and PCB thickness from 0.8mm to 6mm.
b) High printing resolution
1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing.
c) Automatic control improves production efficiency, quality control and saves production cost:
1. Automatic stencil positioning
2. Automatic PCB alignment
3. Automatic adjustment of squeegee pressure
4. Automatic printing
5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)
d) Adopt company independently developed suspended print head and programmable automatic pressure adjustment system with pressure closed-loop feedback. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.
e) Programmable motor controls squeegees separation speed and distance among squeegees, steel mesh and substrate board to realize multi-method separation
f) Multi-functional PCB positioning and clamping system for fast, convenient and accurate PCB positioning.
g) Upward and downward visual positioning.
h) Built-in image processing system
i) Support 2D,SPC functions
3. Applicable pitches of Components
a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
b) IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball diameter of 0.2 mm.
c) Printing size:100mm x 80mm ~850 mm x 500 mm
d) PCB Thickness:0.8 mm ~ 6 mm
e) FPC Thickness:thickness<= 0.8 mm (excluding jig)
4. Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technologyformore than10years, and our engineers have more than 20 years experience.
