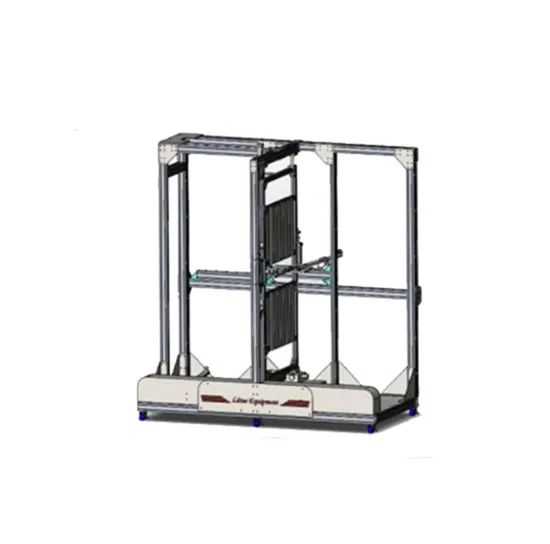

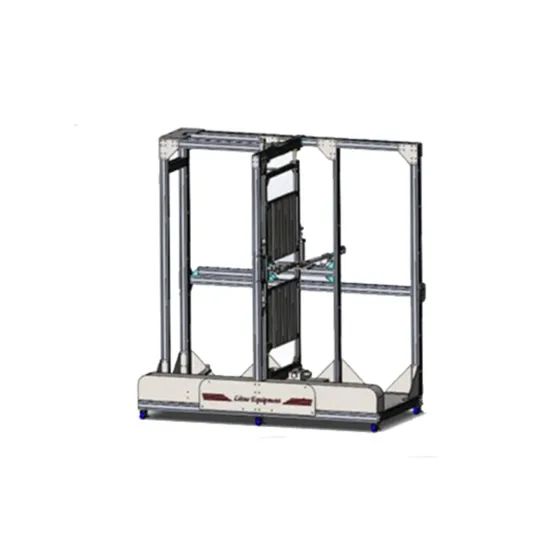

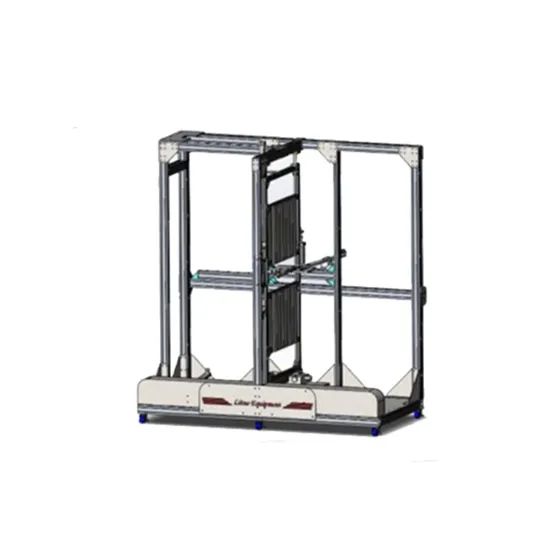

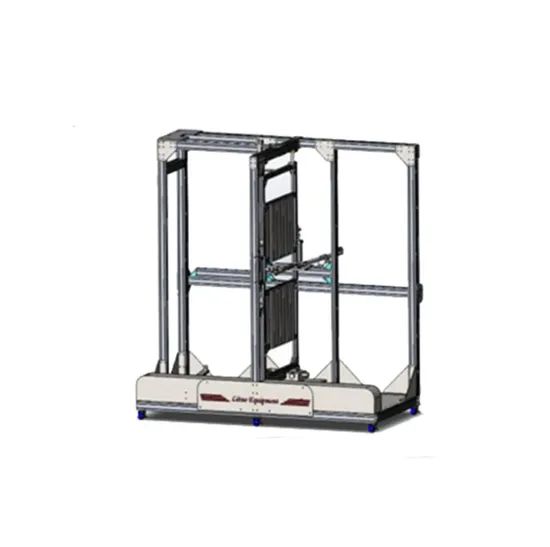

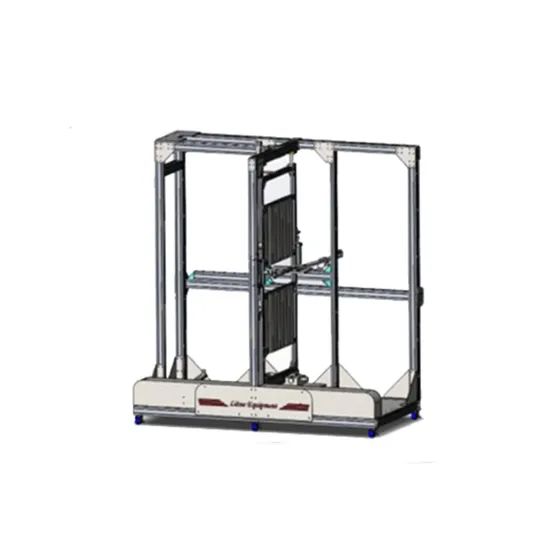

**Single Point Locking Device Fatigue Testing Machine**

**Product Description**

This Single Point Locking Device Fatigue Testing Machine is a specialized device designed for conducting accelerated life and durability tests on single point locks (Types I, II, and III) in strict accordance with national standards such as GB/T [Relevant Standard Number]. Its primary function is to verify compliance with the performance requirements specified in section 4.4.4 of the standard by subjecting the locks to a high number of predefined actuation cycles under controlled conditions.

**Key Testing Capabilities:**
*   **Endurance Verification:** Executes precisely controlled, repetitive actuation cycles to simulate long-term use. It performs up to **150,000 cycles** for Type I and Type II locks, and **50,000 cycles** for Type III locks.
*   **Performance Assessment:** Measures the **operating force** (for Type I) or **operating torque** (for Type II & III) before and after the completion of the specified cycles. This determines if the lock's performance remains within the allowable limits set by the initial performance criteria (clause 4.4.1).
*   **In-Process Monitoring:** Allows for periodic performance checks (e.g., after every 5,000 cycles) to monitor the degradation trend of the operating force or torque throughout the test duration.

**System Features:**
*   **Standardized Fixturing:** Provides rigid mounting platforms and fixtures to install the lock in its actual use orientation, ensuring the pawl does not collide with the strike plate during movement (for Types I & II).
*   **Programmable Control:** The testing frequency is fully adjustable within the standard-specified range of **10 to 15 cycles per minute**. The target cycle count is preset for automated operation.
*   **Automation & Data Acquisition:** Integrated force/torque sensors and data logging software automatically record key parameters. The system generates detailed test reports, enhancing efficiency, objectivity, and traceability.
*   **High Reliability:** Utilizes a robust pneumatic or servo-drive system to ensure stable, consistent, and uninterrupted operation for extended testing periods.

**Standard Test Procedure:**
1.  **Setup & Installation:** Securely mount the lock unit onto the appropriate test fixture as per the standard.
2.  **Parameter Configuration:** Set the lock type (I/II/III), target cycle count, test frequency, and any intermediate measurement intervals via the control interface.
3.  **Test Execution:** Initiate the automated test sequence. The machine will repeatedly engage and disengage the lock mechanism.
4.  **Measurement & Evaluation:** Upon reaching intermediate or final cycle counts, the machine halts automatically to measure and record the current operating force/torque. Results are compared against standard requirements.
5.  **Reporting:** The system compiles a comprehensive test report, including performance curves, key data points, and a pass/fail determination.

This machine is an essential tool for quality control laboratories, R&D centers, and manufacturers of door/window hardware and locksets, ensuring product durability and reliability meet stringent national standards.
