Fully Automatic Co-Extruded WPC Composite Decking Boards Door Making Machine Wall Panel WPC Extrusion Machine
1 Set
$35,0002 Set
$34,5003 Set
$34,000Product information
High-quality Fully Automatic Co-Extruded WPC Composite Decking Boards Door Making Machine Wall Panel WPC Extrusion Machine supplied by Qingdao Tracy Future Tech Plastic Co., Ltd.. Bulk wholesale pricing ranges from $34,000 to $35,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
30-50 Sets Per Year
Delivery Date:
30days - 60days
HS Code:
84772090
Specification:
900mm (Customized)
Automation:
Automatic
Computerized:
Computerized
Extruder Type:
Conical Double Screw Extruder
Screw Channel Structure:
Deep Screw
Specifications
Production Capacity:
30-50 Sets Per Year
Delivery Date:
30days - 60days
HS Code:
84772090
Specification:
900mm (Customized)
Automation:
Automatic
Computerized:
Computerized
Extruder Type:
Conical Double Screw Extruder
Screw Channel Structure:
Deep Screw
Exhaust:
Exhaust
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Hanhai
Engagement System:
Intermeshing
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Feeding Mode:
Multiple Feed
PVC Window:
PP PE PVC Wood PVC Profile Machine
Another Name2:
PP PE PVC Wood Plastic WPC Profile Production Line
Name:
PVC WPC Plastic Processed Extrusion Line
Product Type:
Profile Extrusion Molding Machine
Port Of Loading:
Qingdao Port
Origin:
Qingdao, China
Model NO.:
SJSZ55, SJSZ65, SJSZ80, SJSZ92, SJSZ120
Assembly Structure:
Separate Type Extruder
Exrtruder Diameter 2:
Sj65, Sj75, Sj80, Sj92, Sj120, Sj130, Sj150
Exrtruder Diameter 11:
Sjsz65, Sjsz75, Sjsz80, Sjsz92, Sjsz120, Sjsz130
Screw:
Twin-Screw
Another Name3:
UPVC Window Production Machine
Plastic Processed:
WPC
Products:
WPC Door Frame Production Line
Extruders:
WPC Extruder Machine
Another Name1:
WPC Profile Extruding Machinery
WPC Line:
WPC Profile Machine
Making Machine:
WPC Profile Making Machine
Another Name:
WPC Wall Panel Door Solid Foam Board Extrusion Lin
Applications:
Wide Door Board Production Line
Transport Package:
by Sea
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-09-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
4
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Product descriptions from the supplier
Fully Automatic Co-Extruded WPC Composite Decking Boards Door Making Machine Wall
Panel WPC Extrusion Machine
Panel WPC Extrusion Machine
| NO. | Specification | Quantity |
| 1 | Double-screw extruder with fully automatic loading system | 1 set |
| 2 | Die head | 1 set |
| 3 | Calibrating and cooling device | 1 set |
| 4 | Haul-off machine | 1 set |
| 5 | Cutting machine | 1 set |
| 6 | Stacker | 1 set |
Details Images:
1.Plastic Lumber Profile Machinery Double-screw extruder with fully automatic loading system

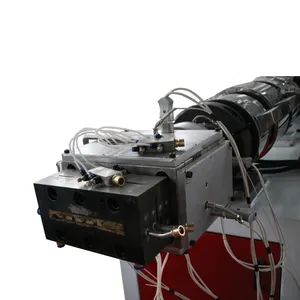

2.Plastic Lumber Profile MachineryDie head
3.Plastic Lumber Profile MachineryCalibrating and cooling device
4.Plastic Lumber Profile MachineryHaul-off machine
5.Plastic Lumber Profile MachineryCutting machine
6.Plastic Lumber Profile MachineryStacker
Final Product:
Information And Pictures About Productions Of The Machine:
| Machine Model | Production Width (mm) | Production Thickness (mm) | Production Capacity (kg/h) | Total Power (kw/h) |
| SJSZ80/156 | 1220 | 3~30 | 400~450 | 140 |
| SJSZ92/188 | 2440 | 3~50 | 550~600 | 230 |
WPC Door And Window Frame Wall Panel Composite Exterior Wall Cladding Interior Door Production Line Machine
Equipment is suitable for producing PP PE PVC WPC profiles in all shapes. The products are widely used for pallet,
packaging plate, floor, and out door decorating materials,widely application.
Equipment is suitable for producing PP PE PVC WPC profiles in all shapes. The products are widely used for pallet,
packaging plate, floor, and out door decorating materials,widely application.
|
Technical parameter
|
|||||
|
Model
|
YF180
|
YF300
|
YF600
|
YF800
|
YF1000
|
|
Max.width of product(mm)
|
180
|
300
|
600
|
800
|
1000
|
|
Extruder mode
|
SJZ51/105
|
SJZ65/132
|
SJZ80/156
|
SJZ80/156
|
SJZ92/188
|
|
Extrusion capacity(kg/h)
|
150
|
180
|
360
|
360
|
600
|
|
Motor power(kw)
|
22
|
37
|
55
|
55
|
110
|
|
Total length(m)
|
18
|
22
|
26
|
28
|
32
|
Main Features
1.Our WPC machine has features of low consumption,low noise,stable running..
2.This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC
machine can produce wpc products with different shapes.
Flow Process
1.PE/PP+wood extrusion line craft:
Wood milling(wood powder,rice husk)-- Mixer(plastic+wood)--Granulator--Wpc extrusion line+Auxiliary
2.PVC+wood extrusion line craft:
Wood milling(wood powder,rice husk)--Mixer(plastic+wood)--Wpc extrusion line+Auxiliary
Technical Specification of SJSZ92/188 PVC Wood Door Profile Prodcution Line
1.Main technical parameters:
2.Detailed specification of the line:
1.SJSZ-92/188conicaltwin screw extruder one set
2. Mould one set
3.Vacuum calibration unit one set
4.Hauling off machine one set
5.Horizontal Cutting machine one set
6.Stacker one set
1.Main technical parameters:
1. Suitable material: PVC&Wood
2. Output Capacity
The output capacity varies with the materials and the operation conditions.
1.Product specification:
Width 900mm
Thickness 30~40mm
1.SJSZ-92/188conicaltwin extruder: one set
Customers comments:
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time:
30 -60 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount)
should be paid before delivery by T/T or irrevocable L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
1 year.
2.This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC
machine can produce wpc products with different shapes.
Flow Process
1.PE/PP+wood extrusion line craft:
Wood milling(wood powder,rice husk)-- Mixer(plastic+wood)--Granulator--Wpc extrusion line+Auxiliary
2.PVC+wood extrusion line craft:
Wood milling(wood powder,rice husk)--Mixer(plastic+wood)--Wpc extrusion line+Auxiliary
Technical Specification of SJSZ92/188 PVC Wood Door Profile Prodcution Line
1.Main technical parameters:
2.Detailed specification of the line:
1.SJSZ-92/188conicaltwin screw extruder one set
2. Mould one set
3.Vacuum calibration unit one set
4.Hauling off machine one set
5.Horizontal Cutting machine one set
6.Stacker one set
1.Main technical parameters:
1. Suitable material: PVC&Wood
2. Output Capacity
| Extruder Model | Extrusion Material | Extruder Output Capacity |
| SJSZ-92/188 | PVC+Wood+other material | 450-500kg/h |
1.Product specification:
Width 900mm
Thickness 30~40mm
- The height of the centerline of the extruder: 1000mm
- Power: as per customers power.
1.SJSZ-92/188conicaltwin extruder: one set
| 2.1 Model | SJSZ-92/188 |
| 2.2 High efficiency screw | Bimetallic Screw-Zhoushan Huachen or as you request |
| Diameter Effective length of the screw |
92mm /188mm 2550mm |
| Material | 38CrMoAlA |
| Surface Treatment Nitrided depth Rotation speed Total motor power Rotation speed |
Nitrided and Polished
300kw 1500r/min |
| 2.3 Barrel | Zhoushan--Huachen |
| Material | 38CrMoAlA |
| Inner Surface treatment | Nitrided, ground |
| Heating power | 70KW |
| 2.4 Gearbox | Wuxi Jiawei |
| Material of the house | QT200 |
| Gear type | Helical gears |
| Material of the gear | 20CrMnTi |
| Heat treatment of the gear surface | Quenching |
| Material of the axes | 40Cr |
| Bearings | Imported high bearing |
| Lubricating system | Press system |
| 2.5 Automatic feeder | Spring feeder |
| Method Max transporting quantity Power |
With spring powder load system 800kg/h 4.2kw |
| 2.6 Driving motor | Simens Beide |
| Method | AC motor, 110KW |
| Control system | ABB inverter |
| Power | 3P*380V*50HZ or 220V*60HZ (as per your power) |
| 2.7 Dimension | 6mx2mx2.8m |
| 2.7 Electricity equipment: | |
Electrical system
|
|
| 3.Mould 3.1 Head of mould Heating 3.2 Forming mould Length of Vacuum calibration mould Operating method Material of vacuum calibration set 4 SDT-7000 vacuum calibration unit |
ONE SET- Hubei Hongxingor as your request P20 steel HRC28~40 with heater and ring 3 segments 400mm pneumatic elevation 3Cr17 stainless steel One set |
| 4.1 Model | SDT-7600 |
| Flask length Switch and valve for intaking air and water |
7600mm equipped with the machine |
| Power of vacuum pump Power of water pump |
3×7.5kw 1×5.5kw |
| Total dimension of the machine | 7600×2500×2000mm |
| Weight | 3500kg |
| 4.2 Infra regulating system | one set |
| 4.3 SIC-15W cooling water machine Power External dimension Weight |
one set 15kw 1550×900×1240mm 380kg |
| 5. BQY-800 hauling off machine one set Drawing with track tape frequency regulation Up and down track tape clamping air tank clamping Elective specification W1000×L3000mm Drawing power of blower 7.5kw Drawing thread speed 0.1~1 m/min External dimension 4000×2150×2350mm Weight 3000kg Valid width of cutting 3000mm Largest hauling-off strength 120KN Largest clamping strength 80 KN |
|
| 6. Horizontal Cutting Tractor 6.1 Horizontal cutting |
Circling saw cutting, air tank moving and pneumatic clamping |
| Valid width of cutting | ≥1000mm |
| External dimension | 3mx1.6mx1.45m |
| 6.2 Dust collector | one set |
| 7.XLT-800 Automatic Stacker one set Automatic pilling device is composed of a machine tacked, a supporter, a discharge racket and an air cylinder. |
|
| Weight 1000kg Mode of discharge automation External dimension 3.5mx1.5mx1.45m |
|
Customers comments:
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time:
30 -60 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount)
should be paid before delivery by T/T or irrevocable L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
1 year.
