Fully Automatic Hot Foil Stamping Machine for Packaging
1 Set
$105,0001 Set
$55,000Product information
High-quality Fully Automatic Hot Foil Stamping Machine for Packaging supplied by Jiangsu Ketchview Machinery Technology Co., Ltd.. Bulk wholesale pricing ranges from $55,000 to $105,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
20set/Month
HS Code:
8443192900
Automatic Grade:
Automatic
Trade Term:
FOB, CIF, CFR
Specification:
GST1050
Model NO.:
GST1050
Hot Stamping Pressure Factor:
Hot Stamping Temperature
Trademark:
Ketchview
Specifications
Production Capacity:
20set/Month
HS Code:
8443192900
Automatic Grade:
Automatic
Trade Term:
FOB, CIF, CFR
Specification:
GST1050
Model NO.:
GST1050
Hot Stamping Pressure Factor:
Hot Stamping Temperature
Trademark:
Ketchview
Payment Term:
LC, T/T, D/P
Usage:
Label Printer, Paper Printer
Application:
Leather Heat Transfer, Business Card, Plastic Flexible Packaging, Arts and Crafts, Labels and Tags, Apparel
Suitable Material:
Paper
Plate Type:
Screen Printer
Port Of Loading:
Shanghai Port
Origin:
Shanghai, China
Decisive Factor:
Temperature
Color & Page:
Two Colors
Transport Package:
Wooden
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
35
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

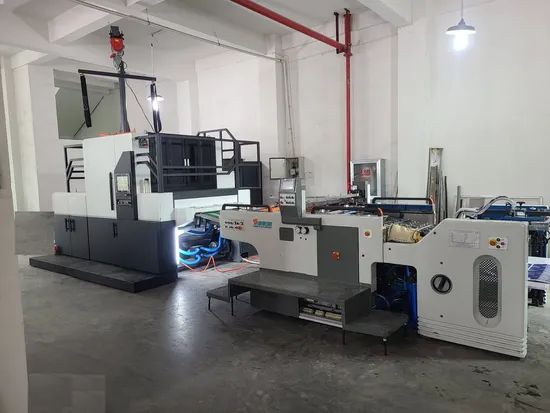

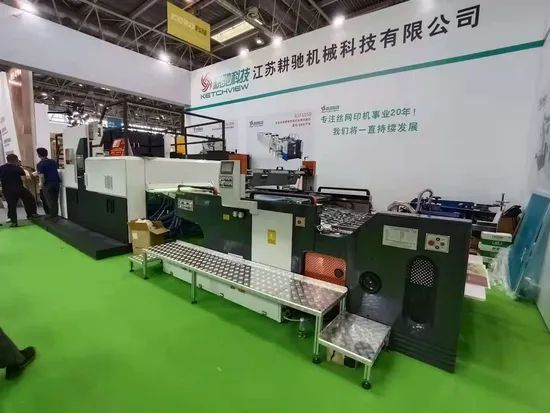

Automatic screen printing machine + Cold foil stamping& Hologram image transfer
1. Automatic screen printing machine
Brief Introduction
GST Series Automatic Stop-cylinder Screen Printing Machines represent advanced evolutions of traditional Rotary Cylinder Printing Machines. By utilizing the proven "Stop-cylinder" mechanism rather than the conventional "reciprocating" system, these machines guarantee precise paper alignment prior to printing and significantly lower material waste. Additionally, the stable performance at high speeds and continuous rotation enhances overall registration accuracy.
1. Automatic screen printing machine
Brief Introduction
Technical Parameters
| MODEL | GST-720 | GST-800 | GST-1020 | GST-1050 |
| Max.Paper Size(mm) | 720×520 | 800×600 | 1020×720 | 1050×750 |
| Min.Paper Size(mm) | 350×270 | 350×270 | 560×350 | 560×350 |
| Max.Printing Size(mm) | 720×510 | 800×590 | 1020×710 | 1050×720 |
| *Paper Thickness(g/m2 ) | 90-250 | 120-250 | 90-350 | 90-350 |
| *Printing Speed(p/h) | 500--3000 | 600-3000 | 600-3000 | 600-4000 |
| Screen Frame Size: (mm) | 880×880 | 1070×1070 | 1280×1140 | 1300×1170 |
| Total Power:(kw) | 8 | 11 | 15 | 15 |
| Total Weight:(kg) | 3500 | 4000 | 5500 | 5500 |
| Dimension(mm) | 3000×2300×1700 | 3500×2480×1710 | 3900×2900×1800 | 3800×3100×1800 |
Main Features
Equipped with a variable frequency brake motor, the system runs via centralized management from a Mitsubishi PLC. The WEINVIEW touch panel shows all operational parameters, simplifying and enhancing the printing process.
Adjusts Japan KEYENCE optical fiber alignment sensing to detect paper shortages or jams, then lifts and halts the mechanism to minimize paper loss during printing
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
All electrical parts are sourced from Schneider, Mitsubishi, and Omron, significantly enhancing system reliability and lowering upkeep and repair needs
The printing cylinder features 316L stainless steel, ensuring accuracy and long-term reliability. Its adaptable paper tooth elasticity allows seamless printing on various paper thicknesses, anytime.
The exit paper panel rotates 90 degrees, facilitating simple screen cleaning. The screen offers vertical, lateral, and directional positioning adjustments
Advanced lubrication management system: critical drive components receive automatic lubrication, significantly enhancing operational accuracy and equipment durability. Key bearings are sourced from NTN and NSK brands
8. All pneumatic components adopt Japanese SMC brand, air pump adopts Backer brand from Germany;
9. The squeegee and feeder table are all precisely controlled the Yaskawa frequency
Details

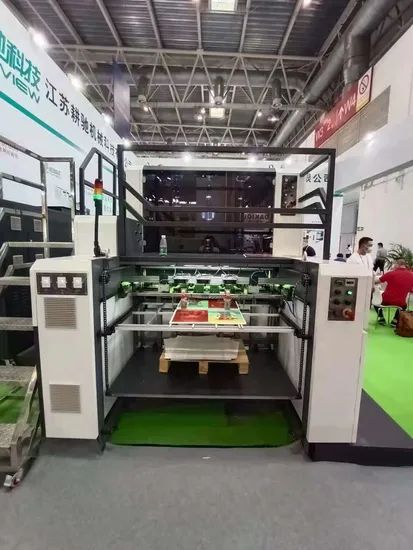

Four suction and four delivery feeder system, double layer suction cup to make it stable delivery even if the sheet is uneven.
Backer vacuum pump from German, large air volume, long life, stability and reliability
New designed pull and push lay
Imported stain steel delivery board, less static and friction. Rubber and the nylon wheel are suitable for the thin and thick paper adjustment
Double vacuum conveyor belt, suitable for different sheet size, avoid the damage to sheets
Panasonic PLC, German Muller electrical system, Yaskawa inverter, to ensure the reliability and stability of the system, the redesigned operation panel operation more convenient

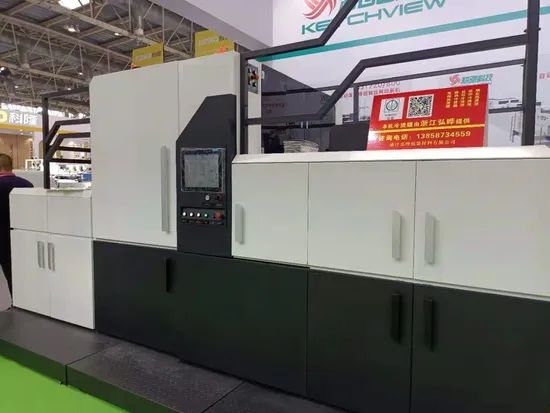

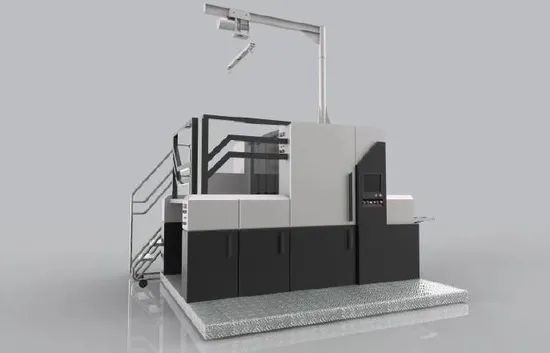

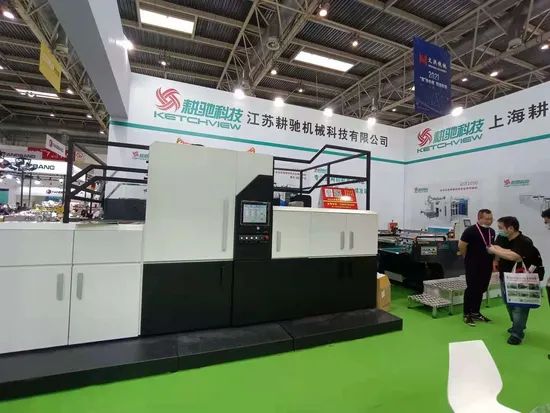

Automatic Cold foil & Hologram image transfer
The UVY-104AC transfer system is an advanced, in-house designed solution that integrates seamlessly with printing, UV coating, screen printing, and other machinery to enable laser transfer and cold foil stamping, significantly reducing operational expenses and footprint.The equipment has won a number of technical awards, suitable for cigarette boxes, wine boxes, cosmetics boxes, gift boxes and other high-grade printing
Cold foil stampingrepresents an innovative method for creating a metallic finish, developed by our Chinese company in 2004, with the initial model unveiled at the Drupa exhibition in 2008. The process involves applying a specialized adhesive to a designated region of the base material, followed by pressing an aluminum foil layer onto it. The adhesive bonds the foil to the surface, and once the foil and paper are separated, the aluminum is fully transferred to the paper, resulting in a distinctive metallic appearance.
Hologram image transferThis method, known as HIT technology, represents a novel approach to creating holographic appearances on surfaces, first developed by our Chinese company in 2000, with the initial machine prototype completed in 2003. The process involves applying holographic image film (also referred to as hologram transfer film) directly onto printed paper using UV coating, resulting in the image being imprinted onto the UV layer—similar to how a fingerprint is left on a surface
Technical Parameters
| Max. Working size (mm) | 740×1040 |
| Min. Working size (mm) | 393×546 |
| Max. Printing size (mm) | 730×1030 |
| Sheet Weight (g/m2) | 90-350 |
| Max. Diameter of Film (mm) | 500 |
| Power of Ultraviolet Radiation(kw) | ≈36 |
| Max. Mechanical speed (sheet/h) | 8000 |
| Max. Width of Film (mm) | 1040 |
| Outer Dimensions (L×W×H)(m) | ≈4.2×4.8×3.8 |
