Fully Automatic Internal Edge Grinding Glass Milling Machine, Shower Room CNC Glass Special Equipment for Construction
Piece
Negotiable
Product information
High-quality Fully Automatic Internal Edge Grinding Glass Milling Machine, Shower Room CNC Glass Special Equipment for Construction supplied by Jinan Hengsheng Cnc Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Working Area:
1000*2500mm
Specification:
1000*2500mm
Warranty:
1year
Equipment Size:
3600*2250*1800mm
HS Code:
8464901900
Origin:
China
Trade Term:
FOB
Trademark:
HengSheng
Specifications
Working Area:
1000*2500mm
Specification:
1000*2500mm
Warranty:
1year
Equipment Size:
3600*2250*1800mm
HS Code:
8464901900
Origin:
China
Trade Term:
FOB
Trademark:
HengSheng
Payment Term:
To be discussed
Cooling Systemj:
Water Cooling
Transport Package:
Wooden Crate or Wrapping Film
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Product descriptions from the supplier
SONA2024 2.2.1
Grooving
Internal edge grinding
function
Drilling
Drilling circular or oval holes in specified locations on the glass for installing hinges, handles, screws, and other accessories (such as door and window glass, cabinet glass);
Grooving
Creating slots or grooves on the edge or surface of the glass to accommodate glass splicing, inlaying, or hardware fixing (such as the slots in shower enclosure glass, and the mounting grooves in appliance glass);
Internal edge grinding
After grooving or drilling, the inner edges can be ground. This effectively eliminates edge chipping and improves the yield of tempered glass.
Product advantages
Mechanical Structure
Single cantilever machine structure, simple and convenient, facilitating glass loading and unloading. Three-sided open design allows for unlimited glass size processing. Constructed from thick-walled square tubing, machined by a five-axis machining center, and treated with high-temperature annealing, sandblasting, and painting to eliminate internal stress, minimizing deformation, increasing rigidity, and ensuring long-term mechanical stability.
Spindle
7.5KW spindle, reaching speeds of up to 24,000 rpm, with stable output. Spindle positioning accuracy reaches ±0.01mm, and repeatability reaches ±0.005mm.
Operating System
Professional glass drilling and milling control system with a built-in rich image library and multiple processing modes. Touchscreen operation for easy use.
Motion System
High-precision servo motion system equipped with high-speed, low-noise transmission components.
Technical Specifications
(Custom configurations available upon request.)
model | HS-1025 | HS-1325 | HS-3015 |
Travel (Scope of work) | 1000mm*2500mm*200mm | 1300mm*2500mm*200mm | 3000mm*1500mm*200mm |
External diameter size | 2100mm*3600mm*1800mm | 2250mm*3600mm*1800mm | 5200mm*2250mm*1800mm |
Increase the bed body | Thick wall square pipe welding,Z axis travel to countera 200mm | ||
operating system | Special system for glass drilling and milling | ||
Spindle motor | 7.5kw Special spindle for drilling and milling | ||
main shaft speed | 0-24000 | ||
frequency transformer | Bezd frequency converter | ||
Drive and motor | Professional servo motors (1.5KW for X and Y axes, 750W for Z axis with brake) | ||
Working table | The countertop uses 3 thick steel plates and 25 thick PVC plates | ||
reduction box | Japanese Shimpo gear reducers | ||
rack | High precision grinding teeth strip | ||
Lubrication | self-acting lubricator | ||
Repeat positioning accuracy | 0.025mm | ||
Glass fixing mode | Vacuum pump + 4 vacuum adsorption plate + 2 circular suction cups (special shape suction cup needs to be customized) | ||
working voltage | 380V Customizable | ||
Standard model (Size can be customized)
HS-1025 1000mm*2500mm HS-1325 1300mm*2500mm HS-3015 3000mm*1500mm
If the width exceeds 1.5m, it can be separated into separate container outlets
Feature-rich
Tools mature
Glass size is not limited

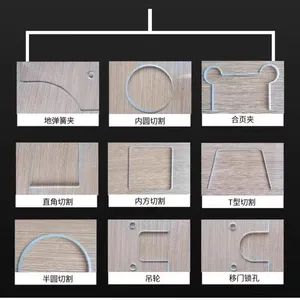

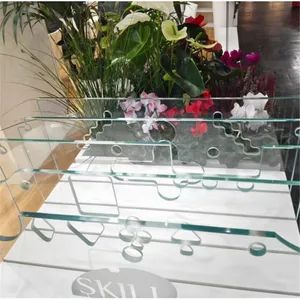

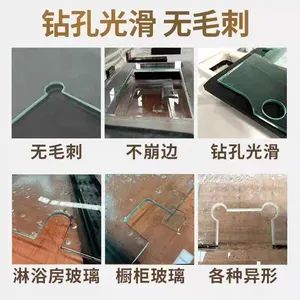

Work samples
This glass processing center can perform drilling, grooving, milling, internal edge grinding on glass. Suitable for processing glass doors, sliding doors, minimalist doors, shower room glass, curtain wall glass, etc.
Our team
Looking forward to working with you for a win-win situation
Certifications
After Sales Service
Standard Warranty:12 months.
Extended Warranty:Optional coverage up to 36 months.
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation/maintenance training.
Extended Warranty:Optional coverage up to 36 months.
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation/maintenance training.
Packaging & Shipping
Machine packaging size
The standard machine width is controlled at 2200mm, suitable for export container loading. Customization of various machine sizes is supported; large-sized machines can be designed with a modular layout. All can be loaded into containers for export.
FAQ
Q:What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q:Can I request customized machine dimensions?
A: Of course! We offer customized services.
A: Of course! We offer customized services.
Q: Is the factory a manufacturer?
A: Yes, we are a professional manufacturer of CNC equipment and have established industry university research cooperation with multiple domestic schools. We have professional R&D and production capabilities.
A: Yes, we are a professional manufacturer of CNC equipment and have established industry university research cooperation with multiple domestic schools. We have professional R&D and production capabilities.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
