Fw Series Embedded Friction Welding Machine

FW Series Friction Welding Machine




General Desciption

Friction welding is a variety of Solid Sate Welding. Friction welding machines convert mechanical energy into heat at the point to be welded.
Heat generated by friction at the joint surface heats the metal to its forging point. Pressure applied along the axis pushes the heated metal through the joint, expelling oxides and surface contaminants using the molten, ductile metal.
Two major techniques for friction welding are available:
One component is fixed to counteract minimal axial pressure, while the second is spun until the cross-section reaches adequate temperature, after which forging pressure is exerted.

Inertia welding involves storing energy in a spinning flywheel, sped up by a motor to the needed velocity. The welding process occurs when an axial push is applied via the rotating component, causing the flywheel to slow down and convert its rotational energy into heat at the connection point.




Main Features and Advantages
Friction welding outperforms conventional fusion welding in joint integrity, operates at greater speed, maintains consistent results, and supports the joining of unlike materials.

1,The welding accuracy of the joint is high, the quality is good, the welding point can reach the same strength as the base material.
2,Stable, good consistency, friction welding rejection rate is very low, is about 1% of the general welding method.
3,Suitable for welding dissimilar steels and dissimilar metals.
4,Low power, high efficiency and energy saving, compared with flash welding, the energy saving is about 80~90%.
The friction welding environment is clean, free from sparks, arcs, and toxic fumes, supporting eco-friendly practices and integrating well with automated production systems alongside modern metal fabrication techniques.

Model and Technical Parameter

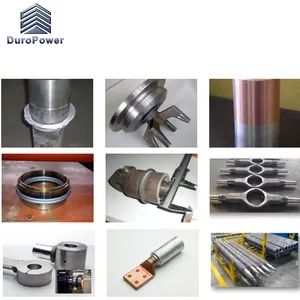

Welding sample

Our factory

1.why choose our factory ?

Our factory features cutting-edge machinery and robust technological capabilities. Every stage of manufacturing is closely monitored to ensure top-tier quality. Our goods are distributed globally and consistently praised for their superior craftsmanship and outstanding support both domestically and internationally.

2.The advantage for product?

High efficiency , energy saving and good quality.

3.The advantage for us ?

Reasonable price and best services , advanced equipment and strong technology.

4.How to order?

Feel free to reach out via our website or email promptly after showing interest in our range. A tailored price quote will be provided based on your requested size and order volume.

5. What about the quality?

All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.

6. What payment is available?

L/C at sight, or T/T 30% deposits before production and 70% balance to be paid before shipment.

7.Warranty

The machine have one year warranty.

If you want to know more information about our products, please feel free to contact me!
