G1324 Small Machine Tool with Turning, Drilling, Milling, Boring & Thread-Cutting Combination Lathe Milling Machine
Piece
Negotiable
Product information
High-quality G1324 Small Machine Tool with Turning, Drilling, Milling, Boring & Thread-Cutting Combination Lathe Milling Machine supplied by Anhui Chizhou Household Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Tool Holder:
1
Production Capacity:
1000/Month
Specification:
1325*585*1030mm
Spindle Bore:
28mm
Swing Dia. Over Bed:
330mm
Distance Between Centers:
610mm
HS Code:
845730000
Controlling Mode:
Artificial
Specifications
Tool Holder:
1
Production Capacity:
1000/Month
Specification:
1325*585*1030mm
Spindle Bore:
28mm
Swing Dia. Over Bed:
330mm
Distance Between Centers:
610mm
HS Code:
845730000
Controlling Mode:
Artificial
Certification:
CE, ISO 9001
Origin:
China
Power Source:
Electric
Transport Package:
Export Wooden Cast
Trade Term:
FOB, CIF
Model NO.:
G1324
Payment Term:
LC, T/T, D/P, Western Union
Condition:
New
Precision:
Precision
Automatic Grade:
Semiautomatic
Port Of Loading:
Shanghai Port
Setting Mode:
Table
Trademark:
White Eagle
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
1994-06-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
122
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
1.Product Description
Main features:
Has the purposes of turning, milling, drilling, boring & thread-cutting.
DC brushless motor, big torque at low speed, infinitely variable speed.
Power-driven for table in milling.
Cam clamping chuck.
Lengthened table.
Has the devices of safety interlock & an overload safety.
Lengthened drilling/milling box, 360°rotation in veritical plane.
Standard configuration:
3-jaw chuck, drilling chuck, drill taper stock, center, drawing
bar, exchange gear, tools, etc.
pecial configuration:
Specification

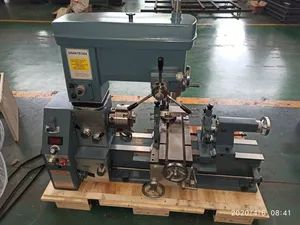

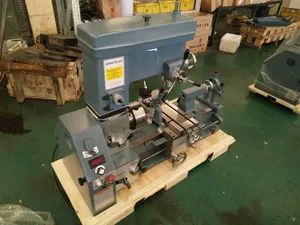

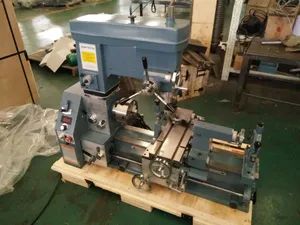

2.Machine Photo
3.Manufacturing Ability
Main features:
Has the purposes of turning, milling, drilling, boring & thread-cutting.
DC brushless motor, big torque at low speed, infinitely variable speed.
Power-driven for table in milling.
Cam clamping chuck.
Lengthened table.
Has the devices of safety interlock & an overload safety.
Lengthened drilling/milling box, 360°rotation in veritical plane.
Standard configuration:
3-jaw chuck, drilling chuck, drill taper stock, center, drawing
bar, exchange gear, tools, etc.
pecial configuration:
Specification
| SPECIFICATIONS | G1324 | G1340 | ||
| Swing dia. over bed | 330mm | 13″ | 330mm | 13″ |
| Swing dia. over table | 190mm | 7.5″ | 190mm | 7.5″ |
| Distance between centers | 610mm | 24″ | 1000mm | 40″ |
| Spindle bore | 28mm | 1.1″ | 28mm | 1.1″ |
| Spindle speed | 50~3000r/min | 50~3000r/min | ||
| Longitudinal stroke | 510mm | 20″ | 890mm | 35″ |
| Cross stroke | 185mm | 7.3″ | 185mm | 7.3″ |
| Small toolpost stroke | 70mm | 2.75″ | 70mm | 2.75″ |
| Metric pitch/grade | 0.35~6.5mm/24 | 0.35~6.5mm/24 | ||
| Inch pitch/grade | 7~52T.P.I./21 | 7~52T.P.I./21 | ||
| Longitudinal feed/grade | 0.067~0.5mm/r/21 | 0.067~0.5mm/r/21 | ||
| Cross feed/grade | 0.021~0.157mm/r/21 | 0.021~0.157mm/r/21 | ||
| Milling-drilling spindle taper | MT3 | R8 | MT3 | R8 |
| Milling-drilling shaft stroke | 127mm | 5″ | 127mm | 5″ |
| Milling-drilling box stroke | 110mm | 4.33″ | 110mm | 4.33″ |
| Table size | 450×170mm | 17.7″×6.7″ | 450×170mm | 17.7″×6.7″ |
| Drilling dia. | 24mm | 0.95″ | 24mm | 0.95″ |
| Power of motor | 1.1kw | 1.1kw | ||
| N.W./G.W.of machine | 300/350kg | 330/380kg | ||
| Overall dimensions of machine | 1325×585×1030mm | 1705×585×1030mm | ||
| Case dimensions of machine | 1260×570×1100mm | 1640×570×1100mm | ||
| Case dimensions of stand | (Left):760×450×410, (Right):760×450×350mm | |||
