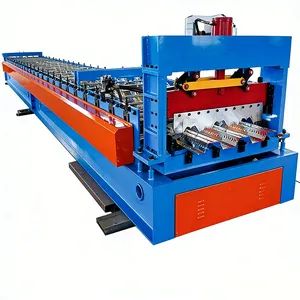

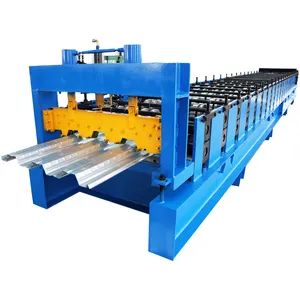

Galvanized Floor Tile Sheet Floor Deck Metal Decking Roll Forming Making Machine
Piece
Negotiable
Product information
High-quality Galvanized Floor Tile Sheet Floor Deck Metal Decking Roll Forming Making Machine supplied by Cangzhou Guangchi Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Rolling Thinckness:
0.9-1.2mm
Package Size:
1200.00cm * 60.00cm * 100.00cm
Feeding Width:
1250 mm(49.21in)
Package Gross Weight:
13000.000kg
Production Capacity:
200PCS/Year
Shaft:
90mm
Key Selling Points:
Automatic
Certification:
CE, ISO
Specifications
Rolling Thinckness:
0.9-1.2mm
Package Size:
1200.00cm * 60.00cm * 100.00cm
Feeding Width:
1250 mm(49.21in)
Package Gross Weight:
13000.000kg
Production Capacity:
200PCS/Year
Shaft:
90mm
Key Selling Points:
Automatic
Certification:
CE, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutter Material:
Cr12
Customized:
Customized
Transmission Method:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Housing:
H400 Beam
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Condition:
New
Usage:
Roof
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-12-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
Certificates
Product descriptions from the supplier
SONA2024 2.2.1
Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
Thickness Range | 0.25-0.7 mm |
Coil Width Range | 914,1000, 1220 or 1250 mm. According to your actual drawing. |
Electric Power | 380V,50 Hz, 3 phase or according to your need. |
Dimension | About 7.2*1.3*1.1m(L*W"H),as per the drawing |
Cutting | Automatically stop and cutting when it comes to the set length. |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy. ±1mm. |
Standard Decoiler
Electric uncoiler
Work type: electric station
Power: 3kw Structure: Steel channel welded for the basic frame Usage:To support the coil and make the uncoiling Loading capacity: 5 tons Inner diameter: 450-550mm (manual adjustment) Outside diameter: 1600mm Maximum Coil width: 1000mm
Power: 3kw Structure: Steel channel welded for the basic frame Usage:To support the coil and make the uncoiling Loading capacity: 5 tons Inner diameter: 450-550mm (manual adjustment) Outside diameter: 1600mm Maximum Coil width: 1000mm

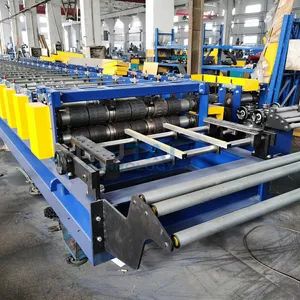

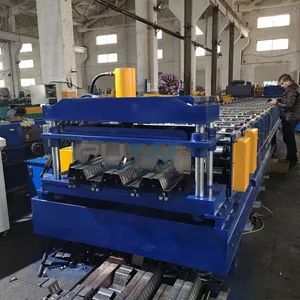

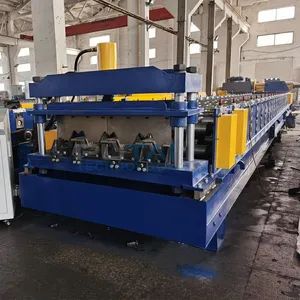

Roll Forming
Forming machine
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Hydraulic Cutting
Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
CONTROL PANELS
Frequency brand:Delta,PLC
brand:Delta Screen
type:Touch screen, also have buttons on the panel Screen language:English /Chinese/Spanish
Low pressure electric part: Schneiders brand
Encode:Omron brand Remark:Support multi orders input,ensure the machine canwork continuously according to different request without stop.
All the electrical parts are branded with high quality, it can be fixed easily if damaged.
Product Description
Floor support plate, also known as profiled steel plate, steel support plate, or steel floor support plate, is a type of plate made of galvanized steel plate that is cold-formed by rolling. Its cross-section is usually V-shaped, U-shaped, trapezoidal, or similar waveform shapes.
The design requirements of the steel deck as a form to support construction loads before the concrete has cured during
construction,The design requirements of the composite slab action in regards to the superimposed floor loads after concrete has cured and after construction.Floor decking for concrete is typically used for floors in commercial buildings, bridges, slab infills, porches, parking garages and self-storage facilities.
construction,The design requirements of the composite slab action in regards to the superimposed floor loads after concrete has cured and after construction.Floor decking for concrete is typically used for floors in commercial buildings, bridges, slab infills, porches, parking garages and self-storage facilities.
Company Profile
FAQ
Q:How to visit our company:
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train to Cangzhou Xi(4.5 hours),then we can pick up you.
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: Can you customize the machine from your company?
A: Of course, we can manufacture the machine according to your customized size demand.
A: Of course, we can manufacture the machine according to your customized size demand.
Q: How to play order?
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
Q:How to visit our company:
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: How is the quality? Is there any department related to quality control?
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
Q: Is the packaging form?
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q: How about after-sales service?
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
