Galvanized Stainless Steel Metal Coil Cut to Length Machine

Product Description

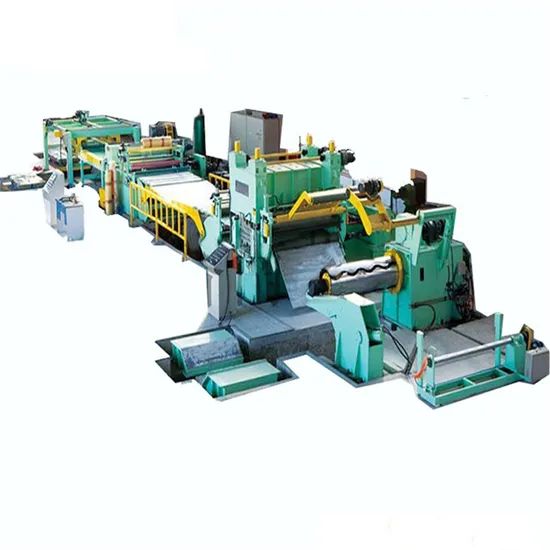

This cut-to-length system unwinds, straightens, slices metal coils to precise dimensions and stacks them. Designed for cross-cutting in cut-to-length processes, it handles cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel, and coated metal products. The system has been deployed across several sectors including welded pipe, sheet distribution, automotive, environmental protection, and metal sheet manufacturing, offering proven and dependable performance.

MAIN COMPONENTS

COIL SKID	V- type, main body welded by steel plate
COIL CAR	Pit type, main body welded by steel plate
PAPER WINDER	Pneumatic expanded  operated mandrel type.The paper winder will rewind the interleaving paper, as the strip is paid off.
UNCOILER WITH SNUBBER ROLL	Cantilever with four segments type
COIL OPENER	Telescopic and swing type

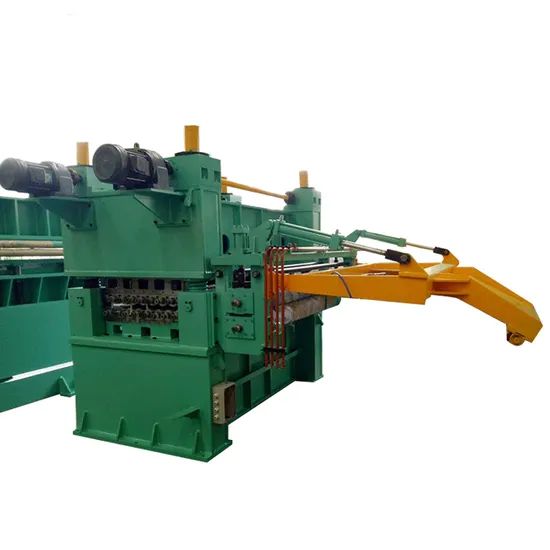

HI LEVELER	4-Hi, 15 rolls type
LOOP TABLE	Swing type
SIDE GUIDE	Vertical roll guide type
FEEDER ROLL WITH MEASURING ROLL AND PVC COATER	2+3 rolls type

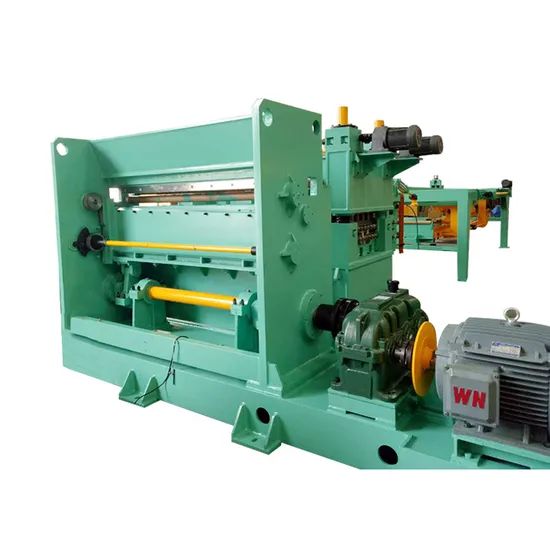

SHEAR	Mechanical type
BELT CONVEYOR	Belt type
PILER ,LIFTER ,CONVEYOR CAR
HYDRAULIC UNIT	1 set
PNEUMATIC UNIT	Pneumatic source:by buyer
ELECTRICAL EQUIPMENT	Adjustment, manually, automatic operation mode. One key start-up, multi-machine synchronization. Speed adjustment. Line stop to cuts specified. Fault information display and diagnosis. Maintenance help. Emergency stop, fast stop Start alarm caution.

Drawing  of Cut to Length Line

SPECIFICATION

Model Parameter	Material Thicknes (mm)	Max.Coil Width (mm)	Cutting Accuracy (mm)	Max. Speed (m/min.)	Max.Cutting Frequency (spm)	Uncoiling Weight (Tons)
SCL-6*1600	1-6	800-1600	±0.5	40	40	25
SCL-6*1850	1-6	900-1850	±0.5	40	40	30
SCL-6*2000	1-6	900-2000	±0.5	40	40	30
SCL-8*1600	2-8	900-1600	±0.5	35	30	25
SCL-8*1850	2-8	900-1850	±0.5	35	30	30
SCL-8*2000	2-8	900-2000	±0.5	35	30	30
SCL-12*2000	3-12	900-2000	±1.5	30	15	35
SCL-16*2000	4-16	900-2000	±2.0	20	10	35
SCL-20*2000	8-20	900-2000	±2.0	20	10	35

1. OEM Design&Production
    Our active engineer and design team can make the special machine according to customer's special requirements.
2. Delivery in Time Assurance
    We assure the machines your ordered will  delivered at promised time
3. Free Installation&Training
Installation and training available via online video tutorials; on-site team for setup and training; dispatched technician for hands-on installation and training; operational setup videos included
4. Your Payment Protection
    You can pay through ****** to protect  your advance payment
5. Online Factory Inspection Service
    The factory inspection before your order, will be provided online by video meeting app, like room, wechat,skype etc..
6. Long Life Maintenance of Machine
    We keep provide the maintenance for all machine life
7. International Third Party Inspection Supported
    You can appoint the international third party party, such as TUV, SGS,BV, do inspection before shipment

1. Q: Are you a Manufacturer or a trading company?
A:We are a seasoned producer boasting over 15 years in manufacturing, assembly, and distribution within this industry. We operate both manufacturing facilities and commercial trading entities
2. Q: How long have your factory been in this field? And how many staff do you have?
    A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
3. Q:Where are you and how can I visit you?
    A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
4. Q: Can you provide a customized solutions?
     A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
     A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
     A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
     A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
     A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
A: We send technicians to your location for setup and hands-on training; alternatively, in case on-site access isn't feasible, we conduct joint sessions via video conference for real-time installation guidance.
