Galvanized Steel Cable 7X19 -Aircraft Cable
1000 Meter
$0.051000 Meter
$4.6Product information
High-quality Galvanized Steel Cable 7X19 -Aircraft Cable supplied by Chongqing Geyo Machinery Co., Ltd.. Bulk wholesale pricing ranges from $0.05 to $4.6 per Meter with a minimum order of 1,000 Meter. Inquiry for latest prices.
Specification:
0.2-52mm
Production Capacity:
10000meters/Month
Tensile Strength:
1570-1960MPa
Model NO.:
7*19
Structure:
7*19
HS Code:
7312100000
Standard:
BS, JIS, GB, ASTM, DIN, AISI
Origin:
China
Specifications
Specification:
0.2-52mm
Production Capacity:
10000meters/Month
Tensile Strength:
1570-1960MPa
Model NO.:
7*19
Structure:
7*19
HS Code:
7312100000
Standard:
BS, JIS, GB, ASTM, DIN, AISI
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
GEYO
Steel Grade:
High Carbon Wire Rod
Payment Term:
LC, T/T
Alloy Or Not:
Non-alloy
Application:
Rope, Construction
Port Of Loading:
Shanghai Port; Ningbo Port
Technique:
Ungalvanized
Diameter:
as Customer's Request
Transport Package:
in Wooden Reel
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port; Ningbo Port
Certificates:
External Import&Export Trade Register Certificate, Register certificate of Industrial&Commercial, Register Certificate of Self-applied Insppection Declare of the China Inspection Bureau, Register Certificate of The Custom, TUV Audit Report
Product descriptions from the supplier

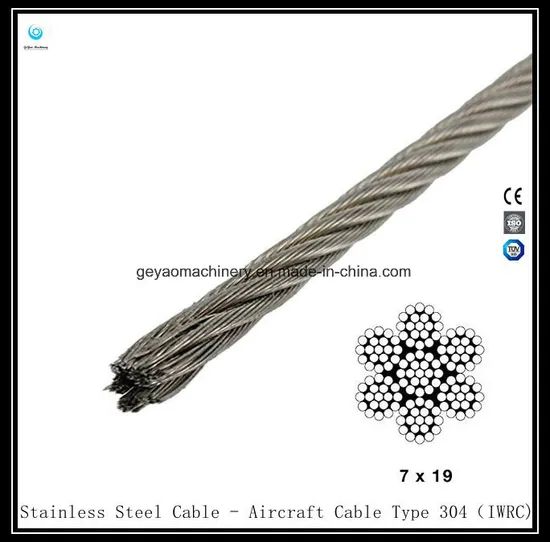

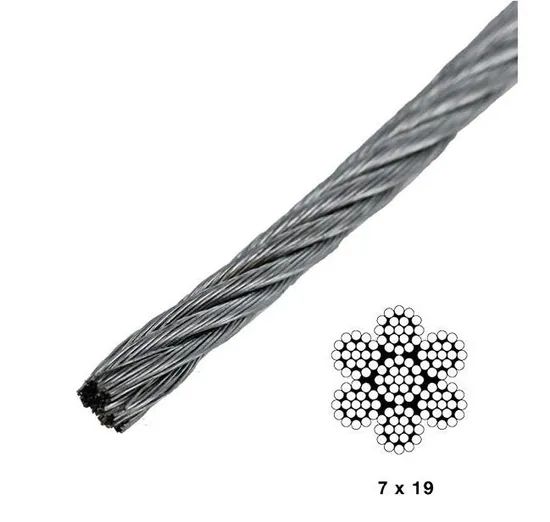

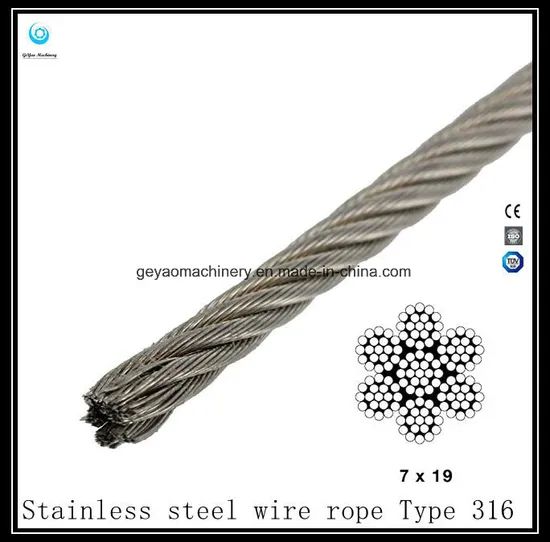

Galvanized Steel Cable 7x19 -Aircraft Cable
PRODUCTION
PRODUCTION FLOW AND MEASURING METHOD OF WIRE ROPE

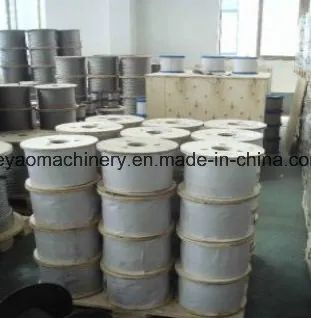

STORAGE
TRANSPORTATION OR LOADING
For enquiry,please kindly advise below information to us.
1.Application: For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material: Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire: Tensile strength of wires
9.Breaking Load: Minium or calculated breaking load in tones or pounds.
10.Length: Length of wire rope.
11.Packing: In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
13.Specification: Any recognized specification, if necessary.
14.Certification: Mill sheet and/or a third party's inspection,if necessary.
15.Remarks: Shipping marks and any other special requirements.
Features
1.Excellent General Purpose Steel Cable, Flexible and Wear Resistant
2.Used with Winch Lines, Garage Door Cable, Exercise Equipment, and Railings
Brief Description
1.A great choice for cable railing systems installed around docks, decks, porches, stairs, etc.when a clear, unobstructed view is needed.
2.Galvanized finish provides some protection from the elements, so it's good for both indoor and outdoor uses.
3.Do not exceed suggested working load limit; not intended for overhead lifting or aircraft use.
Specification
More About 7x19 Galvanized Steel Cable
Although 7 x 19 wire rope is commonly called aircraft cable, it's not intended for aircraft use. The construction includes 7 strands with 19 wires per strand in galvanized steel, creating a small diameter cable that's flexible and resistant to corrosion. This type of general purpose galvanized aircraft cable is found in a range of industries in applications such as winch lines, garage door cables, fences, railings, sailboat rigging, and exercise equipment.

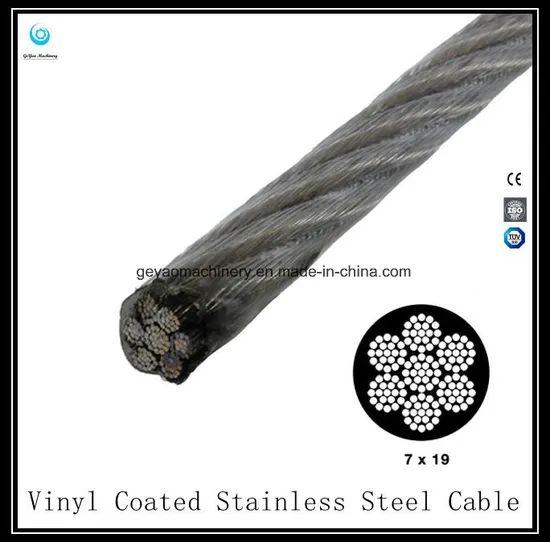

A galvanized finish is excellent at providing resistance to corrosion on 7x19 cable, but does not offer the same level of protection a stainless steel wire rope will offer. However, galvanized aircraft cable does provide slightly more strength than stainless steel. For additional protection, this configuration is also available in a vinyl coated wire rope option.
1.Excellent General Purpose Steel Cable, Flexible and Wear Resistant
2.Used with Winch Lines, Garage Door Cable, Exercise Equipment, and Railings
Brief Description
1.A great choice for cable railing systems installed around docks, decks, porches, stairs, etc.when a clear, unobstructed view is needed.
2.Galvanized finish provides some protection from the elements, so it's good for both indoor and outdoor uses.
3.Do not exceed suggested working load limit; not intended for overhead lifting or aircraft use.
Specification
| Diameter | Class | Material | Quantity | Break strength |
| 3/32" | 7x19 | Galvanized steel | Ordered in lineal feet | 1000lbs |
| 1/8" | 7x19 | Galvanized steel | Ordered in lineal feet | 2000lbs |
| 5/32" | 7x19 | Galvanized steel | Ordered in lineal feet | 2800lbs |
| 3/16" | 7x19 | Galvanized steel | Ordered in lineal feet | 4200lbs |
| 7/32" | 7x19 | Galvanized steel | Ordered in lineal feet | 5600lbs |
| 1/4" | 7x19 | Galvanized steel | Ordered in lineal feet | 7000lbs |
| 5/16" | 7x19 | Galvanized steel | Ordered in lineal feet | 9800lbs |
| 3/8" | 7x19 | Galvanized steel | Ordered in lineal feet | 14400lbs |
Although 7 x 19 wire rope is commonly called aircraft cable, it's not intended for aircraft use. The construction includes 7 strands with 19 wires per strand in galvanized steel, creating a small diameter cable that's flexible and resistant to corrosion. This type of general purpose galvanized aircraft cable is found in a range of industries in applications such as winch lines, garage door cables, fences, railings, sailboat rigging, and exercise equipment.
A galvanized finish is excellent at providing resistance to corrosion on 7x19 cable, but does not offer the same level of protection a stainless steel wire rope will offer. However, galvanized aircraft cable does provide slightly more strength than stainless steel. For additional protection, this configuration is also available in a vinyl coated wire rope option.
PRODUCTION FLOW AND MEASURING METHOD OF WIRE ROPE
STORAGE
TRANSPORTATION OR LOADING
For enquiry,please kindly advise below information to us.
1.Application: For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material: Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire: Tensile strength of wires
9.Breaking Load: Minium or calculated breaking load in tones or pounds.
10.Length: Length of wire rope.
11.Packing: In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
13.Specification: Any recognized specification, if necessary.
14.Certification: Mill sheet and/or a third party's inspection,if necessary.
15.Remarks: Shipping marks and any other special requirements.
