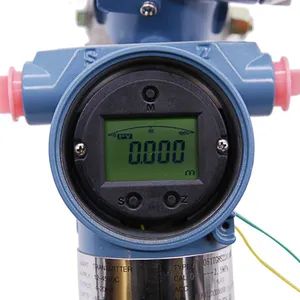

Gas Pressure Transmitter Pressure Gauge
Piece
Negotiable
Product information
High-quality Gas Pressure Transmitter Pressure Gauge supplied by Yantai Auto Instrument Making Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Accuracy Grade:
0.1G
Electric Interface:
1/2NPT, M20*1.5
Process Connection:
1/4NPT or 1/2NPT
Power Supply:
24VDC
Package Size:
27.00cm * 20.00cm * 20.00cm
Output:
4-20mA
Package Gross Weight:
4.500kg
Production Capacity:
50000PC/Year
Specifications
Accuracy Grade:
0.1G
Electric Interface:
1/2NPT, M20*1.5
Process Connection:
1/4NPT or 1/2NPT
Power Supply:
24VDC
Package Size:
27.00cm * 20.00cm * 20.00cm
Output:
4-20mA
Package Gross Weight:
4.500kg
Production Capacity:
50000PC/Year
HS Code:
9026201090
Certification:
CE
Transport Package:
Carton or as Required
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Product Name:
Differential Pressure Transmitter 4-20mA
Trade Term:
FOB, CIF, CFR
Protocol:
Hart
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Measuring Medium:
Liquid,Gas
Certificate:
Sil,SGS,Ce,ISO9001,Explosion Proof
Payment Methods:
Support payments in USD
Origin:
Yantai
Port Of Loading:
Yantai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1994-11-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
43
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Yantai Port
Certificates:
Others, RoHS, CE
Product descriptions from the supplier
Low price 4-20mA water oil gas differential pressure transmitter with LCD display
Introduction
The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Features:
1. Process Fluid: Liquid, Gas, Vapor
2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure
3. Working Temperature: -25 to +95C
4. Current Output: 4 - 20 mA 2 wires Har t Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25 to +240C
7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2"NPT or M20*1.5
9. Enclosure:IP65
10.Intrinsically Safe: Exia II C T6
11.Explosion proof: Exd II B T5
Product details:
Ordering Sheet
|
Name |
Specification code |
Description |
||
|
AT3051GP AT3051DP |
|
Pressure Transmitter Differential Pressure Transmitter |
||
|
Measurement Range |
3 |
(0.013-0.075)bar |
||
|
4 |
(0.062-0.374)bar |
|||
|
5 |
(0.31-1.868)bar |
|||
|
6 |
(1.17-6.9)bar |
|||
|
7 |
(3.45-20.68)bar |
|||
|
8 |
(11.7-68.90)bar |
|||
|
9 |
(34.8-206.8)bar |
|||
|
0 |
(68.9-413.7)bar |
|||
|
Output Signal |
E |
analog type 4-20mA |
||
|
S |
4-20mA, HART Protocol |
|||
|
Wetted Parts Material |
|
Flange/Joint |
Exhaust/Drain Valve |
Diaphragm |
|
22 |
Stainless Steel |
Stainless Steel |
316L Stainless Steel |
|
|
23 |
Hastelloy C-276 |
|||
|
24 |
Tantalum |
|||
|
Mounting Bracket |
B1 |
Tube-type Curved Bracket (Tube ODΦ50~Φ60) |
||
|
B2 |
Board- type Curved Bracket |
|||
|
B3 |
Tube-type Straight Bracket (Tube ODΦ50~Φ60) |
|||
|
Display Header (optional) |
M2 |
Linear Pointer Header (0~100% scale) |
||
|
M3 |
Square Root Instruction Header(0~100% scale) |
|||
|
M4 |
LCD Header(0~100% linear display) |
|||
|
Process Flange |
D |
The liquid discharge / exhaust at the back |
||
|
D1 |
The liquid discharge / exhaust at the side top |
|||
|
D2 |
The liquid discharge / exhaust at the side bottom |
|||
|
Flange Joint |
J |
"D-shaped" Joint with " M20*1.5" External thread |
||
|
|
N |
Joint with 1/2-14NPT taper pipe thread waist type |
||
Production Line
Yantai Auto Instrument Making Co., Ltdhas advanced production equipment and highprecision
import calibration equipment , it is a hightech enterprise integrating product design , research and
development , production and sales . Widely used in environment protection , power , petrochemical ,
metallurgy ,electric power , pharmaceutical ,food and other industries . Products are exported to more
than 60 countries and regions such as the United states , Germany , Russia , India , Vietnam , South
Korea and Pakistan etc.
Main products
Pressure Instruments:pressure transmitter, differential pressure transmitter, level transmitter.
Flow Instruments:Vortex flow meter, electromagnetic flow meter, turbine flow meter, ultrasonic
flow meter, oval gear flow meter.
Level Instruments:Radar level meter, ultrasonic level meter, magnetic level gauge, level switch.
Installation Site--differential pressure transnitter
