Generic ESP8266 Adapter Plate Serial Wireless WIFI Module, For Electronics Project
1 Piece
$0.33Product information
High-quality Generic ESP8266 Adapter Plate Serial Wireless WIFI Module, For Electronics Project supplied by TECHNOBERRY. Bulk wholesale pricing is $0.33 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
PCB Thickness(Mm):
1.6
Included Resistor:
10k Pull-up Resistor
Regulator Land Pattern:
3.3v Regulator With Reserved Land Pattern
Dimensions:
8 x 5 x 3 cm
Pinout Visibility:
Black Color On Top Layer
Model Name/Number:
ESP8266 Adapter Plate Serial Wireless WIFI Module
Usage/Application:
Electronics project
Compatibility:
Esp07, Esp08, Esp12e, Esp12f
Specifications
PCB Thickness(Mm):
1.6
Included Resistor:
10k Pull-up Resistor
Regulator Land Pattern:
3.3v Regulator With Reserved Land Pattern
Dimensions:
8 x 5 x 3 cm
Pinout Visibility:
Black Color On Top Layer
Model Name/Number:
ESP8266 Adapter Plate Serial Wireless WIFI Module
Usage/Application:
Electronics project
Compatibility:
Esp07, Esp08, Esp12e, Esp12f
Brand:
Generic
Material:
Plactic vb
Trade Term:
To be discussed
Payment Term:
To be discussed
Voltage Adjustment:
Vcc Pin Becomes 4.5v To 9v After Desoldering 0 Ohm Jumper Resistor R2
Color:
White
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2024
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

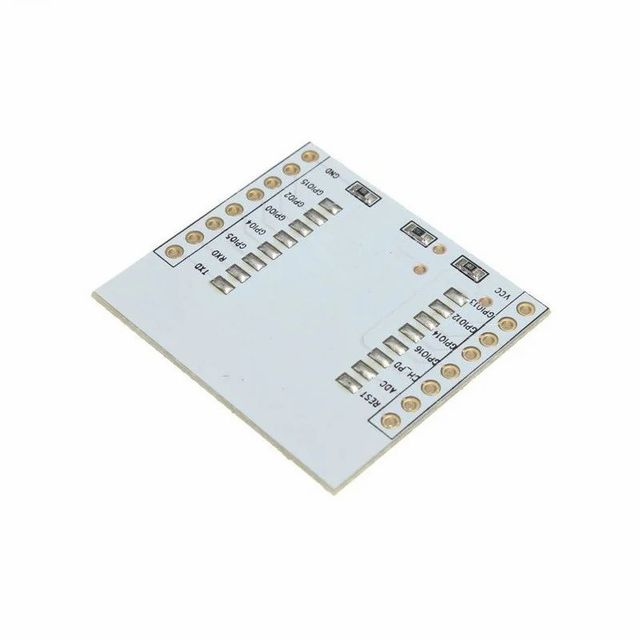

This ESP8266 Adapter Plate Serial Wireless WIFI Module is for ESP-07, ESP-08, ESP-12E ESP8266 SMD ESP8266 Module. These SMD ESP8266 modules have an unfriendly pin pitch. But by use of this adapter PCB, you can solder ESP-07, ESP-08 or ESP-12E modules and can use your favourite ESP8266 SMD modules on breadboards or on perforated boards.
ESP8266 adapter plate compatible with the ESP07, ESP08, and ESP12. Because soldering the ESP modules is not always easy, this adapter plate is available. The WiFi module can be soldered to the PCB, wherein they are connected to connection points clearly indicated by headers.
On the bottom layer, there is a land pattern for a 3.3V regulator. To use a 3.3V regulator you will need to desolder 0 Ohm jumper resistor R2.(middle resistor) The VCC pin then becomes 4.5V to the 9V power input.
- It features reserved land-pattern for the 3.3V regulator
- It has Pinouts on the top layer in black color.
- Compatible with Latest ESP-12F ESP8266 Wifi Module
- It includes a 10K pull-up resistor populated on PCB.
