Gnss Time Synchronizer for Telecom & Power Systems Origin China Warranty 1 Year Model NO. CL-1022 Trademark CoreLogic Transport Package
5-9 Pieces
$80010-49 Pieces
$70050 Pieces
$600Product information
High-quality Gnss Time Synchronizer for Telecom & Power Systems Origin China Warranty 1 Year Model NO. CL-1022 Trademark CoreLogic Transport Package supplied by Beijing Corelogic Communication Co., Ltd.. Bulk wholesale pricing ranges from $600 to $800 per Pieces with a minimum order of 5 Pieces. Inquiry for latest prices.
Warranty:
1 Year
Production Capacity:
50000
Port Of Loading:
BEIJING AIRPORT, TIANJIN XINGANG PORT
Transport Package:
Box
Model NO.:
CL-1022
Origin:
China
Trademark:
CoreLogic
Carrier Frequency:
Dual-Frequency
Specifications
Warranty:
1 Year
Production Capacity:
50000
Port Of Loading:
BEIJING AIRPORT, TIANJIN XINGANG PORT
Transport Package:
Box
Model NO.:
CL-1022
Origin:
China
Trademark:
CoreLogic
Carrier Frequency:
Dual-Frequency
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Certification:
ISO14001, ISO9001/ISO45001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Number:
Multiplex Multi-purpose Channel
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
BEIJING AIRPORT, TIANJIN XINGANG PORT
Certificates:
CLSI-018A ROHS, EN-04624E12373R1M, EN-04624Q13781R3M, EN-04624S12320R1M
Product descriptions from the supplier
CoreLogic R&D Team
Product Description

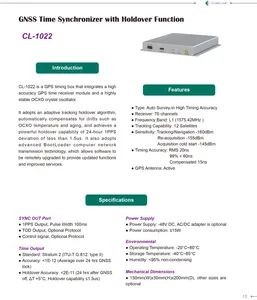

GNSS Time Synchronizer with Holdover Function
CL-1022
CL-1022 is a GPS timing box that integrates a highaccuracy GPS time receiver module and a highlystable OCXO crystal oscillator.
CL-1022 is a GPS timing box that integrates a highaccuracy GPS time receiver module and a highlystable OCXO crystal oscillator.
It adopts an adaptive tracking holdover algorithm,automatically compensates for drifts such asOCXO temperature and aging, and achieves apowerful holdover capability of 24-hour 1PPSdeviation of less than 1.5us. lt also adoptsadvanced BootLoader computer networktransmission technology, which allows software tobe remotely upgraded to provide updated functionsand improved services.
Specification
Features
Type: Auto Survey-in High Timing Accuracy
Receiver: 70 channels
Frequency Band: L1(1575.42MHz)
Tracking Capability: 12 Satellites
Sensitivity: Tracking/Navigation -160dBm,Re-acquisition -155dBm,Acquisition cold start -145dBm
Timing Accuracy: RMS 20ns, 99%< 60ns, Compensated 15ns
GPS Antenna: Active
SYNC OUT Port | Power Supply |
* 1PPS Output, Pulse Width 100ms | * Power Supply: -48V DC, AC/DC adapter is optional |
* TOD Output, Optional Protocol | * Power consumption: ≤15W |
* Control signal, Optional Protocol | |
Environmental | |
Time Output | * Operating Temperature: -20°C~60°C* |
* Standard: Stratum 2 (ITU-T G.812: type II) | * Storage Temperature: -40°C~85°C |
* Accuracy: <1E-12 (Average over 24 hrs GNSS lock) | * Humidity: <95% non-condensing |
* Holdover Accuracy: <2E-11 (24 hrs after GNSS off, ΔT =5°C, Holdover capability ≤1.5us) | |
Mechanical Dimensions | |
* 150mm(W)x30mm(H)x200mm(D), other sizes are optional. |
