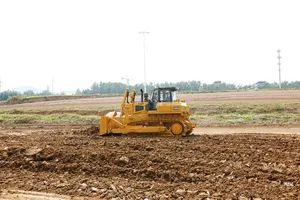

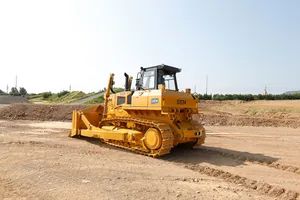

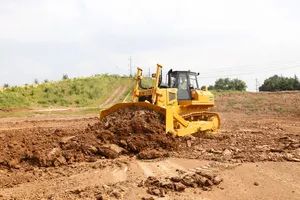

Gold Mining Heavy Work SEM822D Bulldozer for Sale
Piece
Negotiable
Product information
High-quality Gold Mining Heavy Work SEM822D Bulldozer for Sale supplied by Terramech Machinery (Shandong) Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Engine Power:
147~515kw
Production Capacity:
15 Units Per Year
Specification:
75 m3
Origin:
C
Walking Mode:
Crawler
Trade Term:
FOB
Load And Unload Method:
Front Discharge
Transmission:
Hydraulic Transmission
Specifications
Engine Power:
147~515kw
Production Capacity:
15 Units Per Year
Specification:
75 m3
Origin:
C
Walking Mode:
Crawler
Trade Term:
FOB
Load And Unload Method:
Front Discharge
Transmission:
Hydraulic Transmission
Condition:
New
Trademark:
SEM
Model NO.:
SEM822D
Transport Package:
Standard
Payment Term:
To be discussed
Type:
Universal Type
Color:
Yellow
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Product descriptions from the supplier
Hydrostatic Drive System
- Enhanced hydrostatic setup integrates Caterpillar’s automatic, dual-channel hydrostatic drive featuring third-gen TTT electronic control, boosting performance and dependability
- Adopt Rexroth German new generation drive pump to combine control valve, trackmotor, simplified hose line design, continue to increase the reliability
- Cater-pillar high pressure hose provides reliability and durability. Cater-pillar control technology provides accurate control and high transmission efficiency
- Integrated the hydrostatic oil tank and implement hydraulic oil tank to improve filtratedprecision and cooling capability of hydraulic system, increasing reliability and reducingmaintenance cost
- Maintenance costs are reduced by 60% when compared competitors with torque converter and transmission and rear axle
- Counter rotation, power turn and infinitely variable speed save lots of time, increasing working efficiency
Comfortable Operation
- Counter rotation - Tracks counter rotate to provide best in class maneuverability
- Powered turn - Machine maintains full power through turns to increase productivity
- Cruise control - Operators can retain previous speed settings which makes operation easily
- Multi-function joystick allows for counter-rotation, powered turn and cruise control
- Pilot joystick control provides comfortable precise blade operation
Semi-Universal Blade
- SU blade combines the excellent penetration of the S blade and the high production capacity of the U blade
- Designed for superior load retention and penetration in tightly packed materials
- L-shaped push arms bring the blade closer to the machine, providing excellent maneuverability, balance and blade penetration
- Blades feature a strong box section design, made from high tensile strength steel to stand up to the most severe applications
Undercarriage
- Undercarriage is provided by China industry expert ensures high reliability and resistance to wear
- Carrier rollers track rollers and idle rollers are all maintenance free
- Planetary final drive design delivers increased torque ratio for higher transmission efficiency and lower maintenance cost
- Durable final drive bearings and multiple wet discbrakes provide reliability, reduce system heat and extend overall life
Structures
- Machine structures are analyzed using Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to identify and protect high stress areas
- Advanced structure welding technique, relieving welding stress.
Modular Radiator
- New advanced cooling system designed to meet -40°C to +50°C ambient temperatures capability
- Modular designed radiator, easy to maintain remove and repair
- Radiator grill provides better heatdissipation, easy access or maintenance
Maintenance
- Electronic Control Module (ECM) fault diagnosis system,automatic diagnosis of eight key parameters
- Monitoring system provides three levels of alarm,to indicate fault diagnosis
- Hydrostatic system has longer service interval (2000 hrs),reduces maintenance time by 50%
- Implement valve mounted outside of hydraulic tank provides easy access to check and service
Product Link™
- Product Link™ empowers your operations by delivering equipment details to the right team members promptly and reliably, enhancing overall equipment oversight
| Model | ||||||
|---|---|---|---|---|---|---|
| Model | 822D | |||||
| Configuration | STD | LGP | CH | DS | WH | FR |
| Main Specifications | ||||||
| Operating Weight (w. SU blade, Ripper) | 26,520kg | 27,880kg | 27,280kg | 27,140kg | 28,560kg | 28,280kg |
| Ground Pressure (GB/T 30965) | 71.2kPa | 43.0kPa | 62.4kPa | 41.7kPa | 43.8kPa | 76.5kPa |
| Minimum Ground Clearance (Excludes Grouser Height) | 400mm | |||||
| Gradeability | 30° | |||||
| Engine | ||||||
| Engine Model | WD10G178E25 | |||||
| Advertised Power (ISO 14396) | 175kW | |||||
| Rated Speed | 1,800r/min | |||||
| Powertrain | ||||||
| Transmission Type | Dual-path, closed loop electronically controlled hydrostatic drive system | |||||
| Travel Speeds - Forward and Reverse | Infinitely variable speeds 0-10 km/h | |||||
| Steering and Brake | hydrostatic steering; wet,multi-disc brake | |||||
| Implement Hydraulic | ||||||
| Type | center close, pilot control | |||||
| System Pressure | 19MPa | |||||
| Pump Type | Gear pump | |||||
| Blades | ||||||
| Blade Type | SU/S | LGP S | Coal/U | LGP S | WH | Forestry |
| Blade Capacity (ISO 9246) | 6.4m³/5.8m³ | 5.5m³ | 9.2m³/7.5m³ | 5.5m³ | 12.7m³ | 8.7m³ |
| Blade Width (w/End Bit) | 3,660mm/3,800mm | 4,510mm | 3,900mm | 4,510mm | 4,510mm | 3,660mm |
| Blade Height | 11,520mm/1,510mm | 1,350mm | 1,620mm/1,420mm | 1,350mm | 1,945mm | 1,830mm |
| Blade Lifting Height | 1,140mm | 1,165mm | 1,140mm | 1,165mm | 1,165mm | 1,140mm |
| Blade Digging Depth | 570mm | 665mm | 570mm | 665mm | 665mm | 570mm |
| Blade Tilt Height (Middle Hole) | 540mm | 640mm | 550mm | 640mm | 640mm | 540mm |
| Blade Weight (w/o Push Arm) | 1,645kg | 2,085kg | 2,242kg | 2,085kg | 2,442kg | 2,050kg |
| Minimum Turning Radius | 4,215kg | 4,300kg | 4,500kg | 4,300kg | 4,300kg | 4,215kg |
| Single Shank Rippers | ||||||
| Type | Parallelogram (with pitch adjustment) | |||||
| Maximum Penetration (Shank Pinned in the Top Hole) | 860mm | |||||
| Maximum Clearance Under Tip (Shank Pinned in the Bottom Hole) | 640mm/742mm | N/A | 640mm | 742mm | 615mm | 615mm |
| Ripper Weight | 2,390kg | N/A | 2,390kg | N/A | N/A | 2,390kg |
| Undercarriage | ||||||
| Track Shoe Width | 560mm | 915mm | 660mm | 915mm | 915mm | 560mm/660mm |
| Track Shoes Number (Each Side) | 40 | 45 | 40 | 45 | 45 | 40 |
| Track Rollers Number (Each Side) | 7 | 8 | 7 | 8 | 8 | 7 |
| Carrier Roller Number (Each Side) | 2 | 2 | 2 | 2 | 2 | 2 |
FAQ
1. Whats the delivery time for each equipment and the spare parts?
Usually, 25 days for equipments and 7 days for spare parts.
2. Can you supply warranty for the equipments ?
yes, 1 year warranty for equipments.
3. can you supply OEM service?
yes, we accept customrized production for construction equipments.
