Goldencup Automatic Corrugated Double Wall Paper Cup Forming Making Machine
1 Set
$65,8001 Set
$35,800Product information
High-quality Goldencup Automatic Corrugated Double Wall Paper Cup Forming Making Machine supplied by Zhejiang Golden Cup Machinery Co., Ltd. Bulk wholesale pricing ranges from $35,800 to $65,800 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Air Consumpion:
0.3MPa
Production Capacity:
100 Sets/Month
Speed1:
100-120PCS/Min
Speed:
100-120pcs/min
Paper Request:
170-300GSM Single/Double PE Paper
Specification:
2600*960*2120mm
Size(L*W*H):
2600*960*2120mm
Power:
3 Phase,380V,50Hz 6kw
Specifications
Air Consumpion:
0.3MPa
Production Capacity:
100 Sets/Month
Speed1:
100-120PCS/Min
Speed:
100-120pcs/min
Paper Request:
170-300GSM Single/Double PE Paper
Specification:
2600*960*2120mm
Size(L*W*H):
2600*960*2120mm
Power:
3 Phase,380V,50Hz 6kw
Weight:
3600kgs
Cup Size(Ounce):
4-16oz
HS Code:
8441309000
Automation:
Automatic
Certification:
CE
Origin:
China
Customized:
Customized
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T, Western Union
Condition:
New
Port Of Loading:
Ningbo Port
After Sales Service:
Online Service/Engineer Service
Required Paper:
Single/Double PE Paper/PLA Paper/Water Based Paper
Suitable Size:
Top Diameter:60-95mm Bottom Diameter:40-75mm Heigh
Logo Printing:
With Logo Printing
Transport Package:
Wooden Case
Model NO.:
XSL-16W
Model:
Xsl-16W Double Wall Paper Cup Sleeve Machine
Trademark:
goldencup
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2021-11-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
39
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port
Certificates:
Others
Product descriptions from the supplier

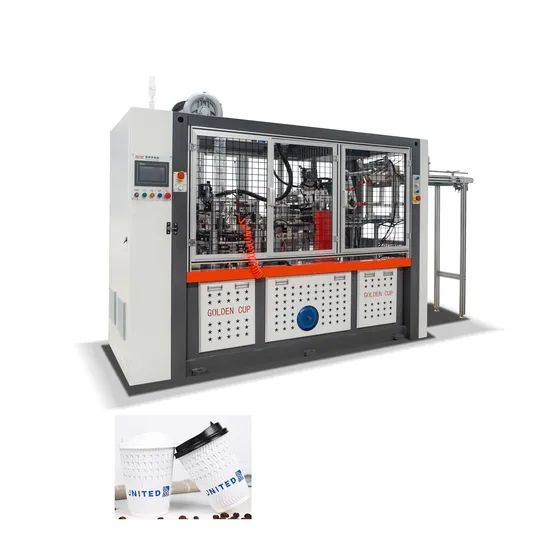

XSL-16W double wall sleeve machine using tabletop layout, which isolates the forming parts and transmission parts. Machine is controlled by PLC, the whole process is monitored by photoelectric sensors,glue sprayed by servo.It is an idea equipment for making different type of sleeve cups.
| Technical Parameter | |
| Model | XSL-16W double wall paper cup sleeve machine |
| Suitable size | Top diameter:60-95mm Bottom diameter:40-75mm Height:50-135mm Depth from bottom:5-12mm |
| Production Speed | 100-120pcs/min |
| Paper request | 170-300gsm single/double PE paper |
| Weight | 3600kgs |
| Machine Size | 2600*960*2120mm |
| Power | 3 phase,380V,50HZ 6KW |
| Air consumpion | 0.3Mpa |
MACHINE DETAILS:
ABOUT US:
Zhejiang Golden Cup Machinery Co., Ltd. is a leading manufacturer of high-quality machinery in the paper cup industry. Located in Gexiang, Wenzhou city, our state-of-the-art facility spans around 10,000 square meters, equipped with advanced production capabilities.
At Golden Cup company, we specialized in the production of high-speed paper cup machine, paper bowl machine, and double wall sleeve machines. Our machines are designed to cater to a wide range of cup sizes, from small coffee cups to big bowls, and can be customized to meet specific requirements.
To ensure top-notch performance and durability, we use the components from renowned international brands for the main electrical parts. Our machinery important bearings are sourced from Japan, while the molds are made with high-quality materials as same used on the plane.The transmission part of our machines utilizes cam and gear mechanisms, eliminating the need for chains and incorporating a spray circulating lubrication system. Our high-speed machines can achieve an impressive production rate of 120-150 cups per minute.Additionally, we offer optional vision inspection systems to ensure impeccable cup quality, helping our clients reduce labor costs.
At Golden Cup company, we pride ourselves on delivering exceptional customer service. Our dedicated after-sales service team is committed to addressing our customers' needs promptly and professionally, ensuring a smooth and efficient experience throughout the entire partnership.
We warmly welcome both domestic and international friends to collaborate with us freely, as we are confident in our ability to provide innovative solutions and reliable machinery for your paper cup business.
COMPANY&WORKSHOP:
PACKAGE:
FAQ:
Pre-sale issues
_____
Q1. How to get in touch with us?
--Contact with Mrs Sunny for more information--Direct to the company: Zhejiang Golden Cup Machinery Co.,Ltd.
Address: No.399 Jiangnan Avenue,Gexiang New District,Ruian City,Wenzhou City,Zhejiang,China,
Q2. Are you a manufacturer?
Yes, we are manufacturer of paper cup machine
Q3.What's your product range?
Coffee cups. tea cups, ice cream cups, noodle bowl, salad bowl, KFC bow etc.
Q4.What size of cups or bowl can make on your machine?
we can make from 4OZ to 32OZ by differeent moulds &machines, and other non-standard size we will check and confirm.
Q5.What information should i let you know if i want to get a quotation?
--Quantity
--What's the detailed size (top diameter,bottom diameter,and height)
--What's the paper thickness
Problems in sale
_____
Q1. About payment
30% of the total payment will be paid in advance, and the rest need paid before delivery.
Q2. About delivery time
The standard machine is generally 45 working days after receiving the deposit and confirm the final drawing.
Q3. Order tracking
After the customer places an order, our company will send professional personnel to track the order and regularly report the production progress to the customer.
Q4. Product testing
After Machine finished, we will test the cup quality by our professional engineer or sales manager, and also can send the samples to customer for quality check. Before delivery, we ensure that the components produced by our company meet the technical requirements; and then pass the whole machine test to ensure that the mechanical equipment meets the technical production requirements .
Q5. Product packaging
Before the product is shipped, it will be packed in wooden cases.
Q6. Product Transportation
Products are generally shipped from Ningbo Port, China to the destination port by sea.
After-sale question
_____
Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact you to confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 3 working days for each machine.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa,2-way air tickets,local traffic,personal insurance, hotel, food, and also their salary 120USD one day per person.
Q4. How long is your machine's warranty period?
For this machine, the cam transmission part is 3 years, and electrical part is one year, and our company provides lifetime maintenance services.
Q5. Does your engineer speak English?
Our engineers are experienced in adjusting machine, but can not speak English. So, pls arrange the translator during his visit.
Q6. How do we solve the machine problem after your engineer leaving?
During our engineer visit customer's factory, will training your labor how to maintain the machine.
If any problem in the process of using the product, customer can directly call or send an email to our company. The personnel of our department will respond immediately by phone calls or by sending video to help slove the problems.
