Gonsin Conference System with Sound

TL-VQ5600+TC-Q5600 Discussion and Interpretation System

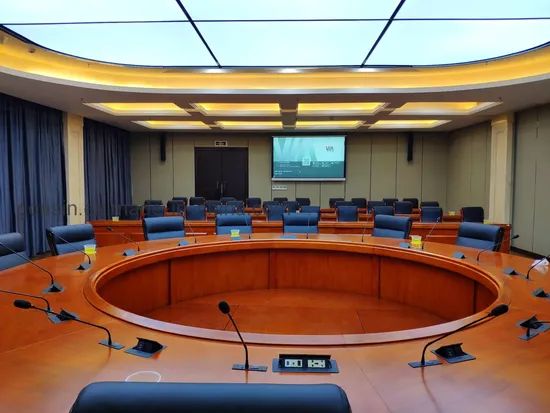

TL-VQ5600+TC-Q5600 discussion and interpretation system offers a flushmount conference solution for microphone discussion, simultaneous interpretation, language distribution, video tracking and software control. Flush discussion unit allows the delegate to talk and request to talk. Flush loudspeaker can be added to meet the venue needs. Flush channel selection unit is available with 6 channels for the delegate to hear the selected channel through a personal headphone. Volume control buttons can be used to adjust the headphone volume level for comfortable listening.

Each discussion unit comes with a built-in RJ-45 port which can be used for future expansion. Optional plug-and-play handheld keypad can be connected when attendance, voting, election, and evaluation are required.

Flexible module-based solution
Function modules can be stand-alone installed or easily combined to suit the venue environment and meet the customer needs, offering a versatile conference solution

Smart voice activation mode
The system can be operated under VOX (voice activation) mode so that the microphone is automatically turned on when the delegate speaks. VOX sensitivity can be adjusted to suit conference environment. This microphone mode enables hands-free operation with no need to push the microphone button

Future-proof system expansion
Built-in expansion port of the discussion module is designed for plug-and-play handheld module. It becomes easier to upgrade the system and extend more features when necessary in the future.

Discussion Unit TL-VDQ5600/ TL-VXQ5600

Features:
Voice-activated microphone mode
Low susceptibility to interference from mobile phones
Pluggable gooseneck microphone stem
Waterproof and dustproof design
Long microphone pick-up range
Red ring luminant to identify active unit
Blue LED indicator for chairman or VIP

Basic functions:
Microphone mode: VOX/AUTO/FIFO/OPERATOR
Attendance: Registration by keypress or late registration
LED indicator and MIC light will blink when attendance is to be registered. LED indicator will light on when attendance is successfully registered.
VOX sensitivity and mic time-out are adjustable.
Automatic video tracking, with preset position for panorama view.

Channel Selection Unit TC-Q5600

The wired flushmount channel selection unit provides high immunity from interference and high security against unauthorized listening. Each unit comes with headphone jack and volume control so that the delegate can hear any selected channel on a personal headphone, and adjust volume level for comfortable listening.

Features:
Simple and stylish look
30000V ESD protection circuit design
Waterproof and dustproof design

Connector CON-5600
The CON-5600 connector is designed to connect control units to function modules including discussion unit, channel selection unit, flush voting unit and/or loudspeaker for power supply and communication signals

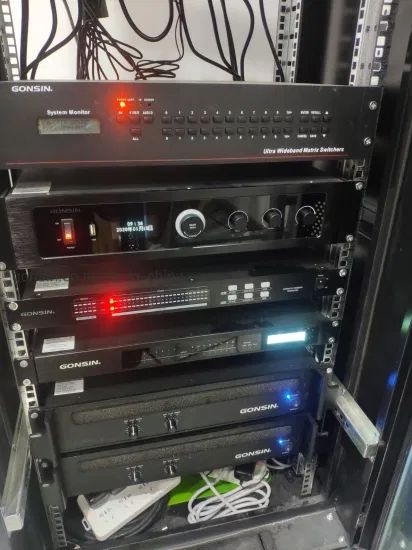

Central Control Unit TC-ZB4
Main Functions
Extended functions under PC and software control
•Voting: Yes, No, Abstain . Vote counting and result display are enabled automatically by PC
Single-choice and multiple-choice voting
First key-press and final key-press voting
•Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election'
•4-key evaluation: Good, Fair, Poor, Abstain.
•Utilize multi-level error correction and data encryption technique to ensure information security.
•Customized voting options and voting methods, support customized language mode or display screen
•Language interpretation: 1+5 channels.
•Acoustic frequency response can up to 20Hz~20KHz.
•With interpreter unit and language distribution port, it can connect Gonsin IR simul-taneous
•interpretation system or FS-FHSS wireless simultaneous interpretation system for compatible use.

Technical Parameters
