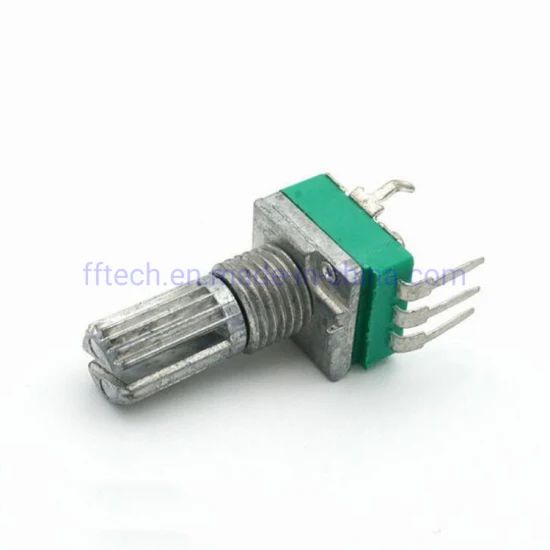

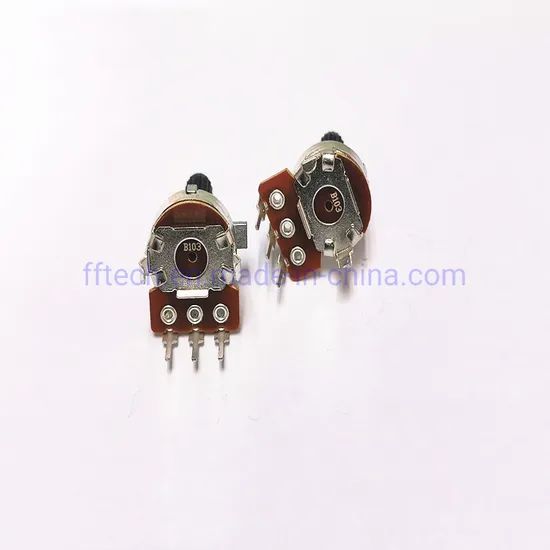

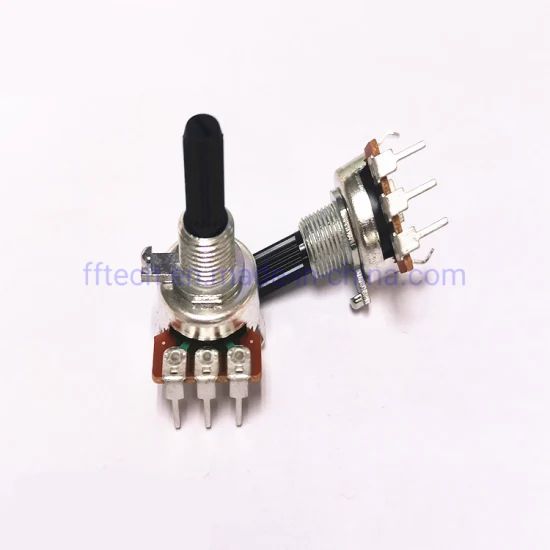

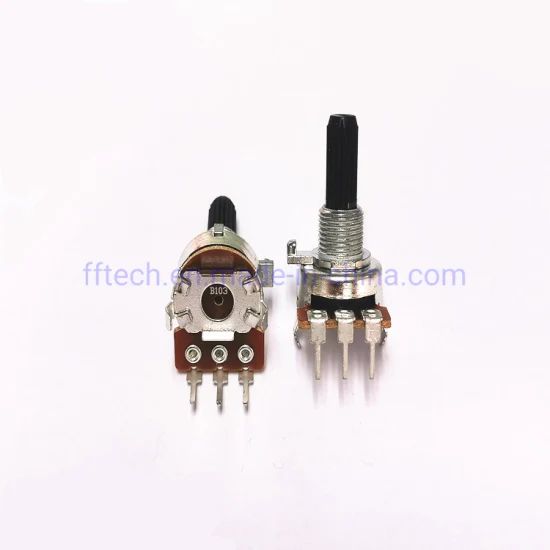

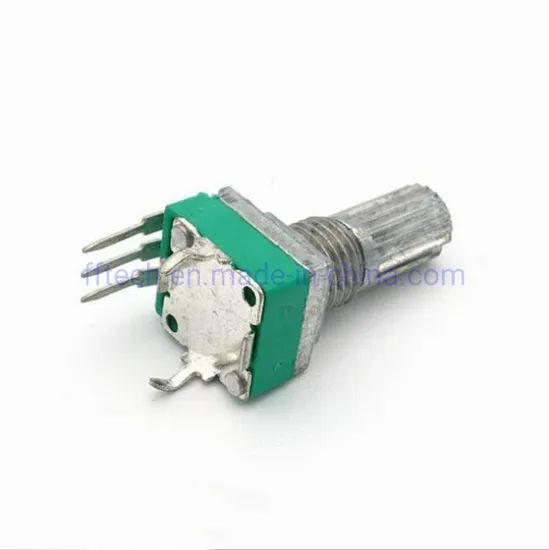

Good Quality R16 B50K Plastic Shaft Rotary Potentiometer R16 Insulated Shaft Potentiometer
Pieces
Negotiable
Product information
High-quality Good Quality R16 B50K Plastic Shaft Rotary Potentiometer R16 Insulated Shaft Potentiometer supplied by FF TEK CO., LIMITED. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
50, 000, 000 PCS/Month
HS Code:
8451900000
Application:
Audio
Installation:
DIP Resistor
Quantity:
Duplex
Trademark:
FF
Trade Term:
FOB, EXW, CFR, CIF, DAP
Payment Term:
LC, T/T, PayPal
Specifications
Production Capacity:
50, 000, 000 PCS/Month
HS Code:
8451900000
Application:
Audio
Installation:
DIP Resistor
Quantity:
Duplex
Trademark:
FF
Trade Term:
FOB, EXW, CFR, CIF, DAP
Payment Term:
LC, T/T, PayPal
Resistance Change Scale:
Log Scale
Material:
Metal Film Resistor
Brand:
None
Model NO.:
R1616N-D-N5
Type:
Rotary Potentiometer
Specification:
Rotary type
Port Of Loading:
ShenZhen, HongKong
Origin:
Shenzhen
Shape:
Square
Packaging:
Throught Hole
Transport Package:
Tray Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAP
Port Of Loading:
ShenZhen, HongKong
Certificates:
Business License, Rohs Certificate of H62, Rohs Certificate of PBT, Rohs Certificate of Plating 1, Rohs Certificate of Plating 2, SGS, SGS Certified Supplier
Product descriptions from the supplier
| Electrical Characteristics | |
| Total Resistance Range | 1KΩ<R<1MΩ,±20%; 1KΩ≥R or1KΩ≥1MΩ,±30% |
| Resistance Taper | A.B.C |
| Max. Operating Voltage | AC 50V, DC 10V |
| Rated Power | 0.2W |
| Insulation Resistance | 100MΩ 1 Min at DC 250V |
| Withstand Voltage | 1 minute at AC 250V |
| Residual Resistance | 50Ω Max |
| Gang Error (Dual Unit or Multi-unit) | -40db~Odb±3db |
| Mechanical characteristics | |
| Detent | 1(Center) detent, 11 detents |
| Total Rotational Angle | 300°±10° |
| Push-Pull Strength | Pull: 10Kgf Min; Push: 10Kgf Min at 10sec |
| Rotational Torque | 30-200gf.cm |
| Stopper Strength | 6.0Kgf.cm Min |
| Shaft Wobble | 0.7*L/20mmp-p |
| Detent Torque | 20~ 250gf.cm |
| Bushing nut tighten Strength | 10.0Kgf.cm |
| Durability | |
| Rotational Life | Standard life: 10,000 Cycles Min. |
| Cold Test | -20±2°C for 96 hours. △TR< ±15% |
| Dry Heat | 70±2°C for 96 hours. △TR< ±15% |
| Temperature Cycle | 20~+70°C, 5 cycles. △TR< ±15% |
| Soldering Condition | Solder dip: 260±5°C 5 Sec; Manual Soldering: 350°C±10°C 3 sec |
1.Flux builded-up prevention is taken through inserting molding around the resistorwith resin.
2.A large variety of products lined up to support various applications.
3.The shaft handle is plastic insulated shaft, the product performance is stable, For circuit, shaft shape, shaft length and installation mode, they are many options.
4.Long Life Type Available.
5. The Products are mainly applied to multi-media audio device, Power amplifier and other electronic equipments. Also can be used in Household appliances,medical equipment, the main functions include adjusting the volume, voltage, temperature, light and so on.
Q: Where Can we get the datasheets of the products?
A: Each product has the specification, Please contact with our sales if you need
Q: Can we get the samples before placing the order?
A:Yes. we can send you some free samples for your test before your order.
Q:How long is the lead time?
A:Normally we keep stock for most products, the lead time is 5~7 days as soon as the payment is released.
For customized products, it takes longer.
Q: How about the after-sale service?
A:We offer 12 months for every products we sold. If you meet any problems after sales, Pls contact us freely,we'll help solving the problems within 24 hours.
Q: What's the payment terms?
A:Normally we accept TT and Paypal. L/C is also accepted if the order quantity is large. For old customers, we'll guanartee monthly payment after good cooperationship.
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q:Does your company accept small order?
A: Yes, we accept small trial order.
Q: Do you support customization?
A: We support the OEM&ODM service.
