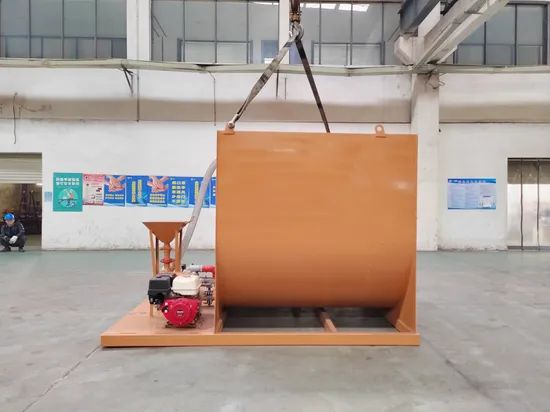

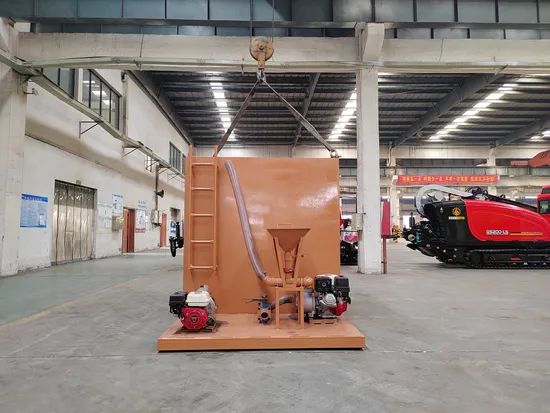

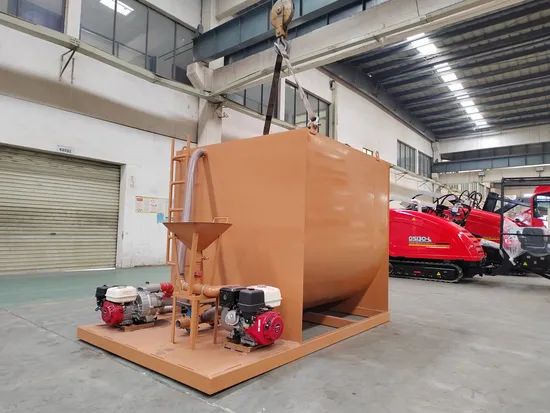

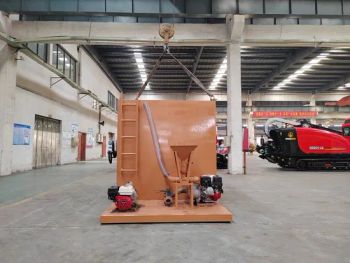

Goodeng GMS5000 Mud mixing system
1 Piece
$1,000Product information
High-quality Goodeng GMS5000 Mud mixing system supplied by Jiangsu Goodeng Heavy Machinery Technology Co., Ltd. Bulk wholesale pricing is $1,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
2800× 1800× 2000mm
Production Capacity:
3000 Set/Year
HS Code:
84314320
Operation Pressure:
Atmospheric Pressure
Material:
Cast Steel
Origin:
China
Transport Package:
Container
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Specification:
2800× 1800× 2000mm
Production Capacity:
3000 Set/Year
HS Code:
84314320
Operation Pressure:
Atmospheric Pressure
Material:
Cast Steel
Origin:
China
Transport Package:
Container
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GMS5000
Trademark:
GOODENG
Power Source:
Hydraulic
Payment Term:
LC, T/T, Western Union
Certification:
RoHS, ISO 9001:2000
Port Of Loading:
Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2011-08-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
446
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE, ISO9001:2015
Product descriptions from the supplier
Scope of use: Mixing mud is the main purpose of the mud mixing system, which is often used in trenchless pipeline construction, geological drilling, and oil drilling.

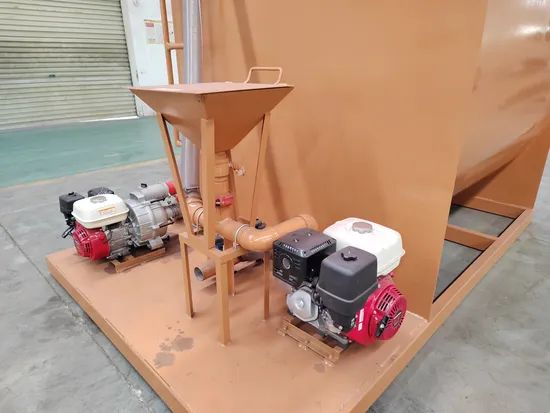

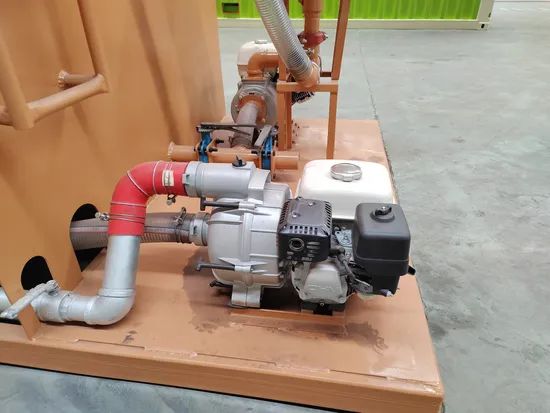

Components: The mud mixing system consists of a mud tank, a pump group, an injection device, an agitator, an electrical control system, a valve group, and a piping system. The injection mixing device can achieve rapid slurry mixing, so that the added drugs and bentonite are evenly dispersed and not easy to agglomerate.
The mud tank can be equipped with a single or multiple units. The number and power of the agitator depends on the size and volume of the mud tank. The mud pump uses mud.
Goodeng has created and manufactured a mud mixing system on its own, especially for drilling and non-excavation construction. Numerous building units have all praised the product when it was manufactured and released onto the market. Equal mixing, effective results, a lovely appearance, and easy mobility.
Mud circulation tanks are generally placed at the excavation and soil entry points of non excavation projects, and are equipped with purification equipment such as vibrating screens, integrated mud and sand removal machines, centrifuges, etc. Users can choose according to their engineering needs.
| Item | Metric Unit | Imperial Unit |
| Capacity | 5000 L | 1321 gallon |
| Dimension | 2800×1800×2000 mm | 110×71×79 inch |
| Weight | 970 kg | 2138 lbs |
| Gasoline Engine | 11hp 8.7 kw | Efflux 11hp |
| 5hp 3.6 kw | Stir 5hp | |
| Cycling volume | 30 m³/h | 1060 ft³/h |
| Outlet | 3 inch | 3 inch |
| Lift | 20 m | 66 feet |
Goodeng Machine was established in 2002. The company has production bases locating in China and Thailand and 2 overseas branch offices locating in Malaysia and India, covering a total area around 200,000 square meters.
The main products include GS series horizontal directional drilling rigs, GPY series static hydraulic piling rigs, GM series open-pit surface drilling rigs and drilling tools. Annual sales exceed 3,000 units.
We have offices and professional after-sales service teams in many countries. We will provide you with engineering training, installation and commissioning services.We can aslo provide the complete solution for engineering construction.
1. What about the warranty time?
A:12 months after shipment or 2000 working hours,whichever occurs first.
2. What about the delivery time?
A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
A:On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or
against the copy of original BL for old client.
On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
A: We can ship machine by sea and road.
