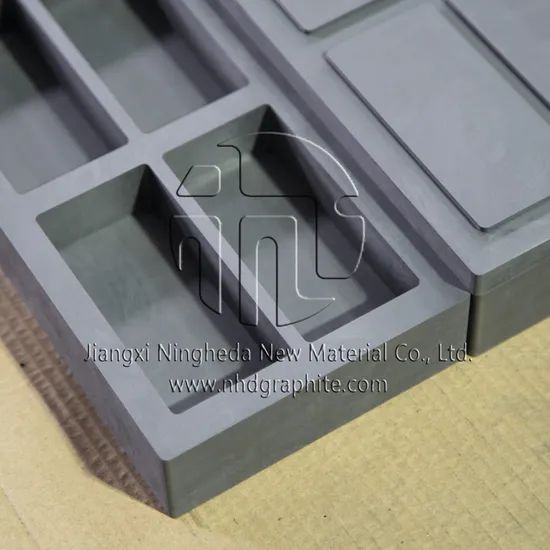

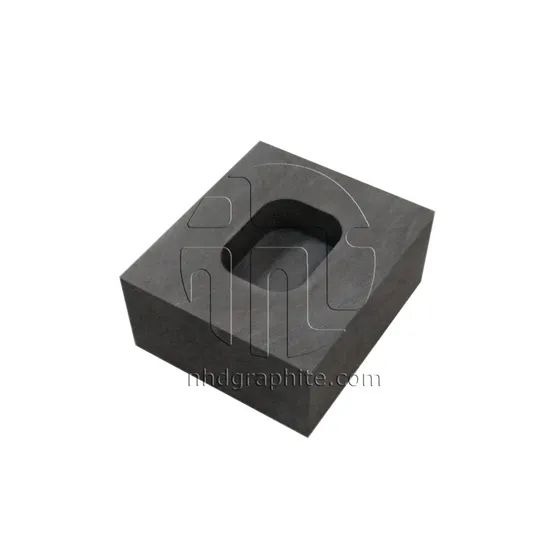

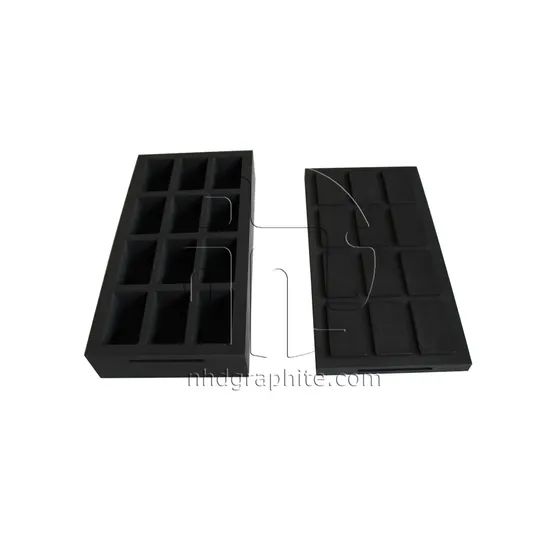

Graphite Ingot Mould for Gold Silver Platinum Bar Graphite Crucible

What is graphite ingot mold?

Graphite ingot mold, commonly known as graphite oil tank, is a container used to hold metal liquids such as gold, silver, copper, etc., until the metal liquid is cooled to form a block. The graphite ingot molds of Jiangxi Ningheda New Material Co., Ltd. are usually processed with NX604 or NX605 grade molded graphite, of which bulk density is over 1.85cc, and compressive strength over 65MPa, with long service life and easy demolding, and never contaminating metals.

Advantages of graphite ingot molds:

1. Graphite material has excellent performance, good corrosion resistance, acid and alkali resistance, and can cast any metal.
2. The graphite ingot mold has good thermal shock, and rapid cooling and heating will not cause cracks.
3. Graphite ingot molds have good self-lubricating properties, and metal bars such as gold and silver bars are easy to demold after cooling.
4. With advanced processing equipment, the shape and design of the graphite ingot mold can fully meet customer requirements.
5. With excellent processing technology, the shape and inner wall of the graphite ingot mold are smooth, beautiful, and with good performance.
6. The graphite ingot mold has a long service life and is widely praised by customers.
Storage of graphite ingot mold:

Storage of graphite ingot mold:

Graphite ingot molds are most afraid of moisture, and damp graphite ingot molds are easily oxidized or even cracked after being heated. If a damp graphite ingot mold is used, it may cause cracks, bursts, cuts and bottoms, etc., which will cause the loss of molten metal, and even work-related accidents. Therefore, the graphite ingot mold must be protected from moisture during storage and use.
The warehouse for storing graphite ingot molds should be dry and ventilated, and the temperature should be kept between 5ºC~25ºC, and the relative humidity should be 50~60%. It should not be stacked on the soil or cement floor to avoid moisture. Bulk graphite ingot molds should be placed on a wooden frame, preferably 25cm above the ground, and packaged in wooden boxes, wicker baskets or straw bags, and sleepers are required under the stack, and no less than 20cm from the ground. Laying a layer of linoleum on the sleepers is more conducive to moisture insulation. Stacking must be inverted for a certain period of time, and the interval of inverting stacks should not be too long. Stacking should be done once every one or two months. If the ground is not damp, the stacking time can be relatively extended. In short, frequent stacking can receive good moisture-proof effect.



Company Profile

Established in 2017, located in Fengxin Industrial Area, Yichun City, Jiangxi Province, China, Jiangxi Ningheda New Material Co., Ltd. is the subsidiary company of Jiangxi Ningxin New Material Co., Ltd.

Jiangxi Ningxin New Material Co., Ltd. is an enterprise which specializes in R&D, production and sale of special graphite. The total investment is RMB 180 million. It covers an area of more than 70000 square meters and produces 10000 tons of special graphite annually, which makes Ningxin to be the leading enterprise in the domestic industry.

On November 8^th, 2016, Ningxin was listed of Chinese new third board. The stock abbreviation is Ningxin New Material, and stock code is 839719.
Jiangxi Ningheda New Material Co., Ltd. is mainly engaged in graphite product processing, graphite product matching service, providing graphite materials, graphite electrode and graphite products for the lithium industry, rare earth industry, machinery industry, aerospace, semiconductor and solar photovoltaic industry, together with the corresponding products technical service and technical application of update program.


With excellent production technology, good customer service, high market share, and relying on the advantage of new material, capital and management of parent company (Jiangxi Ningxin New Material Co., Ltd.), Jiangxi Ningheda New Material Co., Ltd. develops quickly. We devote to the extension of the special graphite industry chain, and make contributions for building the future whole graphite industry strategy.

Ningheda Graphite Technical Characteristic:

Advantages of Ningheda graphite raw material

1. The processing materials are ultrafine granule structure, high purity and graphite with high graphitization degree.
2. High hardness, good anti-oxidation performance and high machining accuracy
3. Good conductivity, high resistivity, sufficient mechanical strength
4. Small porosity and dense structure.
5. Excellent thermal shock resistance, conductive and thermal conductivity.
6. High temperature resistance, corrosion resistance, acid and alkali resistance, good wear resistance.
7. Surface can be treated with anti-oxidation.

Why choose graphite of Jiangxi Ningheda New Material Co., Ltd.?

1. Stable quality, reasonable price, efficient communication, timely delivery.
2. Many experts with more than 20 years of experience in graphite industry, we not only provide graphite products, but also provide application solutions for the corresponding industry.
3. The company's strength and scale are in a leading position in China, with emphasis on reputation and worry-free after-sales.
4. The products sell well in many countries worldwide, with rich experience in import and export, and complete various certificates to ensure that the goods reach the customer smoothly.
5. With professional designers, OEM and ODM are available.
6. Fast and convenient delivery method, which can guarantee the timeliness.

Graphite Ingot Mould for Gold Silver Platinum Bar Graphite Crucible
