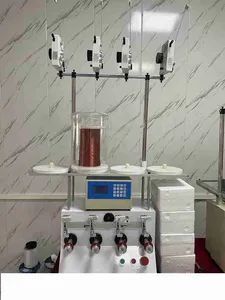

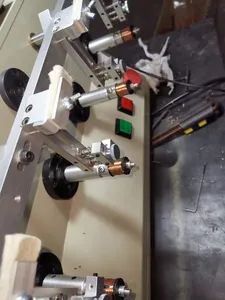

Gwp9-04 Four Spindle Coil Winding Machine
Piece
Negotiable
Product information
High-quality Gwp9-04 Four Spindle Coil Winding Machine supplied by Tianjin Grewin Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Wire Speed:
0-30mm/S
Spread Pitch:
0-9.999mm
Wire Diameter:
0.04-0.6mm
Production Capacity:
100PCS/Month
Wire Distance:
100mm(Max)
Package Gross Weight:
150.000kg
Voltage:
220V
Spindles:
4
Specifications
Wire Speed:
0-30mm/S
Spread Pitch:
0-9.999mm
Wire Diameter:
0.04-0.6mm
Production Capacity:
100PCS/Month
Wire Distance:
100mm(Max)
Package Gross Weight:
150.000kg
Voltage:
220V
Spindles:
4
Main Motor:
550W Three-Phase AC Motor +750W Frequency Converte
Max Speed:
6000rpm
Power:
700W
HS Code:
85043190
Package Size:
90.00cm * 90.00cm * 100.00cm
Memory:
999 Sequences
Automatic:
Automatic
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
EXW, CFR, CIF, FAS, DDP, DAP, CIP, CPT, Others, FCA
Transport Package:
Export Standard Carton or Customize Strong Pallet
Name:
Four Spindle Coil Winding Machine
Model NO.:
GWP9-04
Specification:
GWTM-0218
Trademark:
Grewin
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Certification:
RoHS, CE, ISO
Power Source:
Single-Phase 220V±10%,50Hz
Payment Methods:
Support payments in USD
Port Of Loading:
TIANJIN XINGANG SEA PORT, SHANGHAI SEA PORT, QINGHUANGDAO SEA PORT
Coil Type:
Toroid,Bobbin Type
Spread Motor:
Two Phase Hybrid Stepping Motor, Static Torque 2n.
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-08-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
EXW, CFR, CIF, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
TIANJIN XINGANG SEA PORT, SHANGHAI SEA PORT, QINGHUANGDAO SEA PORT
Certificates:
Alibaba Member certificate, Applicant:TIANJIN GREWIN TECHNOLOGY CO.,LTED. Manufacture:TIANJIN GREWIN TECHNOLOGY CO.,LTD. Product Name: TRANSFORMER Trade Name:GREWIN, Business Licence, CB certificate, CE CERTIFICATE for HIGH FREQUENCY TRANSFORMER, EMC CERTIFICATE, Excellence&Innovation Awards, ISO9000, ISO9000:2015 Certificate, LVD CE CERTIFICATE, SGS Audit Supplier, Transformer IEC test report
Product descriptions from the supplier
1.Product Description
GWP9-04Four Spindle Coil Winding Machine
| Spindles | 4 | Spread Motor | Two Phase hybrid stepping motor, static torque 2N.M |
| Wire diameter | 0.04-0.6mm |
Max Speed | 6000rpm |
| Spread Pitch | 0-9.999mm | Memory | 999 Sequences |
| Wire distance | 100mm(Max) | Power Source | Single-Phase 220V±10%,50HZ |
| Wire speed | 0-30mm/s | Rotation diameter | 0-80mm |
| Main Motor | 550W three-phase AC motor +750w frequency converter | Power | 700W |
Software function:
Bobbin basic parameter:
input. Starting point, width, spacing, winding circle number, start, stop, spindle positioning, spindle low speed, spindle high speed,spindle direction, wire arrangement direction, floor stop.
Spindle climbing time setting, special winding function selection (as picture below).
- During winding, the position of the wire device can be manually adjusted to realize fine adjustment during precise wiring. This function needs to be customized by users.
- The system has 1450 sections of data storage space, which can store up to 999 skeleton parameters. The adjusted skeleton parameters can be permanently saved. When replacing products, just replace the corresponding fixture and select the corresponding bobbin parameters.
- While the power is cut off suddenly during winding, the system will saves the last winding state. When get power again, press the start key, it will continue to wind the unfinished coil.
- Software can be customized for special functions.
Product Features:
1. Using 32-bit ARM control chip and Sailingsi CPLD, the calculation speed is faster and the error is effectively reduced.
2. Input and output are all photoelectrically isolated and work stably.
3.Chinese LCD display, simple and convenient to operate.
4. Intelligently input the starting point and the wire width.
5. The winding displacement and reverse can decelerate intelligently, which can ensure faster winding displacement and greater torque at the same time.
6. The spindle climbing time can be set, the spindle speed can be changed in real time, and over speed tracking can be carried out.
7. Save the winding data in the situation of power failure, so as to effectively avoid the scrapping of coils caused by sudden power failure.
8. The position of the cable rack can be adjusted manually during the winding process.
9. The bearing belt (which is imported from Japan), Taiwan ball screw and cast iron box are used to ensure stable performance.
Scope of Application
- Ordinary transformer
- High frequency transformer
- Solenoid valve coil
- Multi-tap coil
- Layer wrapped tape coil
- The coils of precision parallel winding machine
- Coils with larger diameter
Packing:
Packing: Wooden Box
Packing size: 500mm*870mm*700mm
Package weight: 105kg
PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain theMulti Spindle Coil Winding Machine.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
2.Other related machine:
GWP-99-50 Automatic Eight Spindles CoilWinding Machine
| Number of winding spindles | 8\10\12\16 |
| Spindle speed | 10000rpm |
| Wire diameter | 0.05-0.6mm (more than 0.4mm need to add different accessories) |
| Spindle spacing | 126mm\99mm\81mm\60mm |
| Maximum bobbin outer diameter | 60mm\45mm\40mm\28mm |
| Spindle Inner Diameter | Standard:10mm Special :12mm\14mm |
| Guide pin moving range | X:80 Y:100 Z:70 mm |
| Winding motor power | 1.5KW\2.0KW |
| X\Y\Z axis power | 400W\750W |
| Pressure | 0.4-0.65Mpa |
| Supply voltage | AC220V±10% 50HZ |
| Total power | 2.8KW\4.0KW |
| Machine size | Length:1100mm Width:1000mm Height:1400mm |
| Machine weight | 800Kg |
Description of main parts
| Winding servo motor | Panasonic Japan |
| X/Y/Z-axis servo motor | Panasonic Japan |
| Control System | Weiding high-precision six-axis motion controller |
| Human-machine interface | 7-inch WEINVIEW touch screen |
| Screw guide | Taiwan TBI, grade C accuracy |
| Timing belt | BANDO Japan |
| Bearing | NSK Japan |
| Sensors | Omron |
| Tensioner | High-precision magnetic tensioner |
| Spindle box | Cast iron box |
| Worktable board | Cast iron platen |
| Other mechanical components | Independent design |
| Number of spindles | 8 |
| Spindle speed | 0-10000rpm |
| Wire diameter | 0.05-0.35mm (with different tension system) |
| Rotary diameter | 0-50mm |
| Moving travel | 0-60mm |
| Spindle motor | 750W+1HP Inverter |
MainComponentDescription:
| Controller | Weiding controller, with Weilun 7 inch full LCD touch screen in English |
| Screw | TBI, C-class precision |
| Timing belt | BANDO |
| Bearing | NSK |
| Tensioner | Mechanical by Self development |
| Main cabinet | Cast iron cabinet Self development |
| Working platen | Cast iron platen Self development |
PRE-SALE:
The customer service department of Grewin Group consists of specialist engineers are experienced in all aspects of coil winding technology ,who can answer and provide innovative solutions to difficult coil winding problems in the fastest time.We can quote price within 1 day.
IN SALE:
For us, We can delivery machines in maximum 10 days.
Sales are not selling products, and then go away. Our aim is to serve our customers wholeheartedly. To this end, we offer our clients free advice.In the communication with customers, we not only have an in-depth understanding of the actual needs of our customers, but also provide professional advices, including the choice of accessories types and machines'consumable parts etc.
AFTER-SALE:
We provide remote services to our customers through video instruction and by phone during 24 hours, allowing clients to purchase products without any worries.We can provide 1 Year warranty and provide you free mainframe.
Compared to other machine manufacturers, our machines' magazine material is the best and excellent performance life.Our Grewin Group has 28 years history and very stable longer service.
