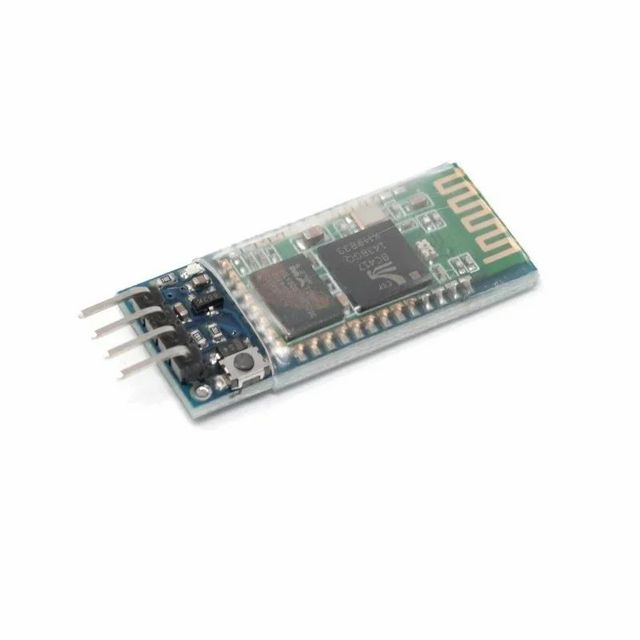

HC-05 4pin Bluetooth Module(Master/Slave) with Button, For Electronics
1 Piece
$5.28Product information
High-quality HC-05 4pin Bluetooth Module(Master/Slave) with Button, For Electronics supplied by TECHNOBERRY. Bulk wholesale pricing is $5.28 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Working Temperature:
-20 ~ +75
Sensitivity:
-84dBm at 0.1% BER
Voltage:
1.7 - 5.5 V
Maximum Operating Range (M):
10
Default Password:
1234 Or 0000
Frequency Range:
2.4GHz ISM band
Command Mode Baud Rate:
38400, 8, N, 1
Pin Count:
4
Specifications
Working Temperature:
-20 ~ +75
Sensitivity:
-84dBm at 0.1% BER
Voltage:
1.7 - 5.5 V
Maximum Operating Range (M):
10
Default Password:
1234 Or 0000
Frequency Range:
2.4GHz ISM band
Command Mode Baud Rate:
38400, 8, N, 1
Pin Count:
4
Power Supply Voltage:
5v
Data Mode Baud Rate:
9600, 8, N, 1
Color:
Blue
Mode Control:
Button Toggles Between Command And Data Mode
Connection Capability:
Connects To Phones, Computers, And Other Slave Devices
Ground Connection:
Connects To System Ground
Default Operating Mode:
Data Mode
Usage/Application:
Electronics
Applications:
Embedded Projects, Industrial Applications, Computer And Portable Devices, Gps Receiver
Brand:
Generic
Model Name/Number:
HC-05 4pin Bluetooth Module
Default Bluetooth Name:
Hc-05
Status Indicator:
Led Blinks Once Every 2 Seconds In Command Mode, Repeatedly Blinking When Waiting For Connection, Blinks Twice Every Second When Connected
Bluetooth Mode:
Master Or Slave
Receive Pin Function:
Receive Serial Data And Broadcasts Via Bluetooth
Default Communication Role:
Slave
Trade Term:
To be discussed
Payment Term:
To be discussed
Transmit Pin Function:
Transmits Serial Data Received Via Bluetooth
Communication Protocol:
Uart
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2024
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
HC-05 4 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.
The HC-05 4pin Bluetooth Module(Master/Slave) with Button can be used as a Master as well as a slave device for transmitter and receiver. This means that it can connect to most phones and computers with Bluetooth aw well as to another slave device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary.

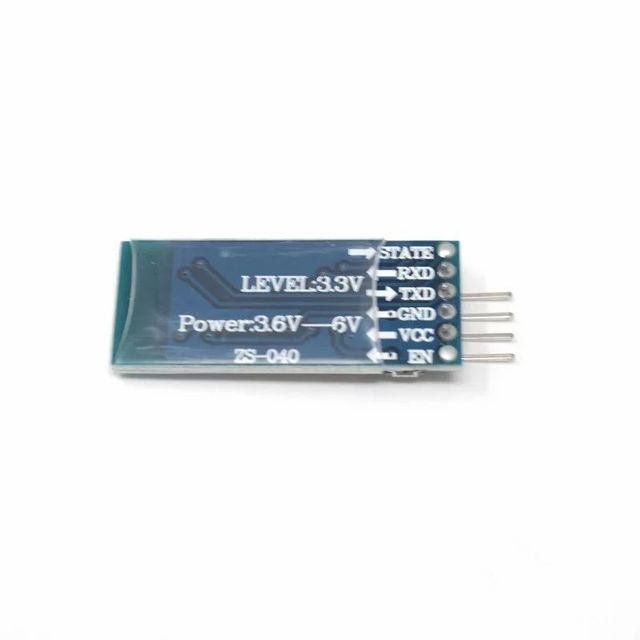

Pin Description:| SN | PIN | Description |
| 1 | RXD | Receive Serial Data. Every serial data given to this pin will be broadcasted via Bluetooth |
| 2 | TXD | Transmits Serial Data. Everything received via Bluetooth will be given out by this pin as serial data. |
| 3 | VCC | Powers the module. Connect to +5V Supply voltage |
| 4 | GND | Ground pin of module, connect to system ground. |
| 5 | LED | Indicates the status of Module Blink once in 2 sec: Module has entered Command Mode Repeated Blinking: Waiting for connection in Data Mode Blink twice in 1 sec: Connection successful in Data Mode |
| 6 | Button | Used to control the Key/Enable pin to toggle between Data and command Mode |
- Default Bluetooth Name: “HC-05”
- Default Password: 1234 or 0000
- Default Communication: Slave
- Default Mode: Data Mode
- Data Mode Baud Rate: 9600, 8, N, 1
- Command Mode Baud Rate: 38400, 8, N, 1
- Embedded Projects.
- Industrial Applications.
- Computer and Portable Devices.
- GPS receiver.
