HC 05 6 Pin Bluetooth Module, For Equipment Modulation GFSK Frequency 2.4 GHz Sleep Current 1mA Part Number HC-05 Input Voltage
1 Piece
$1.98Product information
High-quality HC 05 6 Pin Bluetooth Module, For Equipment Modulation GFSK Frequency 2.4 GHz Sleep Current 1mA Part Number HC-05 Input Voltage supplied by Tayal Electronics. Bulk wholesale pricing is $1.98 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Sleep Current:
1mA
Bluetooth Version:
2.0 + EDR
Frequency:
2.4 GHz
Bluetooth Frequency:
2.4ghz Ism Band
Operating Voltage:
3.3 To 5 V, 5V DC
Input Voltage:
3.3v
Operating Temperature:
75 DegreeC
Sensitivity:
80 dBm, Typical -80dbm
Specifications
Sleep Current:
1mA
Bluetooth Version:
2.0 + EDR
Frequency:
2.4 GHz
Bluetooth Frequency:
2.4ghz Ism Band
Operating Voltage:
3.3 To 5 V, 5V DC
Input Voltage:
3.3v
Operating Temperature:
75 DegreeC
Sensitivity:
80 dBm, Typical -80dbm
Emission Class:
Class 2
Transmit Power:
Class 2, Up To 4dbm
Application Use:
Computer And Portable Devices, Embedded Projects, Gps Receiver, Industrial Applications
Physical Connector:
Edge Connector
Usage/Application:
Equipment
Modulation:
GFSK
Modulation Type:
Gfsk
Part Number:
HC-05
Antenna Type:
Integrated
Configuration Mode:
Master Or Slave
Baud Rate Support:
Programmable
Trade Term:
To be discussed
Payment Term:
To be discussed
Interface Type:
Uart
Programmable Input Output:
Yes
Rohs Compliance:
Yes
Sensitivity Accuracy:
≤-84dbm At 0.1% Ber
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2014
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Product Description

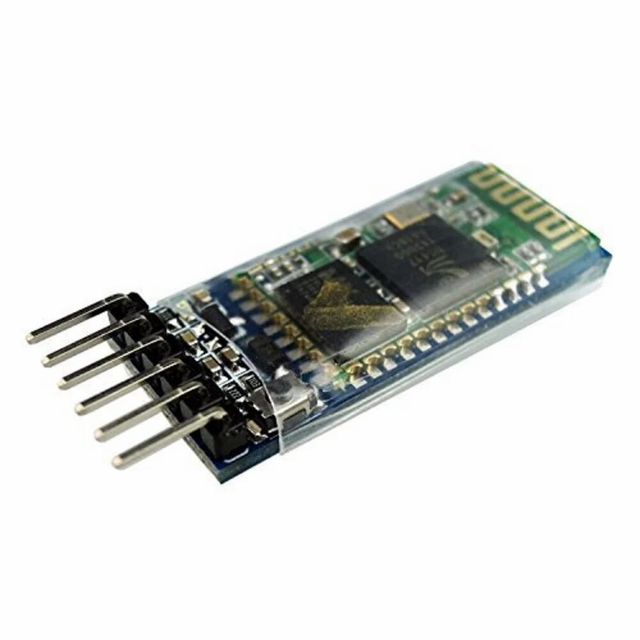

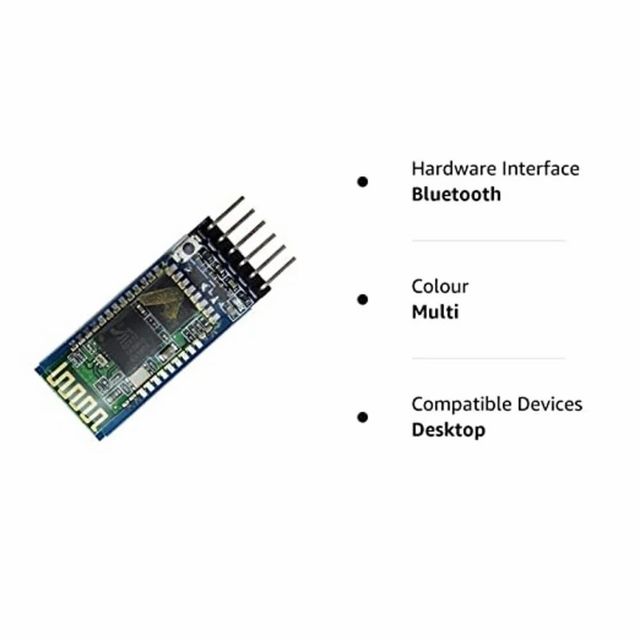

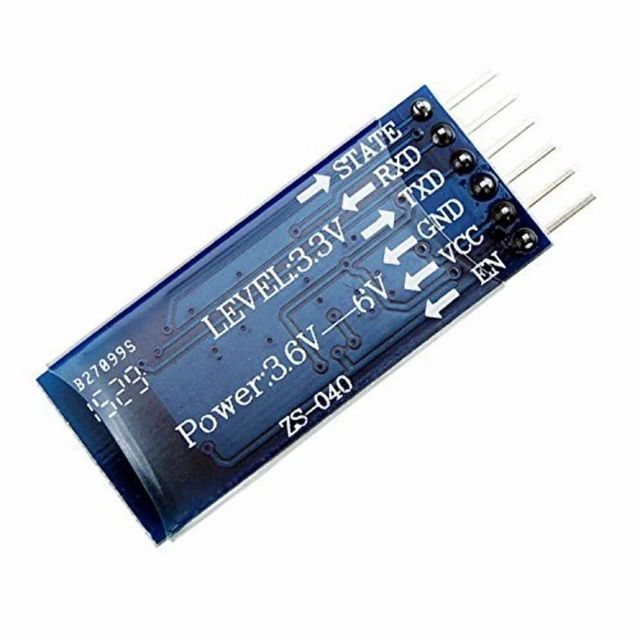

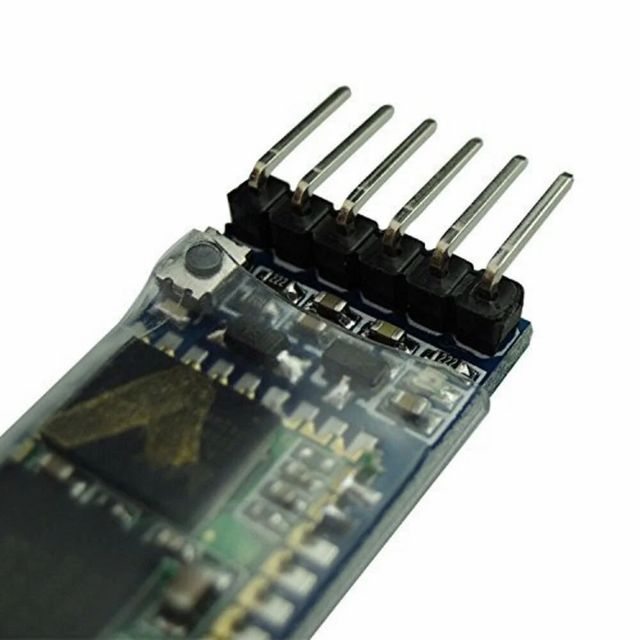

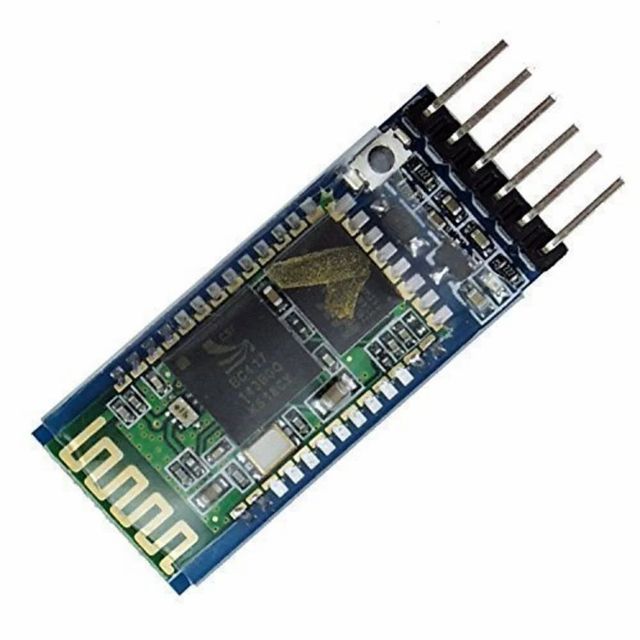

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.
The HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.
Features
- HC‐05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. The HC-05 Bluetooth Module can be used in a Master or Slave configuration, making it a great solution for wireless communication.
- Typical ‐80dBm sensitivity.
- Up to 4dBm RF transmit power.
- 3.3 to 5 V I/O.
- PIO(Programmable Input/Output) control.
- UART interface with programmable baud rate.
- With integrated antenna.
- With edge connector
Applications:
- Embedded Projects.
- Industrial Applications.
- Computer and Portable Devices.
- GPS receiver.
Package Includes
- 1 x HC-05 6pin Bluetooth Module with Button
QUICK OVERVIEW
- Frequency: 2.4GHz ISM band
- Modulation: GFSK(Gaussian Frequency Shift Keying)
- Emission power: ≤4dBm, Class 2
- Sensitivity: ≤-84dBm at 0.1% BERCSR Bluetooth Chip Solution
- Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
- Incredible small size with 3.3V input, and RoHS Compliant
- UART interface and with baud rate setup function
