HD-R712T Full Color Receiving Card Power 5W Voltage 4.0V-5.0V Power_ports 2 X 5v Power_consumption 5w Input Voltage 230V
1 Piece
$9.35Product information
High-quality HD-R712T Full Color Receiving Card Power 5W Voltage 4.0V-5.0V Power_ports 2 X 5v Power_consumption 5w Input Voltage 230V supplied by Koshi Electronics. Bulk wholesale pricing is $9.35 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Hub Interface Count:
12
Output Voltage:
12V DC
Ethernet Ports:
2 X 1 Gbps
Power Ports:
2 X 5v
Input Voltage:
230V AC
Gray Scale Range:
256~65536
Maximum Loading Capacity:
262144 Pixels
Voltage:
4.0V-5.0V
Specifications
Hub Interface Count:
12
Output Voltage:
12V DC
Ethernet Ports:
2 X 1 Gbps
Power Ports:
2 X 5v
Input Voltage:
230V AC
Gray Scale Range:
256~65536
Maximum Loading Capacity:
262144 Pixels
Voltage:
4.0V-5.0V
Power Input Voltage:
4.0v-5.5v
Power:
5W
Power Consumption:
5w
Communication Distance:
80 Meters
Smart Setting Capability:
A Few Simple Steps To Complete The Smart Settings, Through The Screen Layout Can Be Set To Go With Any Alignment Of The Screen Unit Board
Usage/Application:
COLOR RECEIVING CARD
Module Compatibility:
Compatible With All Common Ic Module, Supported Most Pwm Ic Module
Recommended Loading Capacity:
Conventional Chip 128*1024 Pixels, Pwm Chip 256*1024 Pixels
Sending Card Modes:
Dual-mode Sending Box, Asynchronous Sending Card, Synchronous Sending Card
Communication Method:
Gigabit Ethernet
Hub Interface Type:
Hub75e
Test Function:
Integrated Screen Test Function, Test Display Brightness Uniformity And Display Module Flatness
Multi Card Connection:
Receiving Card Can Be Put In Any Sequence
Input Phase:
Single Phase
Scan Mode:
Supports Any Scanning Method From Static To 1/128 Scan
Trade Term:
To be discussed
Payment Term:
To be discussed
Video Processor Series:
Vp Series
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2023
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

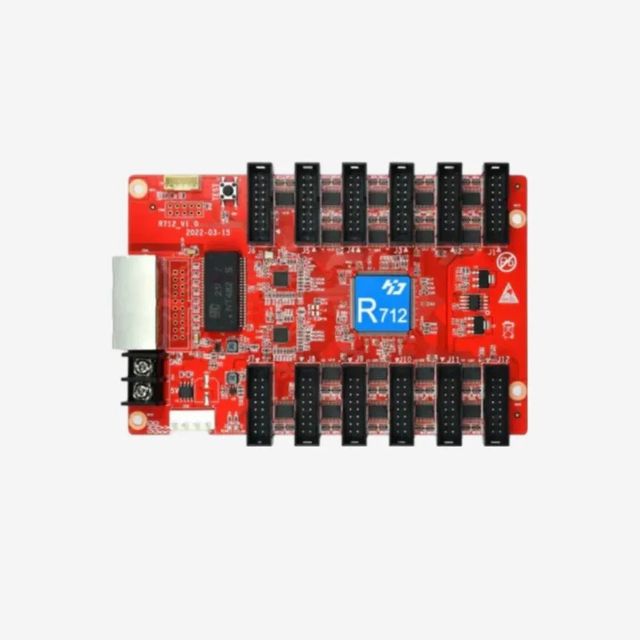

HD-R712T FULL-COLOR RECEIVING CARD
- Overview
R712 is an LED display receiving card that supports a synchronous and asynchronous control system; no - need for a HUB adapter board. It is equipped with a 12*HUB75E interface onboard, with good stability, and the maximum
loading capacity is 131,072 pixels.
2. Parameters
Features Parameters
With sending card
Dual-mode sending box, Asynchronous sending card, Synchronous sending card,
Video processor of VP series.
Module type Compatible with all common IC module, supported most PWM IC module.
Scan mode Supports any scanning method from static to 1/128 scan
Communication
method
Gigabit Ethernet
Control range
Maximum loading capacity: 262,144 pixels (512*512)
Recommended loading capacity: conventional chip 128*1024 pixels, PWM chip
256*1024pixels
Note: The actual loading capacity is related to the number of HUB ports/module
resolution.
Multi-card connection Receiving card can be put in any sequence
Gray scale 256~65536
Smart setting
A few simple steps to complete the smart settings, through the screen layout can be
set to go with any alignment of the screen unit board
Test functions
Receiving card integrated screen test function, Test display brightness uniformity
and display module flatness.
Communication
distance
Super Cat5, Cat6 network cable within 80 meters
Port DC 5V Power*2, 1 Gbps Ethernet port*2, HUB75E*12
Input voltage 4.0V-5.5V
Power 5W
