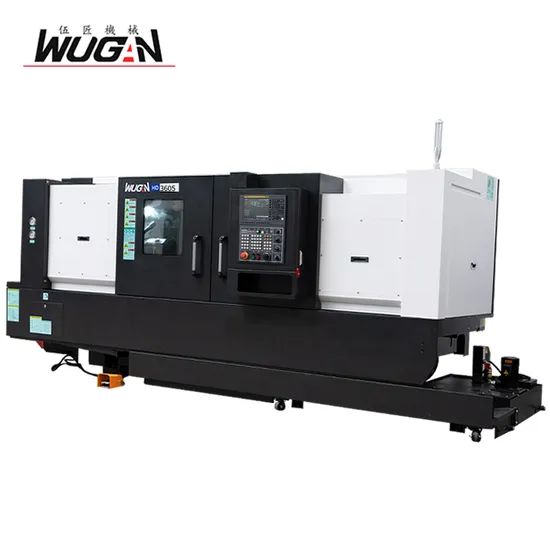

HD3605-19 CNC Metal Router 1Y Warranty 540mm 1350mm 18.5kW 12Stations
1 Piece
$40,0001 Piece
$50,000Product information
High-quality HD3605-19 CNC Metal Router 1Y Warranty 540mm 1350mm 18.5kW 12Stations supplied by Suzhou Wugan Intelligent Equipment Co., Ltd.. Bulk wholesale pricing ranges from $40,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Turret Index Time:
0.2
Bar Working Diameter:
102mm
No. Of Tool Stations:
12
Spindle Through Hole Diameter:
131mm
Max. Turning Length:
1350mm
Chuck Size:
15inch
Main Spindle Motor Power:
18.5/15
Max. Spindle Speed:
2000rpm
Specifications
Turret Index Time:
0.2
Bar Working Diameter:
102mm
No. Of Tool Stations:
12
Spindle Through Hole Diameter:
131mm
Max. Turning Length:
1350mm
Chuck Size:
15inch
Main Spindle Motor Power:
18.5/15
Max. Spindle Speed:
2000rpm
Production Capacity::
200pieces/Year
Rapid Traverse(X/Z):
24/30
Travel(X/Z):
295/1350
Specification:
2950x1800x2480mm
Max. Spindle Torque For Turning:
540/440
Max. Turing Diameter:
540mm
HS Code:
8458110090
Swing Over Bed:
940mm
Spindle Nose:
A2-11
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Origin:
China
Control Method:
Closed-Loop Control
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Model NO.:
HD3605-19
Performance Classification:
High-End CNC Machine Tools
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Condition:
New
After Sales Service:
One Year
Warranty:
One Year
Port::
Shanghai, China

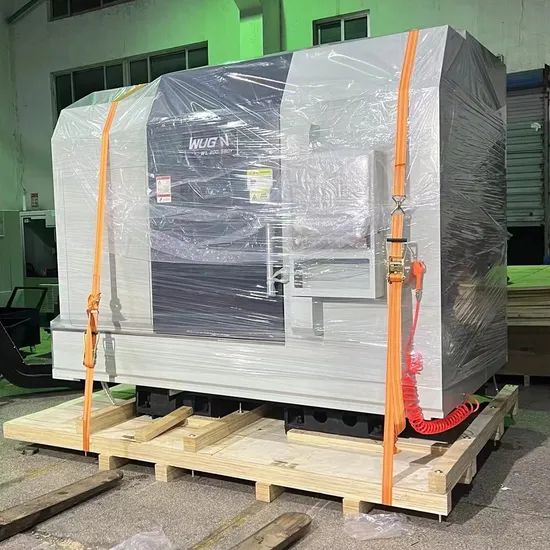

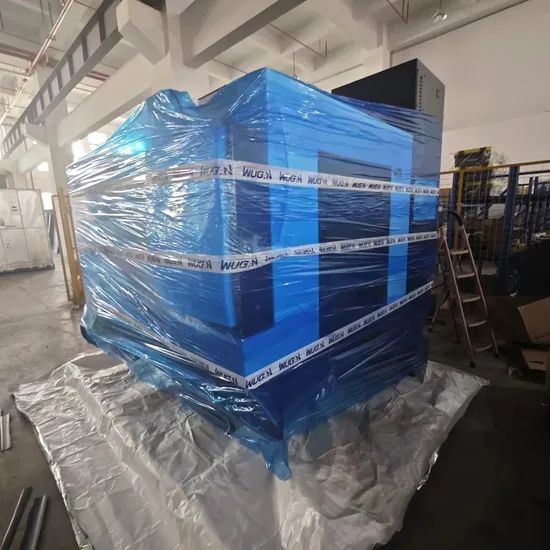

Transport Package:
Wooden Case/ Iron Box
Port Of Loading:
shanghai
Trademark:
wugan
Tool Size:
Φ32/ Φ50
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-01-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
shanghai
Product descriptions from the supplier
Product Description
- Robust Box Guideways: Our advanced heavy-duty cutting technology is enhanced with box guideways to ensure seamless precision and stability during rigorous operations.
- Solid 30° Slanted One-Piece Bed Structure: Engineered for exceptional rigidity, this unique design enhances overall machine stability for superior performance.
- Stabilized Unit Structure: Minimize thermal displacement for consistent accuracy, ensuring your operations run smoothly under any condition.
- Synchronised Control for Integrated Processing: Experience seamless integration with the synchronized Main/Sub spindle control (SY Type) for enhanced productivity.
-- Multi-Tasking Excellence: Featuring a wedge-type Y-axis BMT turret, our systems enable complex multi-tasking operations with ease.
Exceptional Rapid Traverse Rate: Achieve an impressive 30m/min on the Z-axis, ensuring swift and efficient machining.
- Ergonomic Design: Thoughtfully designed for easy access to the chuck and tool, enhancing operator comfort and efficiency.
Product Parameters
| Item | Unit | HD3605 | HD3605M | |
| Capacity | Swing over bed | mm | Φ940 | |
| Max. turning diameter | mm | Φ540 | Φ520 | |
| Max. turning length | mm | 1,350 | 1,256 | |
| Bar working diameter | mm | Φ102 | ||
| Spindle | Max. spindle speed | r/min | 2,000 | |
| Spindle nose | ISO | A2-11 | ||
| Spindle through hole diameter | mm | Φ131 | ||
| Chuck size | inch | 15" | ||
| Main spindle motor power | kW | 18.5/15 | ||
| Max. spindle torque for turning | Nm | 540/440 | ||
| Feedrate | Travel(X/Z) | mm | 295/1350 | |
| Rapid traverse(X/Z) | m/min | 24/30 | ||
| Turret | No. of tool stations | EA | 12 | |
| Tool size | mm | 32/ Φ50 | 32/ Φ50 | |
| Turret Index time | sec | 0.2 | ||
| Rotary tool Capacity | Collet size | - | - | ER40 |
| Tool holder mount type | - | BMT75 | ||
| Max. rotary tool speed | r/min | - | 4,000 | |
| Tailstock | Quill bore taper | - | MT5 | |
| Quill diameter | mm | Φ100 | ||
| Quill travel | mm | 120 | ||
| Machine dimension | Floor space | mm | 4,195X1,978 | |
| Height | mm | 1,857 | ||
| Weight | Kg | 7,200 | ||
| NC | CNC System | - | ||
Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
Utilizing sophisticated structural evaluation, we refined the machine’s architecture to strengthen the tool post and reduce overall height, ensuring consistent bed stability under intense heavy-duty machining tasks.
Additionally, the HD-SY Series features a 30-degree bed slope, ensuring utmost stability for superior machining results.
Integrated Coolant Tank
The coolant reservoir is positioned ahead for easy access. Debris is smoothly removed from the right edge, enhancing workflow efficiency.
Optimal Structural Analysis
Utilizing sophisticated structural evaluation, we refined the machine’s architecture to strengthen the tool post and reduce overall height, ensuring consistent bed stability under intense heavy-duty machining tasks.
Additionally, the HD-SY Series features a 30-degree bed slope, ensuring utmost stability for superior machining results.
Integrated Coolant Tank
The coolant reservoir is positioned ahead for easy access. Debris is smoothly removed from the right edge, enhancing workflow efficiency.
Box Guideway
The HD-SY Series is equipped with robust box guideways across all axes, offering enhanced travel capabilities and effectively dampening vibrations during intensive cutting tasks.
Sealed GIB Structure
The X-axis in the HD Series features a sealed GIB structure, preventing turcite damage from chips and ensuring prolonged machine integrity.
Rapid Traverse Rate(X/Y/Z/ZB)
HD 3605Y/SY achieves rapid speeds of 24/10/30/24 m/min across the axes, optimizing operation time.
Travel (X/Y/Z/ZB)
With capabilities of 265/120/1350/1350 mm, the HD 3605Y/SY provides comprehensive travel for versatile operations.
The HD-SY Series is equipped with robust box guideways across all axes, offering enhanced travel capabilities and effectively dampening vibrations during intensive cutting tasks.
Sealed GIB Structure
The X-axis in the HD Series features a sealed GIB structure, preventing turcite damage from chips and ensuring prolonged machine integrity.
Rapid Traverse Rate(X/Y/Z/ZB)
HD 3605Y/SY achieves rapid speeds of 24/10/30/24 m/min across the axes, optimizing operation time.
Travel (X/Y/Z/ZB)
With capabilities of 265/120/1350/1350 mm, the HD 3605Y/SY provides comprehensive travel for versatile operations.

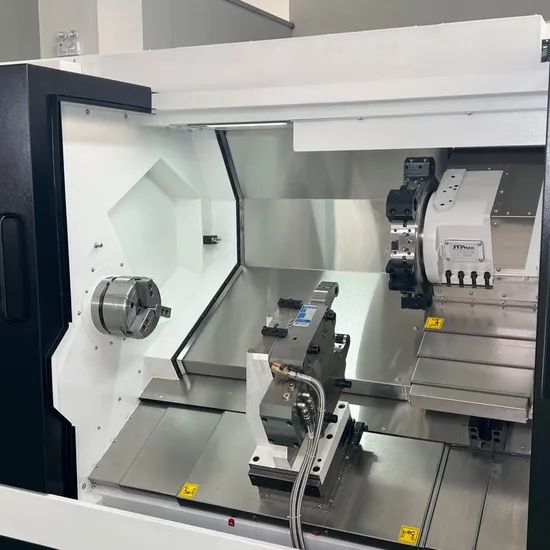

Mill Turret
Our BMT turret secures tools with precision using four bolts and a key, ensuring unparalleled reliability in rigidity and precision.
Our BMT turret secures tools with precision using four bolts and a key, ensuring unparalleled reliability in rigidity and precision.
Mill Tool Holder
Enhance machining capabilities with the straight milling head tool holder for side workpiece machining and the angular milling head tool holder for I.D. operations.
BMT 65P(HD3605Y/SY)
Speed(rpm): An impressive 4000 r/min, ensuring efficient and precise machining.
Collet size: ø20 (ER32), providing compatibility with a range of tooling options.
Indexing time: A swift 0.2 sec/step, optimizing operation efficiency.
Enhance machining capabilities with the straight milling head tool holder for side workpiece machining and the angular milling head tool holder for I.D. operations.
BMT 65P(HD3605Y/SY)
Speed(rpm): An impressive 4000 r/min, ensuring efficient and precise machining.
Collet size: ø20 (ER32), providing compatibility with a range of tooling options.
Indexing time: A swift 0.2 sec/step, optimizing operation efficiency.
Suzhou Wugan Intelligent Equipment Co., Ltd. focuses on developing advanced CNC lathes and turning machines, drawing on state-of-the-art global lathe innovations. Each product is engineered for strength, accuracy, and efficiency, combined with a refined and elegant design. To keep pace with changing client requirements, we provide powerful mill-turn systems that combine turning, milling, and drilling into a single platform. This enhances production efficiency and delivers flexibility to handle a wide range of machining tasks with ease.

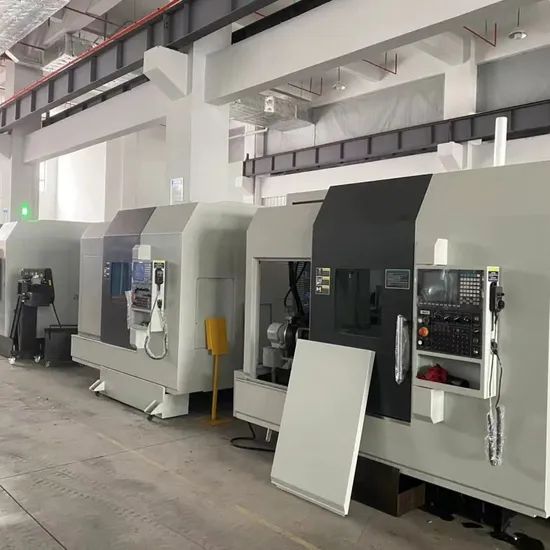

Manufacturing Workshop
