HDPE Pipe Welding Machine/Pipe Fusion Machines/Pipe Jointing Machine/Butt Welding Machine/HDPE Pipe Jointing Machine
Piece
Negotiable
Product information
High-quality HDPE Pipe Welding Machine/Pipe Fusion Machines/Pipe Jointing Machine/Butt Welding Machine/HDPE Pipe Jointing Machine supplied by ZHANGJIAGANG QING CHEN YU MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Welding Machine For PE Pipe:
63-1200mm
HS Code:
84778000
Model NO.:
90-1200mm
Certification:
CE
Specification:
CE
Origin:
China
Computerized:
Computerized
Trade Term:
FOB, EXW, CIF
Specifications
Welding Machine For PE Pipe:
63-1200mm
HS Code:
84778000
Model NO.:
90-1200mm
Certification:
CE
Specification:
CE
Origin:
China
Computerized:
Computerized
Trade Term:
FOB, EXW, CIF
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Production Capacity:
Uncertain
Trademark:
XJG
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Not specified
Product descriptions from the supplier

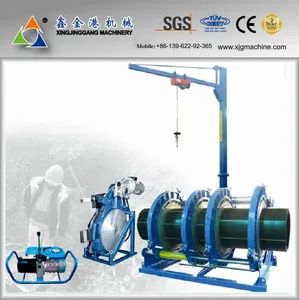

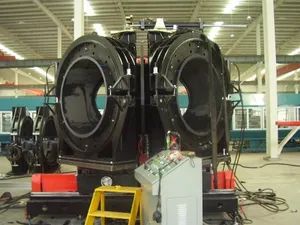

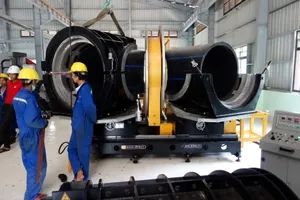

HDPE Pipe Welding Machine (00033333)
Application & feature
Used in industrial fields and workshop to weld PP,PE pipe and/or fittings ,etc
It consists of machine body, milling plate , heating mirror , hydraulic station , tool stand and option spare parts etc.
Hydraulic system adopts international advanced compact structure , cylinder seal ring and quick joint nozzle all use Europpean brand parts , reliable pressure hold , easy operation.
Adopt electrical milling with single or double facing function . Milling blade adopts high quality tooling steel , double sharpen blade can be shift using .
Heating mirror surface is coated with PTFE , independent temperature control system , and directly digital display.
Machine body main parts adopt Al-alloy material , simple structure , easy operation .
Option accessory
Stub end device
Bend clamp
Independent clamp
Pressure accumulator
Electrical pulley (over RHD800)
| Model No | RHD160 | RHD250 | RHD315 | RHD450 | RHD500 | |
| Working range(mm) | 40,50,63, 75,90,110, 125,140,160 |
75,90,110, 125,140,160, 180,200,225,250 |
90,110,125,140, 160,180,200, 225,250,280,315 |
200,225,250 280,315,355, 400,450 |
200,225,250, 280,315,355, 400,450,500 |
|
| Max temperature in heating mirror |
270°C | 270°C | 270°C | 270°C | 270°C | |
| Temperature difference in heating mirror | ±5°C | ±5°C | ±5°C | ±5°C | ±5°C | |
| Pressure working range | 0-8MPa | 0-8MPa | 0-8MPa | 0-8MPa | 0-8MPa | |
| Heating power | 1kW | 2kW | 3kW | 5.4kW | 6.6kW | |
| Milling power | 0.7kW | 1.1kW | 1.1kW | 1.5kW | 1.5kW | |
| Hydraulic station power | 0.75kW | 0.75kW | 0.75kW | 1.5kW | 1.5kW | |
| Total power | 2.45kW | 3.85kW | 4.85kW | 8.4kW | 9.6kW | |
| Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 380V/50HZ | 380V/50HZ | |
| Total weight | 90kg | 115kg | 210kg | 400kg | 500kg | |
| Dimension (mm) |
Machine body | 838x377x386 | 886x475x448 | 1016x570x575 | 1240x718x706 | 1280x765x760 |
| Tool stand | 580x344x465 | 670x670x690 | 750x635x672 | 640x780x912 | 640x796x1035 | |
| Hydraulic station | 557x318x450 | 557x318x450 | 557x318x450 | 640x318x458 | 64440x318x458 | |
| Model No | RHD630 | RHD800 | RHD1000 | RHD1200 | RHD1600 | |
| Working range(mm) | 355,400,450, 500,560,630 |
500,560, 630,710,800 |
560,630,710, 800,900,1000 |
630,710,800, 900,1000,1200 |
900,1000, 1200,1400,1600 |
|
| Max temperature in heating mirror |
270°C | 270°C | 270°C | 270°C | 270°C | |
| Temperature difference in heating mirror | ±7°C | ±7°C | ±7°C | ±7°C | ±10°C | |
| Pressure working range | 0-14MPa | 0-14MPa | 0-14MPa | 0-14MPa | 0-20MPa | |
| Heating power | 9.3kW | 12kW | 15kW | 19.8kW | 48kW | |
| Milling power | 1.5kW | 2.2kW | 3kW | 4kW | 5.5kW | |
| Hydraulic station power | 1.5kW | 2.2kW | 2.2kW | 4kW | 5.5kW | |
| Total power | 12.3kW | 16.4kW | 20.2kW | 26kW | 959kW | |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
| Total weight | 700kg | 1120kg | 2200kg | 2875kg | 5120kg | |
| Dimension (mm) |
Machine body | 1575x1130x2540 | 2020x1490x1350 | 2450x1880x1640 | 2780x2140x1875 | 3805x2175x2170 |
| Tool stand | 735x982x1220 | 1310x820x1515 | 1310x850x1815 | 1520x1035x2150 | 1065x1885x2440 | |
| Hydraulic station | 640x318x458 | 690x318x466 | 690x318x466 | 690x318x466 | 905x375x578 | |
