HM-10 BLE Bluetooth 4.0 Wireless Module With CC2541 Chip Set Height 8 Mm Width 17 Mm Weight 4 Gm Pin Count 6 Length 47
1 Piece
$4.94Product information
High-quality HM-10 BLE Bluetooth 4.0 Wireless Module With CC2541 Chip Set Height 8 Mm Width 17 Mm Weight 4 Gm Pin Count 6 Length 47 supplied by Sharvi Technologies (OPC) Private Limited. Bulk wholesale pricing is $4.94 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Pwm Output Frequency:
120hz
Adc Input Bit Depth:
14 Bit
Width:
17 Mm
Adc Input Channels:
2
Operating Frequency:
2.4ghz Ism Band
Connection Interval:
20ms
Pwm Output Channels:
4
Weight:
4 Gm
Specifications
Pwm Output Frequency:
120hz
Adc Input Bit Depth:
14 Bit
Width:
17 Mm
Adc Input Channels:
2
Operating Frequency:
2.4ghz Ism Band
Connection Interval:
20ms
Pwm Output Channels:
4
Weight:
4 Gm
Bluetooth Version:
4.0
Length:
47 Mm
Input Supply Voltage:
5v
Number Of Pins:
6
Pin Count:
6
Coverage Range:
60 Meter
Height:
8 Mm
Serial Baud Rate:
9600bps
Modulation Mode:
Gfsk
Module Role Support:
Master, Slave Mode
Brand:
Sharvi
Rssi Acquisition:
Successive Acquisition, Auto Read, And Notification To App
Trade Term:
To be discussed
Payment Term:
To be discussed
Usb Protocol:
V2.0
Io Expansion Support:
Yes
Power Indicator:
Yes
Remote Control Capability:
Yes
App Support:
Yes
Anti Hijack Password Support:
Yes
Uart Design:
Yes
Data Acquisition Capability:
Yes
Ultra Low Power Standby Mode:
Yes
At Command Support:
Yes
Built In Antenna:
Yes
Transparent Data Transmission:
Yes
Sensitivity:
≤-84dbm At 0.1% Ber
Transmitting Power:
≤4 Dbm
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2021
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

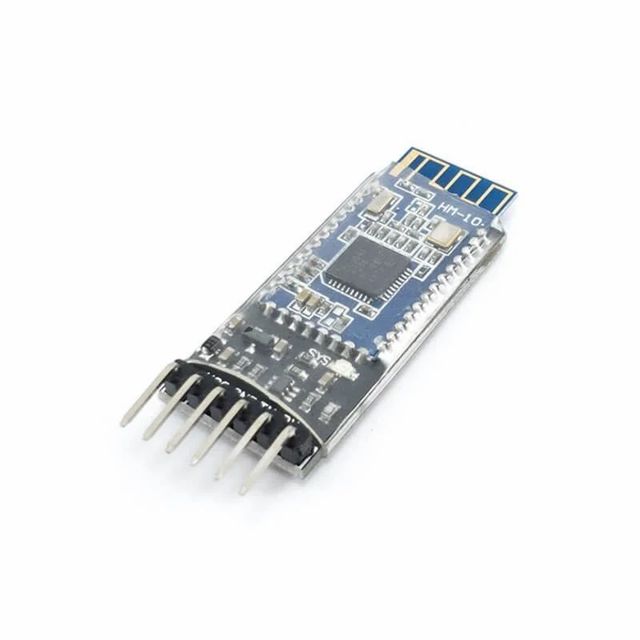

HM-10 BLE Bluetooth 4.0 Wireless Module With CC2541 Chip Set
HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module is a BLE module for an embedded system to get BLE wireless communication with BLE capable devices (e.g. Android, iPhone, and iPad). It is fully configurable by a rich and well documented AT command-set and allows transparent data communication via serial UART (default baud rate 9600bps). The Bluetooth 4.0 HM-10 is basically a breakout board for cc2541, it broke out the LED pins, RX/TX and also adding the voltage regulator that regular 5v to 3.3 v. HM-10 and HM-11 series Bluetooth module use TI CC2540 chip, configure 256KB space and support the AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use. The most complete, most convenient, and most stable Bluetooth data transmission, remote control and data acquisition module. Master-slave in one, transparent transmission, replacing the serial port. Remote control, transparent transmission, MCU is unnecessary. Remote data acquisition, transparent transmission, MCU is unnecessary.
To buy more Bluetooth Wireless Module: Click Here

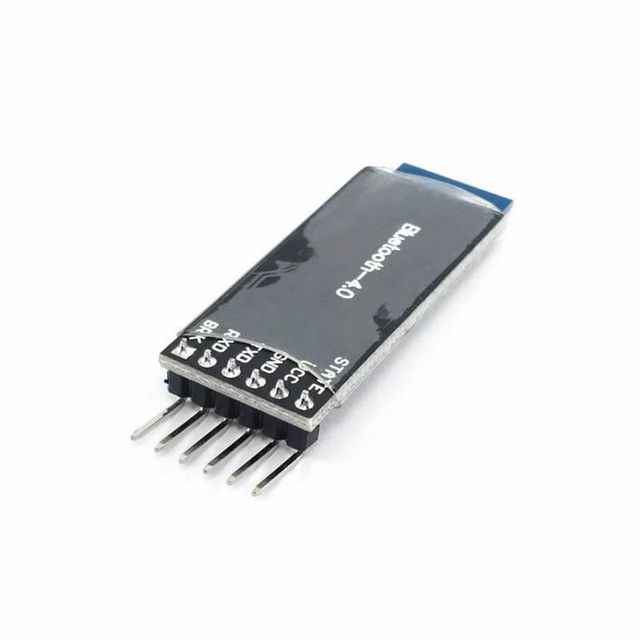

Pin Description of HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module:- STATE: state test pins, connected to an internal LED, generally keep it unconnected.
- BRK: break connect, it means breaking the Bluetooth connection, generally keep it unconnected.
- VCC: positive pole of the power source.
- GND: Ground.
- TXD: serial interface, transmitting terminal.
- RXD: serial interface, receiving terminal.
- Built-in PCB antenna.
- UART design.
- Support bridge direct-driven mode simultaneously (no need for extra CPU).
- 20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.
- Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).
- Support APP; IO expansion.
- 2 channel ADC input (14 bit).
- 4 channel PWM (120Hz) output.
- The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).
- Power indicator/alert.
- Support anti-hijack password setup, modification, and restoration.
- Ultra-low power consumption standby mode.
- Input Supply Voltage: 5V
- USB Protocol: V2.0
- Bluetooth Version: 4.0
- Operating Frequency: 2.4GHz ISM Band
- Modulation Mode : GFSK
- Transmitting Power: ≤4 dBm
- Sensitivity: ≤-84dBm at 0.1% BER
- Coverage Range: 60 Meter
- No of Pin: 6
- Length: 47 mm
- Width: 17 mm
- Height: 8 mm
- Weight: 4 gm
- 1 x HM-10 BLE Bluetooth 4.0 Wireless Module With CC2541 Chip Set
Note: Product Images are shown for illustrative purposes only and may differ from actual product.
