Hand Bag Scanner Parcel Inspection System for Small Bag Security Inspection
1 Piece
$14,0011 Piece
$14,000Product information
High-quality Hand Bag Scanner Parcel Inspection System for Small Bag Security Inspection supplied by Safeway Inspection System Limited. Bulk wholesale pricing ranges from $14,000 to $14,001 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Contrast Sensitivity:
0.5%
X Ray Steel Penetration:
18 mm
Warranty:
2 Year
Dynamic Range:
30000:1
Scanning Time:
3~10 Seconds
Wire Resolution:
40 AWG
Scanning Area:
420*300 mm
X Ray Aluminum Penetration:
60 mm
Specifications
Contrast Sensitivity:
0.5%
X Ray Steel Penetration:
18 mm
Warranty:
2 Year
Dynamic Range:
30000:1
Scanning Time:
3~10 Seconds
Wire Resolution:
40 AWG
Scanning Area:
420*300 mm
X Ray Aluminum Penetration:
60 mm
Detection Case Thickness:
70 mm
Model NO.:
AT2300
OEM:
Acceptable
Transport Package:
Accordance to The Transportation Standard.
Trademark:
Chinasafe Equipment
Trade Term:
FOB, CIF, EXW
Origin:
Guangdong, China (Mainland)
Payment Term:
LC, T/T, Western Union
Port Of Loading:
Shenzhen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Shenzhen
Certificates:
CE for Baggage Scanner, FCC, ISO14001, ISO9001, OHSAS 18001, Radiation Safety Certificate from FDA, RoHS
Product descriptions from the supplier
Product Description

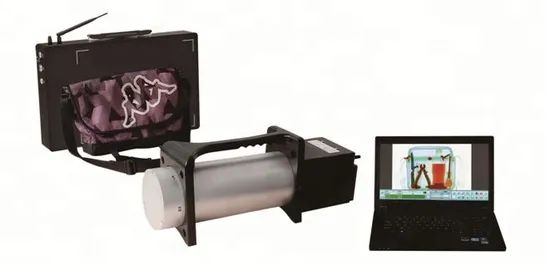

Hand Bag scanner Parcel Inspection System for Small Bag Security Inspection
Product highlights
*Relatively small dimensions and lightweight of the system*Autonomous power supply
*Complete wireless connection, can be used to remotely control*Powerful imaging software
*Friendly multilingual interface*Operators don't need massive training
To inspect an object is necessary to:- Place the X-Ray generator one side of the object, and the X-Ray imager on the other side;- Install the PC based Control and Processing Unit at a safe distance from the object;- Connect the system modules with the wireless- Set the mode of inspection and start the imaging process.A wireless communication link can be used to remotely control the source and the imaging process. In that case, thewireless connection is between PC based Control and Processing Unit and external X-Ray source controller and allowsremote control of the X-Ray generator linked to its external x ray source controller.
|
Physical Specifications |
|

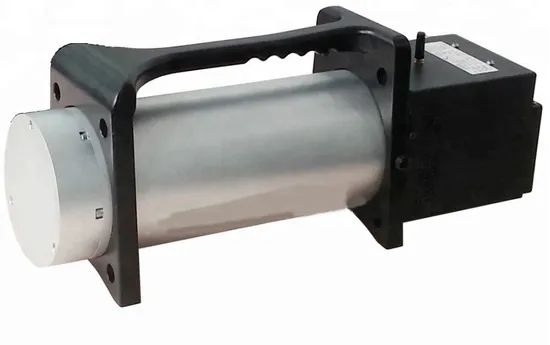

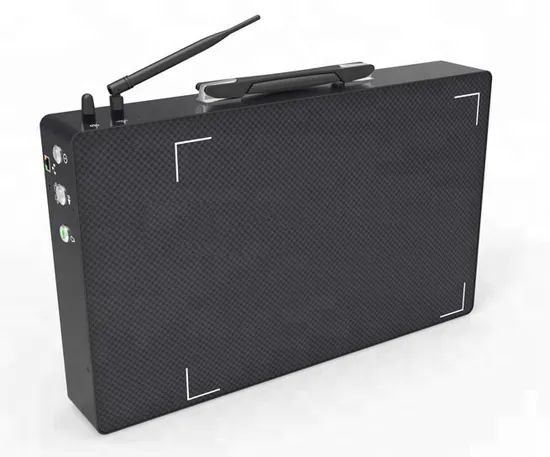

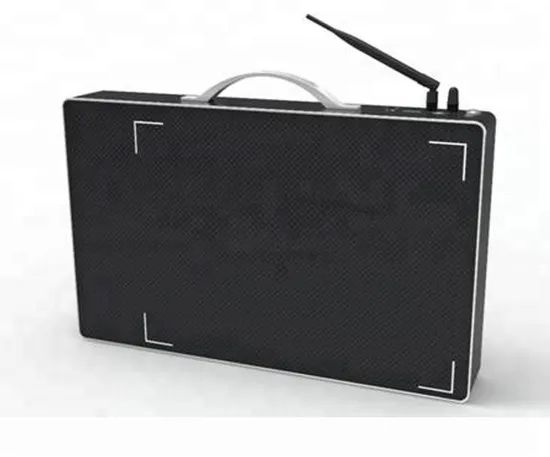

| Unit weight (kgs) | x-ray source: 13.3; detection box: 9.6 kgs |
| Unit size (mm) | x-ray source: 545(L)*185(W)*205(H); detection box: 553(L)*85(W)*376(H) |
| after packed in wooden pallet - | |
| Gross weight (kgs) | 28.5 |
| Packing size | #1: 620*223*256mm |
| #2: 640*125*454mm |
| General Specifications | |
| Penetration | 40mm alu. Plate, |
| Scanning Area | 420*300 mm |
| Wire Resolution | dia 0.0787mm copper wire (AWG40) |
| Penetration Resolution | dia 0.203mm copper wire under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | dia1.0mm,Vertical: dia1.0mm |
| Wifi transmission distance | 30m above |
| Detection box | 10W |
| Rechargable battery | no less than 6600mA |
Certifications
Company Information
Safeway Inspection System Company Limitedis the largest anti-explosive and security inspection supplier in China, among which the sellf-developed X ray baggage scanner has the biggest market share in China and the walk through metal detector has the biggest market share all over the world. It's delicated to the R&D, producing, sales of the x ray inspection equipment and all kinds of metal detector, anti-explosive articals, being the creative technology owner company of The Chinese Ministy of Public Security.
Currently, we have 460 employees, set up 5 R&D teams, including 11 Doctors and 46 masters. And self-developed many series of products like: X Ray Scanning Systems, Metal Detector, Explosive and Narcotics Detector , Dangerous Liquid Scanner, Vehicle Inspection Devices. We have total 35 models of security products have been rewarded high recognition and praises from customers at home and abroad after entering the market.
Our company regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO09000 standard and actively approaches to international first class products.
Case List
Safeway Systemoffers comprehensive security solutions and full service for both domestic and international big events to guarantee their smooth conducting.
These events include but are not limited to: the 2008 Beijing Olympic Games, the 2009 National Day Celebration of the 60th Anniversary of the PRC China, the 2010 Shanghai Expo and Guangzhou Asian Games, the 2010 CHINA-EURASIA EXPO, the 2011 Shenzhen Universiade, the 2013 Shenyang National Games, the Africa World Cup, and the Qingdao Olympic Games.
Safeway Systemhas shown the world China's high-tech security products, while thousands sets of equipment and services are being delivered to venues, media centers and logistic warehouses.
