Handheld Metal Coating Thickness Gauge Measuring Instrument
1-99 Piece
$94.4100 Piece
$76.7Product information
High-quality Handheld Metal Coating Thickness Gauge Measuring Instrument supplied by Shenzhen Yowexa Measurement Technology Co., Ltd.. Bulk wholesale pricing ranges from $76.7 to $94.4 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Resolution:
0.1μm(0~100um) ; 1um(>100um)
Range:
0~2000um
Specification:
102*53.6*25mm
Precision:
3%+1um
Accuracy:
A
Material:
ABS
Certification:
CE, ISO
Transport Package:
Carton
Specifications
Resolution:
0.1μm(0~100um) ; 1um(>100um)
Range:
0~2000um
Specification:
102*53.6*25mm
Precision:
3%+1um
Accuracy:
A
Material:
ABS
Certification:
CE, ISO
Transport Package:
Carton
Origin:
China
Model NO.:
EC-555
Trade Term:
FOB, CIF, EXW
Measurement Object:
Fe/Nfe
Measure Method:
Fe: Magnetic Induction ; Nfe: Eddy Currents
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Precision Measuring Device:
Precision Measuring Device
Trademark:
YOWEXA
Port Of Loading:
shenzhen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-04-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
shenzhen
Certificates:
calibration report for coating thickness gauge, calibration report for dwl-20e, calibration report for gsm-20e temperature humidity with sms alarm, calibration report for ssn-22 usb temperature humidity data logger, ce for pdf data logger, ce for ssn series data loggers, coating thickness gauges CE, data loggers CE, data loggers patent, FCC for coating thickness gauge, rohs for coating thickness gauges, rohs for data logger series, rohs for dwl/gsm series data loggers, single use pdf temperature data logger CE
Product descriptions from the supplier
Handheld Metal Coating Thickness Gauge Measuring Instrument
Product Description

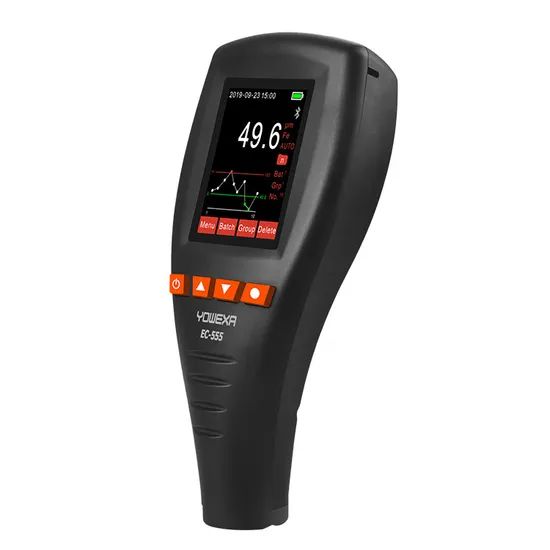

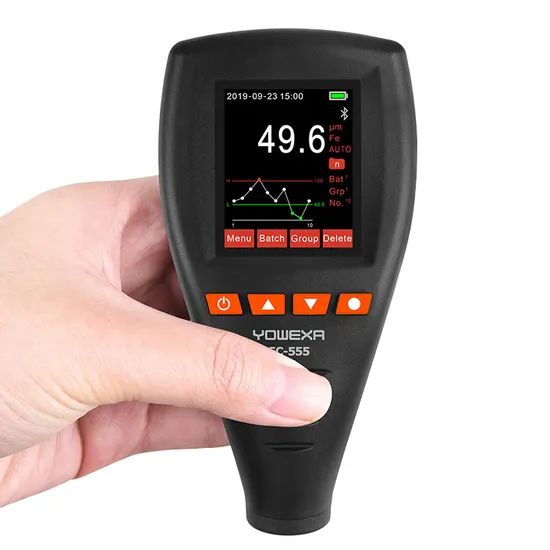

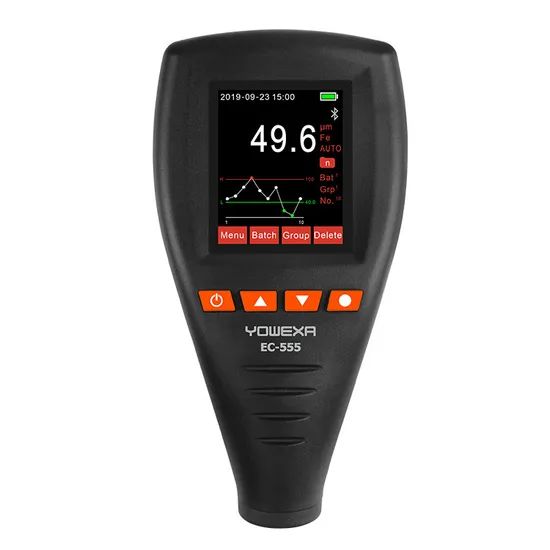

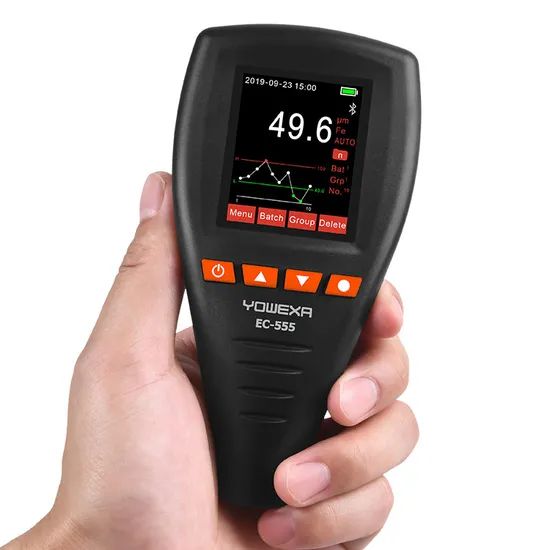

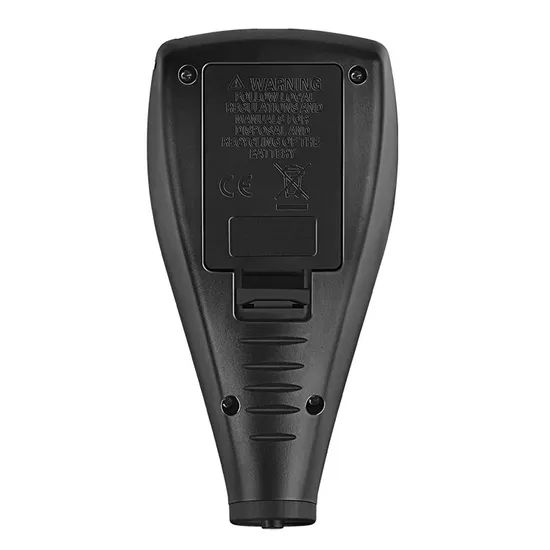

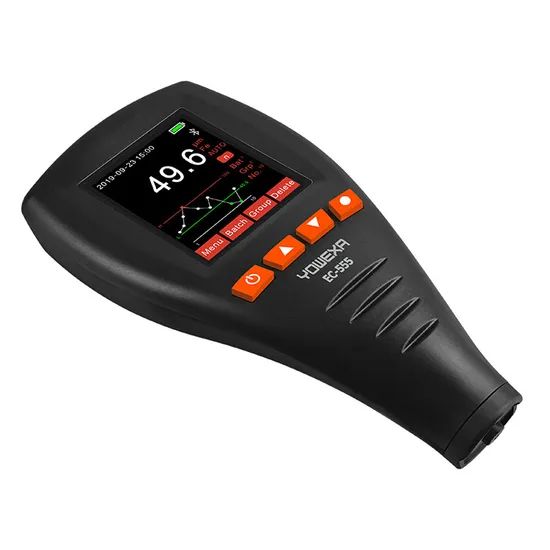

EC-555 Handheld Metal Coating Thickness Gauge Measuring Instrument
DESCRIPTION:
The EC-555 series thickness gauge is applied to measure the thickness of non-conductive coatings on metal surfaces non-destructively, as well as the thickness of non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel and cobalt). Specific applications are including the measuring of the thickness of iron, stainless steel surface paint or galvanized coating, aluminum, copper surface paint or plastic film, etc.
|
FEATURES: |
APPLICATION: |
| Model | EC-555 | EC-555S | EC-555E | EC-555SE |
| Probe type | Internal probe | External probe | External separated probe | |
| Measuring principle | Fe: Magnetic induction ; NFe: Eddy currents | |||
| Measuring range | 0~2000μm | |||
| Accuracy | ±(3%+1μm) | ±(2%+1μm) | ±(3%+1μm) | ±(2%+1μm) |
| Resolution | 0.1μm(0~100μm) ; 1μm(>100μm) | |||
| Unit | μm, mm, mils, inch | |||
| Calibration | Zero calibration ; Multi-point calibration | |||
| Statistic | Number of data, maximum, minimum, mean, sample standard deviation, coefficient of variation, number below limit, number above limit | |||
| Chart | Curve, bar chart or trend chart | |||
| Readings memory | 10X13X10 measurement data | |||
| Probe trigger mode | Mechanical trigger, trigger force: 0.4~0.8N | |||
| Minimum curvature radius | Convex 5mm ; Concave 25mm | |||
| Minimum measuring area | Diameter 15mm | |||
| Minimum thickness of substrate | Fe: 0.30mm | Fe: 0.20mm | Fe: 0.30mm | Fe: 0.20mm |
| NFe: 0.05mm | NFe: 0.03mm | NFe: 0.05mm | NFe: 0.03mm | |
| Maximum measuring rate | 2 readings / s | |||
| Display | 2 inch color screen | |||
| Bluetooth & APP | Support | |||
| Operation environment | Temperature: -10~50°C; Humidity: 20~90%RH (Non-condensing) | |||
| Storage environment | Temperature: -20~60°C ; Humidity: 20~90%RH (Non-condensing) | |||
| Power supply | 3 pcs 1.5V AAA alkaline batteries ; 3 pcs 1.2V AAA rechargeable batteries | |||
| Protection class | IP40 | |||
| Size | 133X68X30mm | Housing: 133X68X30mm ; Cable: Φ3.5X1000mm | ||
| Probe: Φ17X67mm | ||||
| Case material | ABS | Housing: ABS ; Probe: stainless steel | ||
| Weight | About 90g (No battery) | About 145g (No battery) | ||
| Standards / Certificates | CE, ROHS, ISO 2178, 2360, GB / T 4956-2003, 4957-2003, JJG-818-2005 | |||
| Warranty | 12 months | |||
Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.
Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.
Q. What is your terms of payment?
A. 100% for small orders. 30% in advance as deposit and 70% balance before the delivery.
Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.
