Hbc110 Series CNC Horizontal Boring Machine Origin China Condition New Trademark ZHMAC Model NO. HBC110A Application Metal
Piece
Negotiable
Product information
High-quality Hbc110 Series CNC Horizontal Boring Machine Origin China Condition New Trademark ZHMAC Model NO. HBC110A Application Metal supplied by Nantong Zongheng Machinery Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.02~0.03(mm)
Package Gross Weight:
30000.000kg
Specification:
30T
Package Size:
750.00cm * 780.00cm * 510.00cm
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Processing Precision:
0.02~0.03(mm)
Package Gross Weight:
30000.000kg
Specification:
30T
Package Size:
750.00cm * 780.00cm * 510.00cm
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Control Method:
Closed-Loop Control
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Movement Method:
Contour Control
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HBC110A
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools
Condition:
New
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box
Trademark:
ZHMAC
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-03-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
14
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
Certificates
Product descriptions from the supplier
Product Description
Product Features
High Torque
Maximum spindle torque output reaches 2838 N·m, the highest among products of the same category.

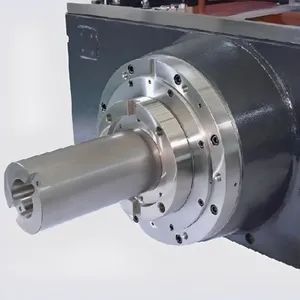

The nose-type spindle head enables close proximity to workpieces during machining, ideal for heavy-duty cutting.
The rotary worktable comes standard with a load capacity of 8000 kg, with optional load capacities ranging from 10,000 kg to 25,000 kg.
The Z-axis can continuously withstand an axial load of 2000 kgf, ensuring high torque and high rotational speed deliver exceptional cutting force.
The nose-type spindle head enables close proximity to workpieces during machining, ideal for heavy-duty cutting.
The rotary worktable comes standard with a load capacity of 8000 kg, with optional load capacities ranging from 10,000 kg to 25,000 kg.
The Z-axis can continuously withstand an axial load of 2000 kgf, ensuring high torque and high rotational speed deliver exceptional cutting force.
High Precision
The spindle bearings adopt circulating oil cooling, combined with an oil pipe sheath cooling design around the spindle to prevent thermal displacement.
The spindle motor flange is equipped with an oil pipe sheath cooling system.
The spindle undergoes special nitriding treatment, ensuring no wear even after long-term operation.
The X/Y-axis ball screws are directly coupled to the motors for drive transmission.
The spindle motor flange is equipped with an oil pipe sheath cooling system.
The spindle undergoes special nitriding treatment, ensuring no wear even after long-term operation.
The X/Y-axis ball screws are directly coupled to the motors for drive transmission.
High Rigidit
The cast structure is made of high-grade cast iron with excellent stability and vibration resistance, featuring an arch-shaped high-rigidity design.
The column's bending and torsion resistance has been increased by 1.7 times, enabling stable machining even at the top end of the Y-axis travel.
The combination of the spindle (subjected to nitriding and cryogenic treatment at -190℃) and high-precision, high-rigidity spindle bearings ensures the machine maintains optimal performance over the long term.
The column's bending and torsion resistance has been increased by 1.7 times, enabling stable machining even at the top end of the Y-axis travel.
The combination of the spindle (subjected to nitriding and cryogenic treatment at -190℃) and high-precision, high-rigidity spindle bearings ensures the machine maintains optimal performance over the long term.
Specification
Project | UNIT | HBC110A | HBC110B | HBC130A | HBC130B | |
Processing Scope (X/Y/Z axes can be extended as needed) | X-axis travel | mm | 2000 | 3000 | 2000 | 3000 |
Y-axis travel | mm | 2000 | ||||
Z-axis travel | mm | 1500 | ||||
W-axis dia./spindle travel | mm | 110/500 | 130/700 | |||
Spindle center to table | mm | 50-2050 | ||||
Spindle face to table center | mm | 100-2100 | 0-2160 | |||
Guideway | - | Three-axis hard rail (optional: three-axis linear guide) | ||||
Rotary Table | Table size | mm | 1400×1600 | |||
Table load capacity | kg | 8000 | ||||
Min division degree | ° | 0.001° | ||||
T-groove (width×spacing) | mm | 24×160 | ||||
Spindle | Transmission mode | - | Full gear | |||
Max speed | rpm | 2500 | ||||
Spindle power | kW | 22/26 | ||||
Max spindle torque | N·m | 2600 | 2937 | |||
Spindle taper/pull pin | - | BT50-45° | ||||
Drive Feed | X/Y/Z/W-axis rapid feed rate | m/min | 10/10/10/4 | |||
B-axis rapid rotation | r/min | 1 | ||||
X/Y/Z/W-axis cutting feed rate | m/min | 6/6/6/2 | ||||
Min resolution | mm | 0.001 | ||||
Accuracy (Standard: GB/T19362.1-2003) | Positioning accuracy (X/Y/Z/W) | mm | 0.02/0.02/0.02/0.015 | 0.03/0.02/0.02/0.02 | |||
Repeatability (X/Y/Z/W) | mm | 0.015/0.015/0.015/0.012 | 0.02/0.015/0.015/0.015 | ||||
B-axis positioning accuracy | " | 12 | ||||
B-axis repeatability | " | 8 | ||||
Others | Tool storage (optional) | - | 40/60 | |||
Power requirement | kW | 75 | ||||
Machine height | mm | 5100 | ||||
Floor area (length×width) | mm | 7500×7800 | 8500×7800 | 7500×7800 | 8500×7800 | |
Machine weight (approx.) | kg | 28000 | 32000 | 30000 | 34000 | |
Nantong Zongheng Machinery Co.,Ltd is located in Nantong City,Jiangsu Province, alarge-scale machine tool manufacturing enterprise in East China. The main products of com-pany are gantry machining center, vertical machining center, CNC lathe, surface grinder, verti-.cal knee type miling machine, turret universal rocker milling machine, etc. Products are_widelyused in mould manufacturing, auto parts, wind power, nuclear power,ocean ships aerospace, college teaching feldsand etc. We don't only enjoy best-sellingin domestic market.but also export to Southeast Asia, the Middle East, Brazil, india, Africa, Europe, the Unitedstates and some other countries and regions.
Adhering to the corporate spirit of "Manufacture with Excellence, Pursue Superiority", the company has always regarded technological innovation as the driving force for sustainable development and placed user service in a prominent position. With leading technological innovation capabilities and strong brand influence, the company is committed to becoming a globally competitive machine tool manufacturing and service provider. In the process of continuous advancement and development, the company adheres to the mission of becoming process consultants for users and the backbone of the equipment manufacturing industry. It strives for innovative development, contributes to society, and wholeheartedly serves all sectors of society.
Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Adhering to the corporate spirit of "Manufacture with Excellence, Pursue Superiority", the company has always regarded technological innovation as the driving force for sustainable development and placed user service in a prominent position. With leading technological innovation capabilities and strong brand influence, the company is committed to becoming a globally competitive machine tool manufacturing and service provider. In the process of continuous advancement and development, the company adheres to the mission of becoming process consultants for users and the backbone of the equipment manufacturing industry. It strives for innovative development, contributes to society, and wholeheartedly serves all sectors of society.
Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
Welcome your inquiry!
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
Welcome your inquiry!
